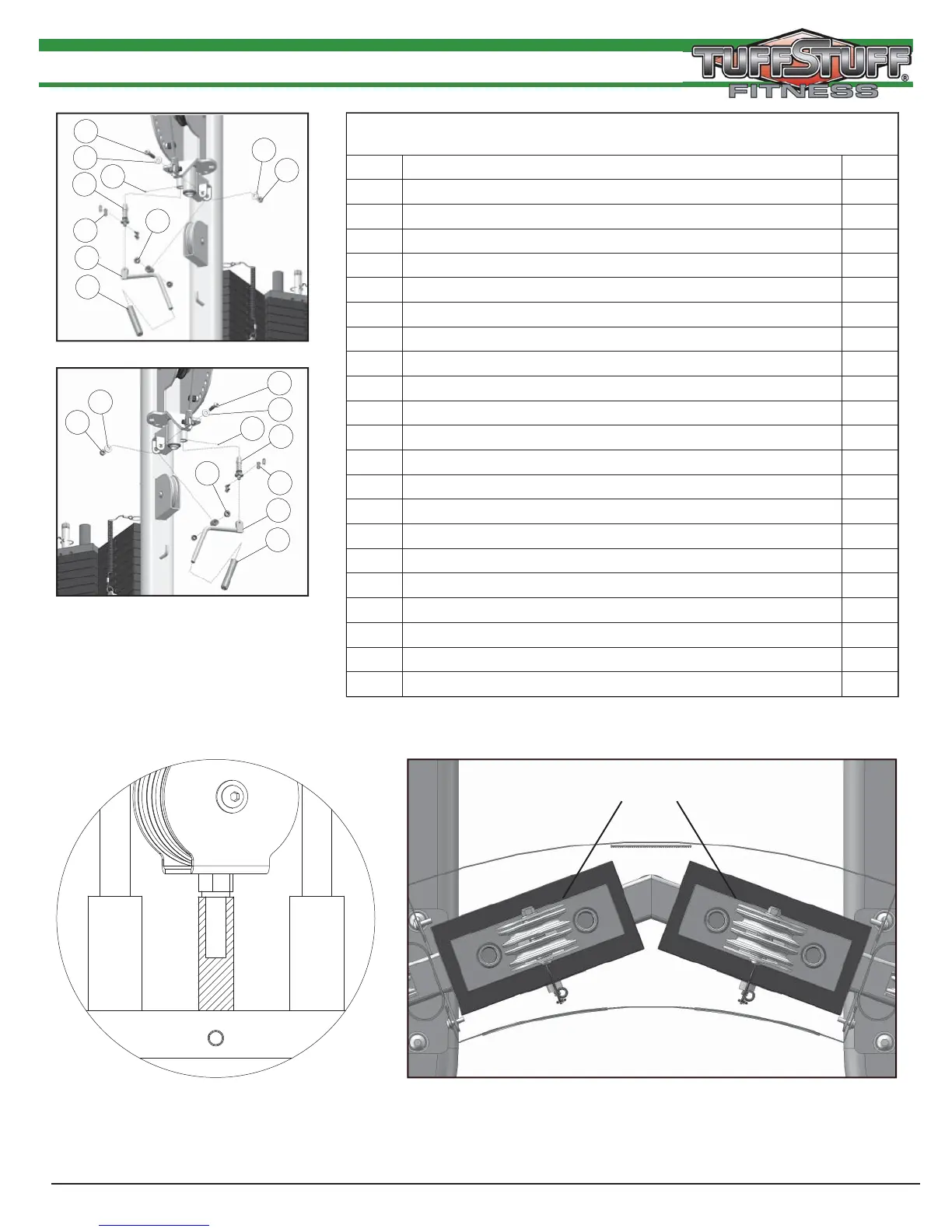

MFT-2700 Multi-Funtional Trainer
Assembly List
Item # Description Qty.
2 BOTTOM RELEASE HANDLE 2
7 GUIDE ROD 3/4 X 52 3/8 4
15 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 2
16 TOP PLATE DOUBLE PULLEY BRACKET 2
18 10 LB STEEL WEIGHT PLATE BLACK 4 9/16 X 9 7/16 38
19 10 LB TOP PLATE W/ADJ SLTR BAR 19 BLK WTS ASSY 2
22 ALUMINUM PULLEY 3/8 X 1 X 3 1/2 4
26 BLACK RUBBER GRIP 1/2 X 4 2
29 BRONZE FLANGED BUSHING 3/8 X 1/2 X 1/2 X 11/16 X 1/16 4
33 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 4
34 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 3/4 4
35 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 2 3/4 2
40 FINISHED HEX NUT B/O 1/2-13 2
45 FLAT WASHER SAE Z/P 3/8” 12
74 NYLON INSERT JAM LOCK NUT GR-8 Z/P 3/8-16 4
80 PULL PIN ASSY 3 1/2 CUSTOM CUT HRD SPRING 2
82 RUBBER DONUT 3/4 X 2 1/2 4
84 SINGLE STRAND CONNECTING LINK #40 2
86 SOCKET SET SCREW Z/P 10-32 X 1/8 2
88 SPLIT LOCK WASHER Z/P 1/2” 2
89 SPLIT LOCK WASHER Z/P 3/8” 4
13
NOTE:
1. FULLY SCREW TOP PLATE DOUBLE PULLEY BRACKET (#16) FOR PROPER INSTALLATION AT POSITION
SHOWN ABOVE.
80
34
45
84
2
26
29
45
86
74
80
34
45
84
2
26
29
45
86
74
80
34
45
84
2
26
29
45
86
74
FIG A
FIG B
PROPER POSITION
