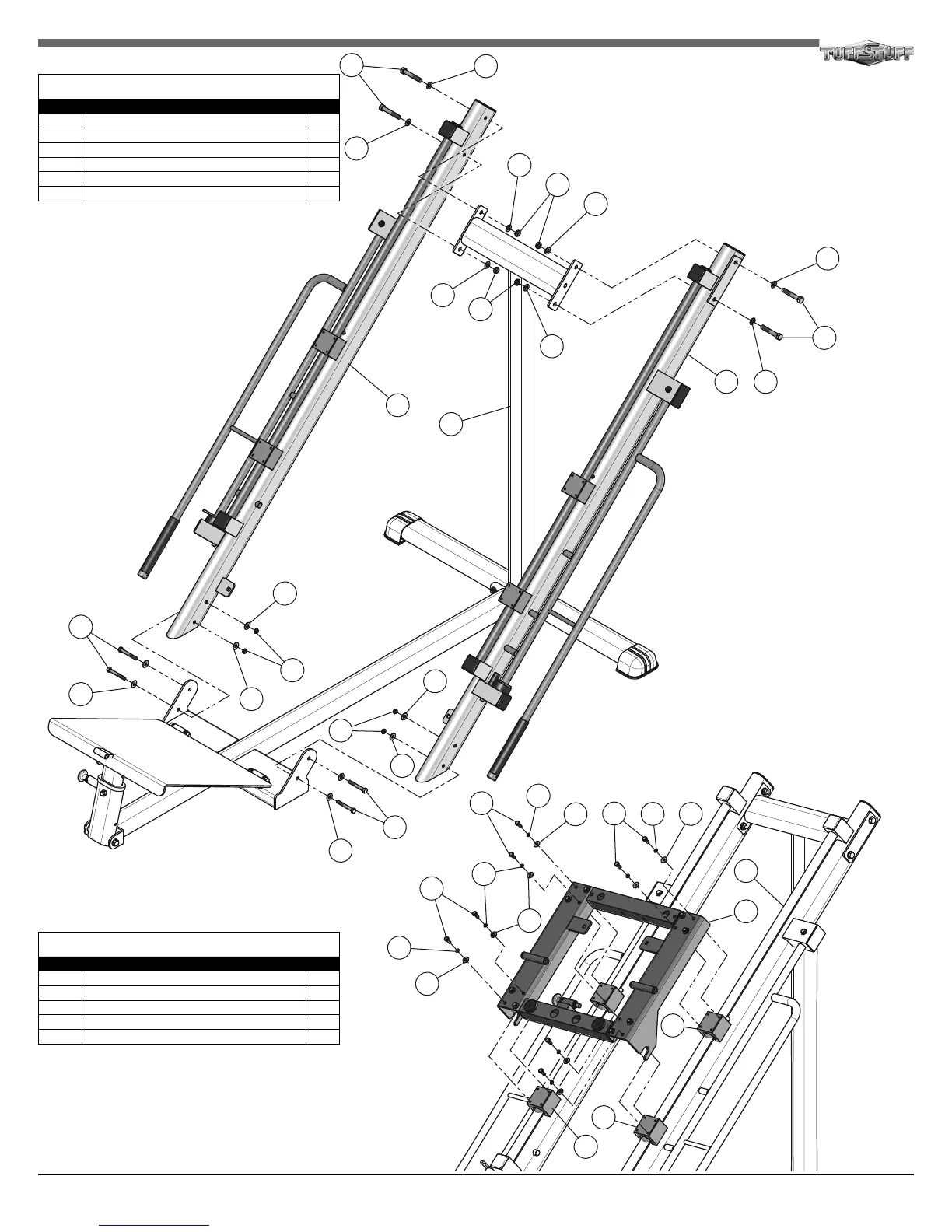

TuffStuff RLP-200 - Step 3 & 4 Assembly

35
46
35
16
35
56
35
35
56
35
15
11 35
46
35
35
56
35
35
56
35
45
35
35
45
36
70
50
36
70
50
36
70
50
36
70
5
25
25
25
56
5RLP-200 Leg Press / Hack Squat
Step 3 Assembly List
Item # Description Qty.
11 LEFT SIDE FRAME RAIL 1
16 RIGHT SIDE FRAME RAIL 1
35 FLAT WASHER SAE 3/8” 16
45 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 4
46 HEX HEAD CAP SCREW 3/8-16 X 3 4
56 NYLON INSERT JAM LOCK NUT 3/8-16 8
Step 4 Assembly List
Item # Description Qty.
5 CARRIAGE 1
25 ALUMINUM PILLOW BLOCK BEARING 4
36 FLAT WASHER USS 5/16” 16
50 HEX HEAD CAP SCREW 5/16-18 X 5/8 16
70 SPLIT LOCK WASHER 5/16” 16
