TuffStuff SPT-6X - Page 15

4
10
53
48
65
48
53
63
65
5
4
10
53
48
65
48
53
63
65
5

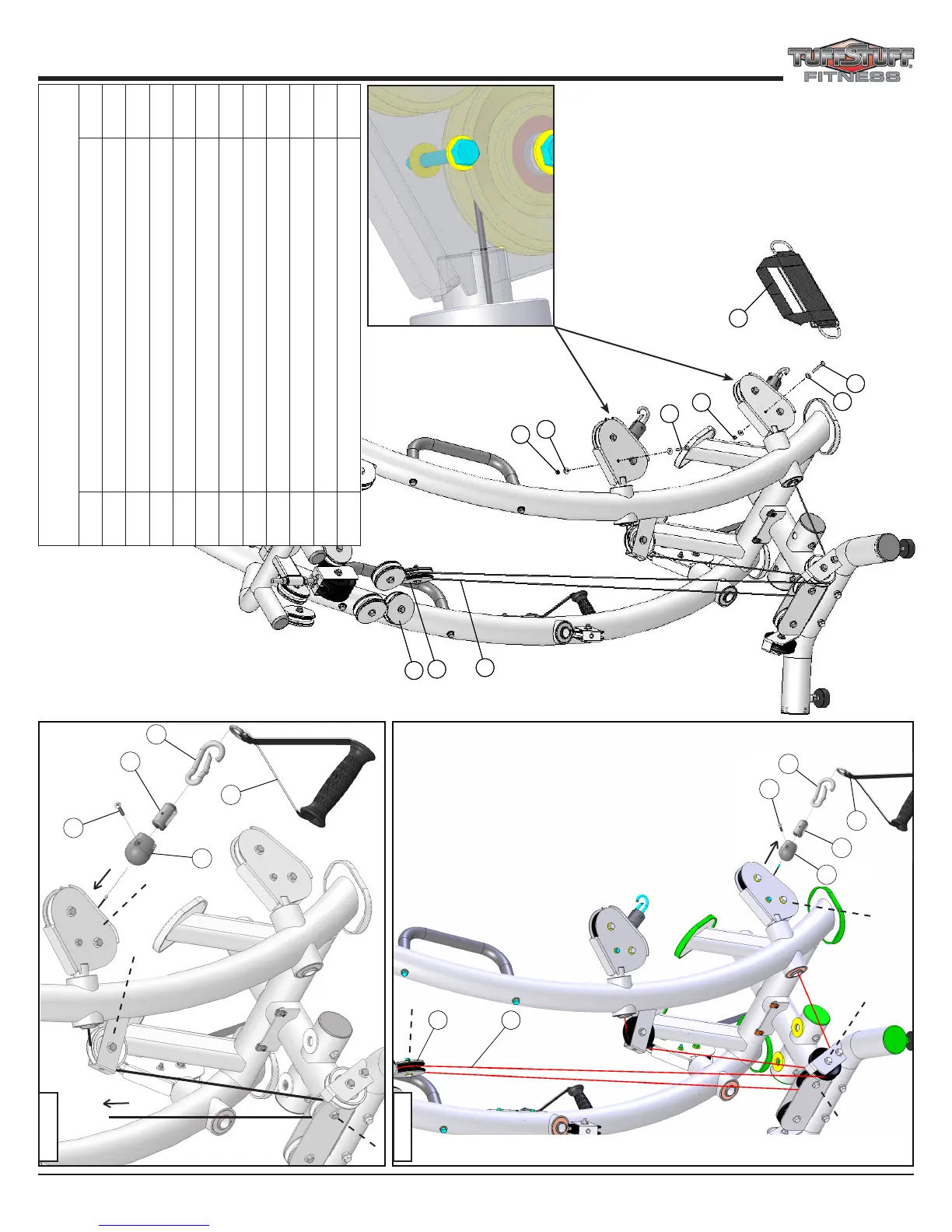

Assembly List
Item # Description Qty.
4 DOUBLE FLOATING PULLEY BRACKET LT 1
10 LOW ROW CABLE 1 45 Oval Head Phillips Screw #10-32 X 1 1/8 2 48 FLAT WASHER SAE B/O 1/4” 4 51 Cable Stopper Shell 1 1/2 x 1 3/4 2 53 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 1 3/4 2 63 NYLON ANKLE STRAP 1 64 CONTOUR ERGO HANDLE LONG STRAP 2 65 NYLON INSERT LOCK NUT B/O 1/4-20 2 81 SNAP LINK Z/P 8MM X 80MM 2 86 7/8 Rd X 1 5/8 Link 1/8 Cable 2
NOTES: 1. SOME PARTS NOT SHOWN FOR CLARITY
81
86
51
79
64
81
86
51
79
64
A
B
C
STEP 1
79
51
86
81
4
10
64
79
51
86
81
4
10
64
D
E
C
F
STEP 2
15SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Step 11 (Low Row Cable Routing)
81
86
45
51
51
86
64
81
45
64
