TuffStuff SPT-6X - Page 17

49
85
59
6
49
85
59
66
52
3
15
16
47
47
83
6
83
6

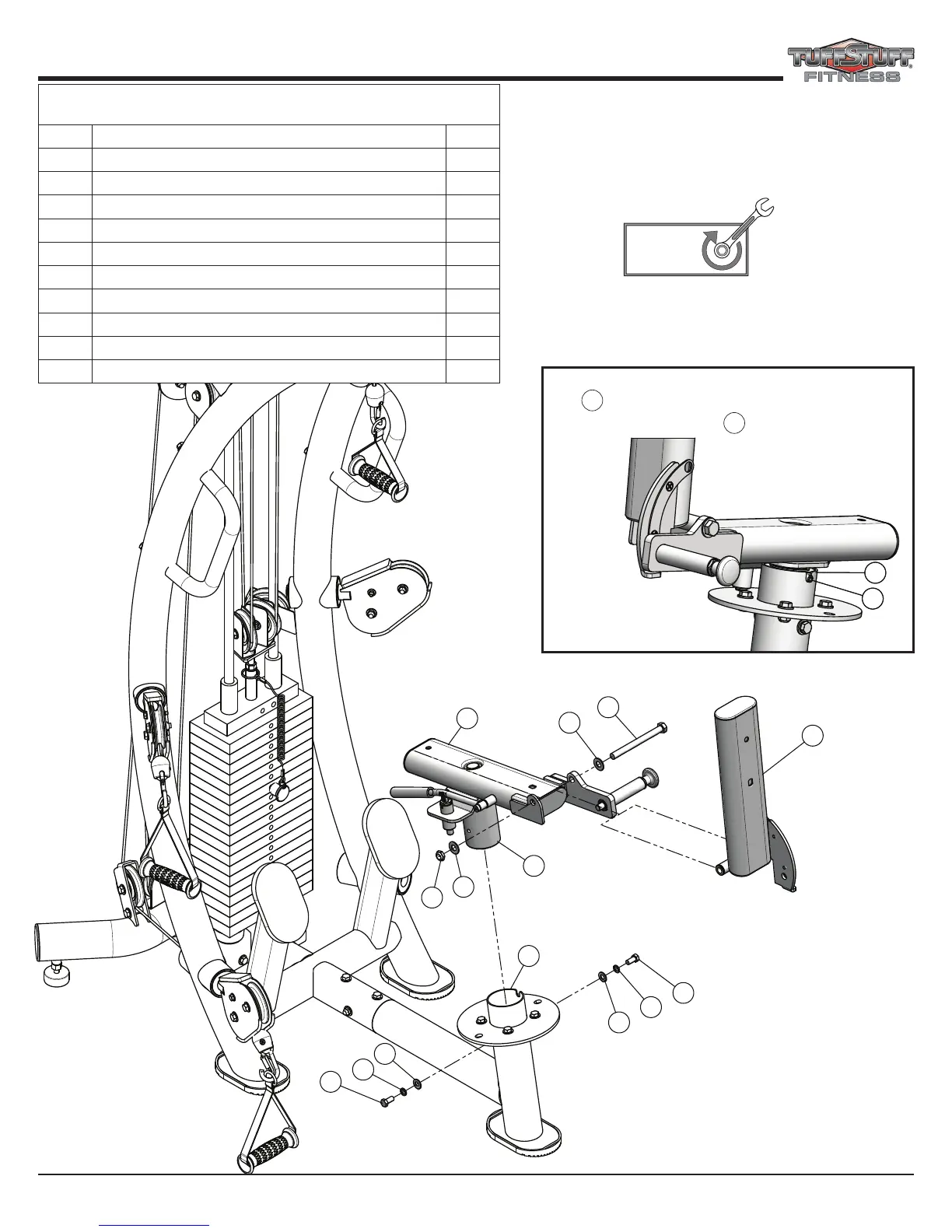

MAKE SURE THE SOCKET SET 3/8-16 X
1/2
83
IS LOCKED ON THE NOTCH OF
THE MAIN FRAME
6
.
Assembly List
Item # Description Qty.
3 BACK PAD FRAME 1
15 SEAT BEARING HOUSING 1
16 SEAT FRAME 1
47 FLAT WASHER SAE B/O 1/2” 2
49 FLAT WASHER SAE B/O 3/8” 2
52 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 5 1/2 1
59 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3/4 2
66 NYLON INSERT THIN LOCK NUT B/O 1/2-13 1
83 SOCKET SET SCREW ALLOY 3/8-16 X 1/2 1
85 SPLIT LOCK WASHER B/O 3/8” 2
100%
Fully Tighten
Wrench tighten all hardware in this step.
17SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Step 13
