TuffStuff SPT-6X - Page 6

68
4
49
67
49
57
49
67
1
49
56
49
56
49
49
5
67
49
68
69
56
49
23
23
21
21
69
49
67
67
49
69
49
56
49
67
68
68

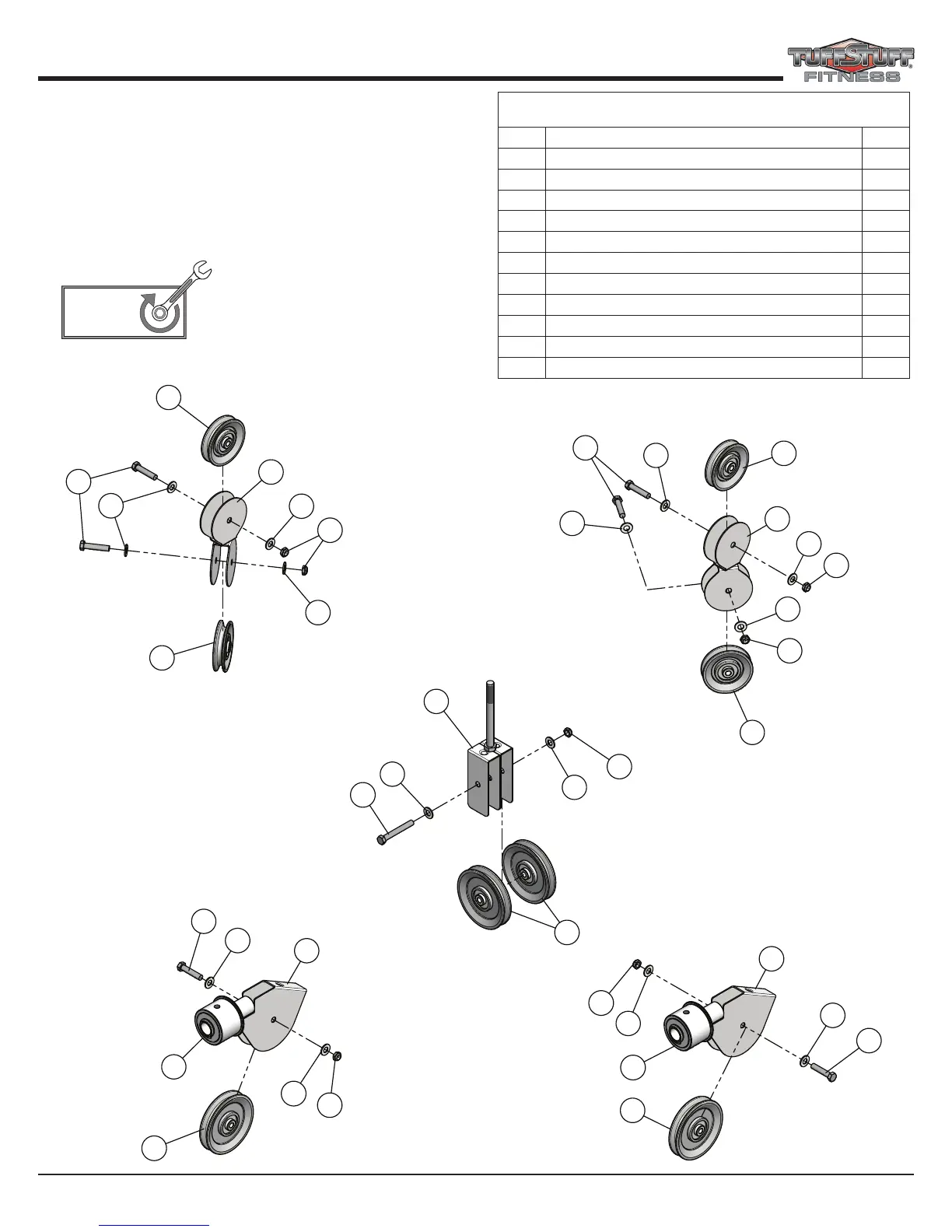

Assembly List
Item # Description Qty.
1 ADJUSTABLE DOUBLE PULLEY BRACKET 1
4 DOUBLE FLOATING PULLEY BRACKET LT 1
5 DOUBLE FLOATING PULLEY BRACKET RT 1
21 TOP BEARING HOUSING 2
23 TOP SWIVEL PULLEY BRACKET 2
49 FLAT WASHER SAE B/O 3/8” 14
56 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 6
57 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 7
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 4
69 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK 4
100%
Fully Tighten
Wrench tighten all hardware in this step.
6 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Step 2
