use 6AWG or thicker wire for safety and efficiency.
NOTE 4: The selections for color of wires should be followed by the local electrical laws and
regulations.
5) Remove the terminal block cover on the rear panel of UPS. Then connect the wires according to the
following terminal block diagrams: (Connect the earth wire first when making wire connection. Disconnect
the earth wire last when making wire disconnection!)

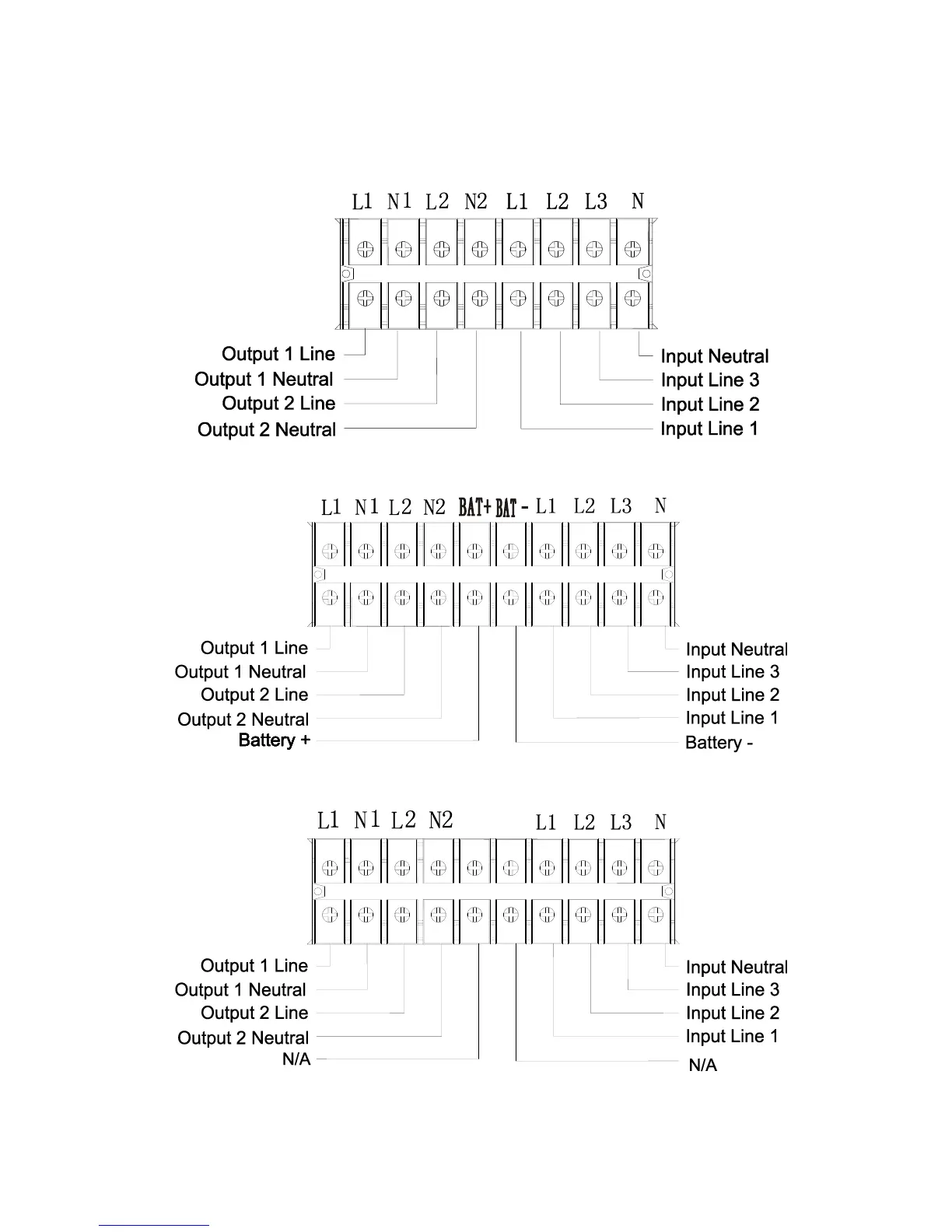

Terminal Block wiring diagram of 10K/10KL
Terminal Block wiring diagram of 15KL/20KL
Terminal Block wiring diagram of 15K/20K
