Tuncmatik NEWTECH PRO - Lcd Setting

20
DIS
Disable
ATO
Auto
BAT
Battery
NCF
Normal mode (not CVCF mode)
CF
CVCF mode
SUB
Subtract
ADD
Add
ON
On
OFF
Off
FBD
Not allowed
OPN
Allow
RES
Reserved
N.L
Neutral line loss
CHE
Check
OP.V
Output voltage
PAR
Parallel, 001 means the first UPS

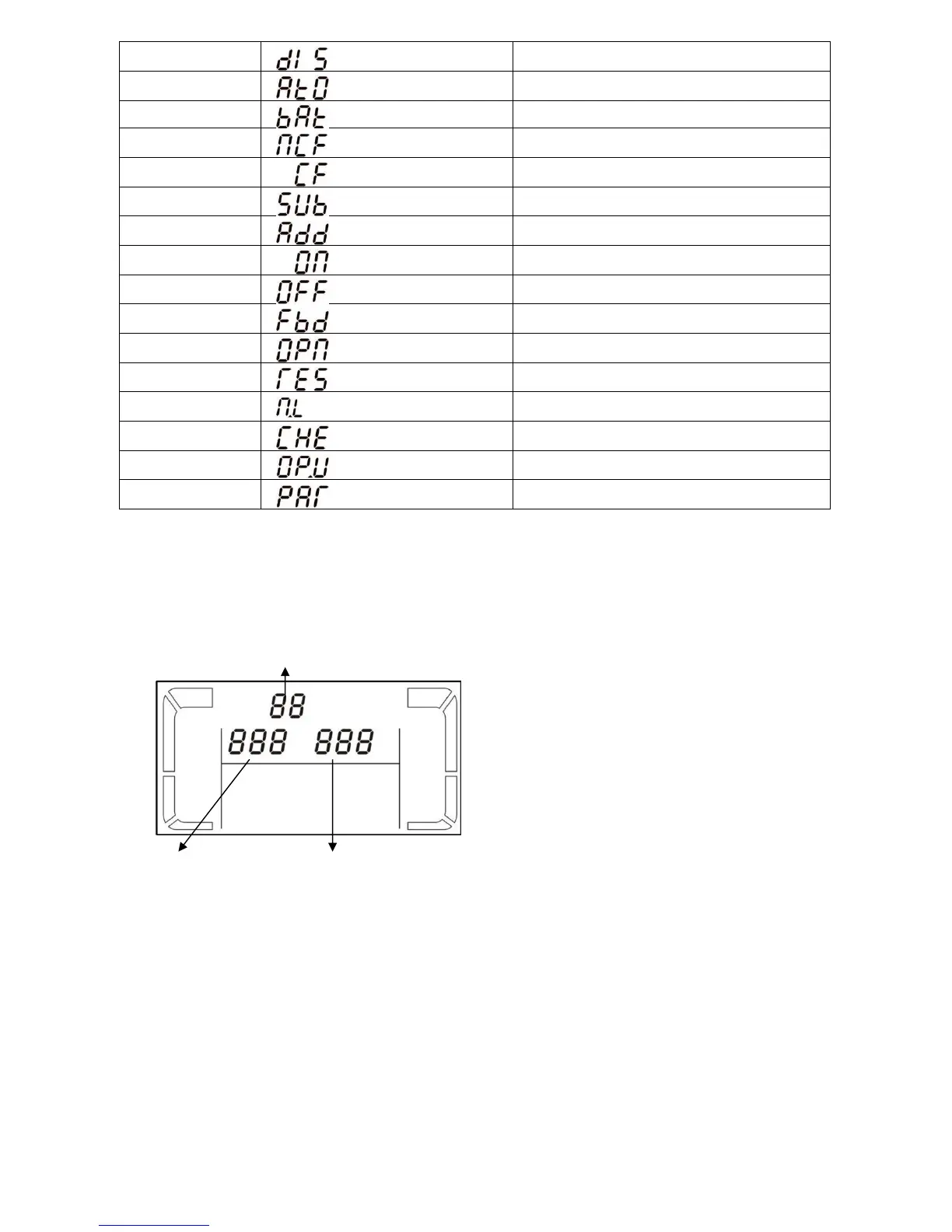

3-7. LCD Setting
There are three parameters to set up the UPS. Refer to following diagram.
Parameter 1: It’s for program alternatives. Refer
to below table.
Parameter 2 and parameter 3 are the setting
options or values for each program.
Note: The following order of setting code only presents when UPS is in Bypass Mode or no-output mode.
The setting code number will change the numbers under other modes. For example, when the UPS is in AC
mode, the total available setting becomes 7 only. Then, setting code of “Bypass mode setting” will become
01, “Battery backup time setting” will become 02, and so on.
Parameter 1
Parameter 2
Parameter 3
