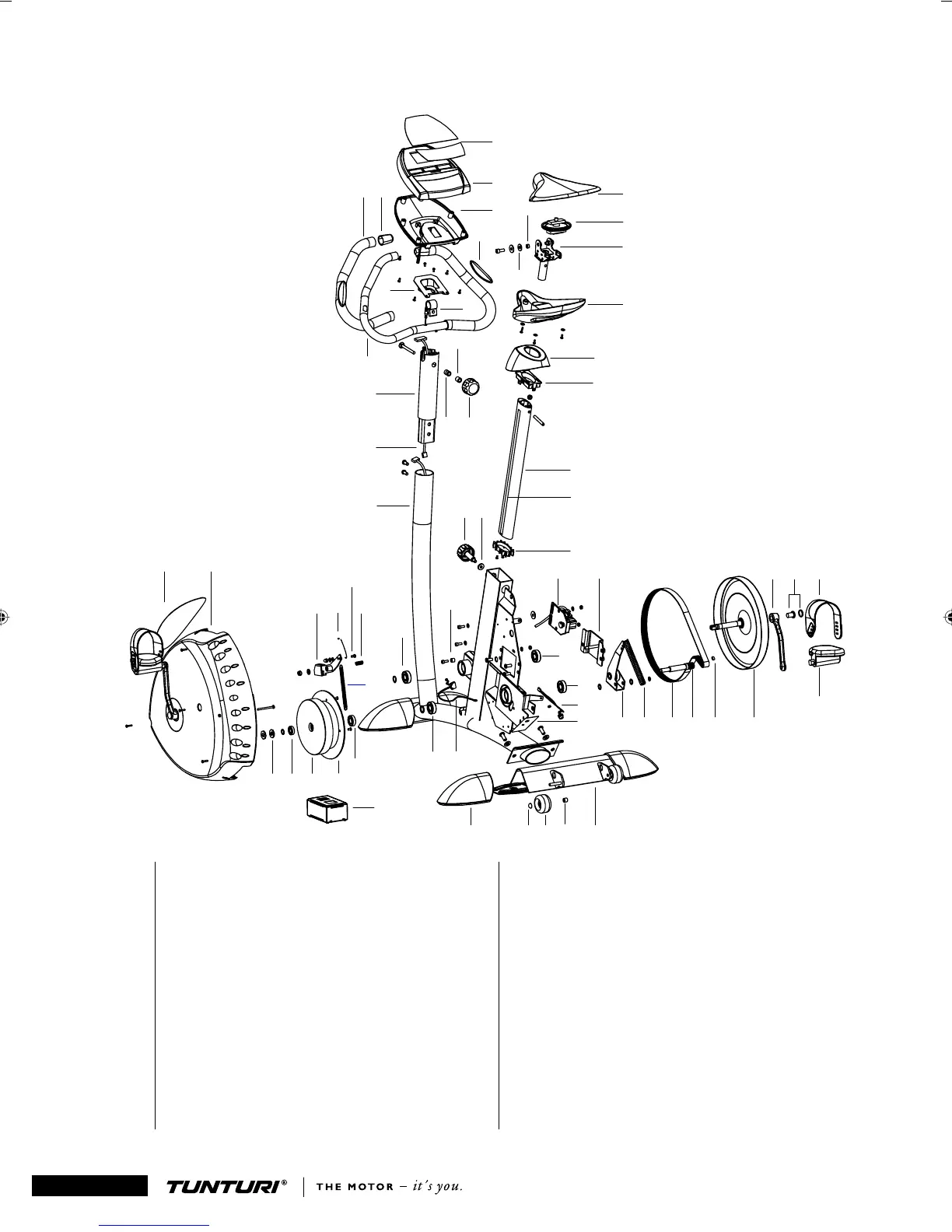

Tunturi E4 - Page 71

72
1 233 1053 Meter, (incl. 8, 9) 1
2 403 1084 Pulse grip unit 1
- 4,2x16 DIN 7504 Screw 2
3 533 7039 Handlebar plug 2
5 213 1007 Handle grip (incl. 3) 2
6 103 1047 Meter bracket 1
- M5x12 DIN 7985 Screw 2
7 203 1038 Handle bar (incl. 2, 5, 94) 1
8 423 1110 Membrane 1
9 173 1065 Meter lower cover 1
- M3x8 DIN 7504 M Screw 6
13 403 1079 Cable set (incl. 13a,13b, 13g) 1
13c 403 1026 RPM-magnet 1
17 103 1049 Frame 1
18 533 1050 Stand plug 4
19 423 1106 Label set 1
20 173 1064 Side cover, LH and RH. 2
- KB40x20 WN-1411 PT-Screw 4
22 653 1017 Nut 2
- 12x18x0,5 DIN 988 Washer 1
24 303 1015 Flywheel 1
- 17x24x1,5 DIN 988 Washer 1
25 433 1013 Aluminium circle 1
- M5x10 DIN 7991 Screw 4
27 373 1026 Brake lever 1
- M8 DIN 125 Washer 1
