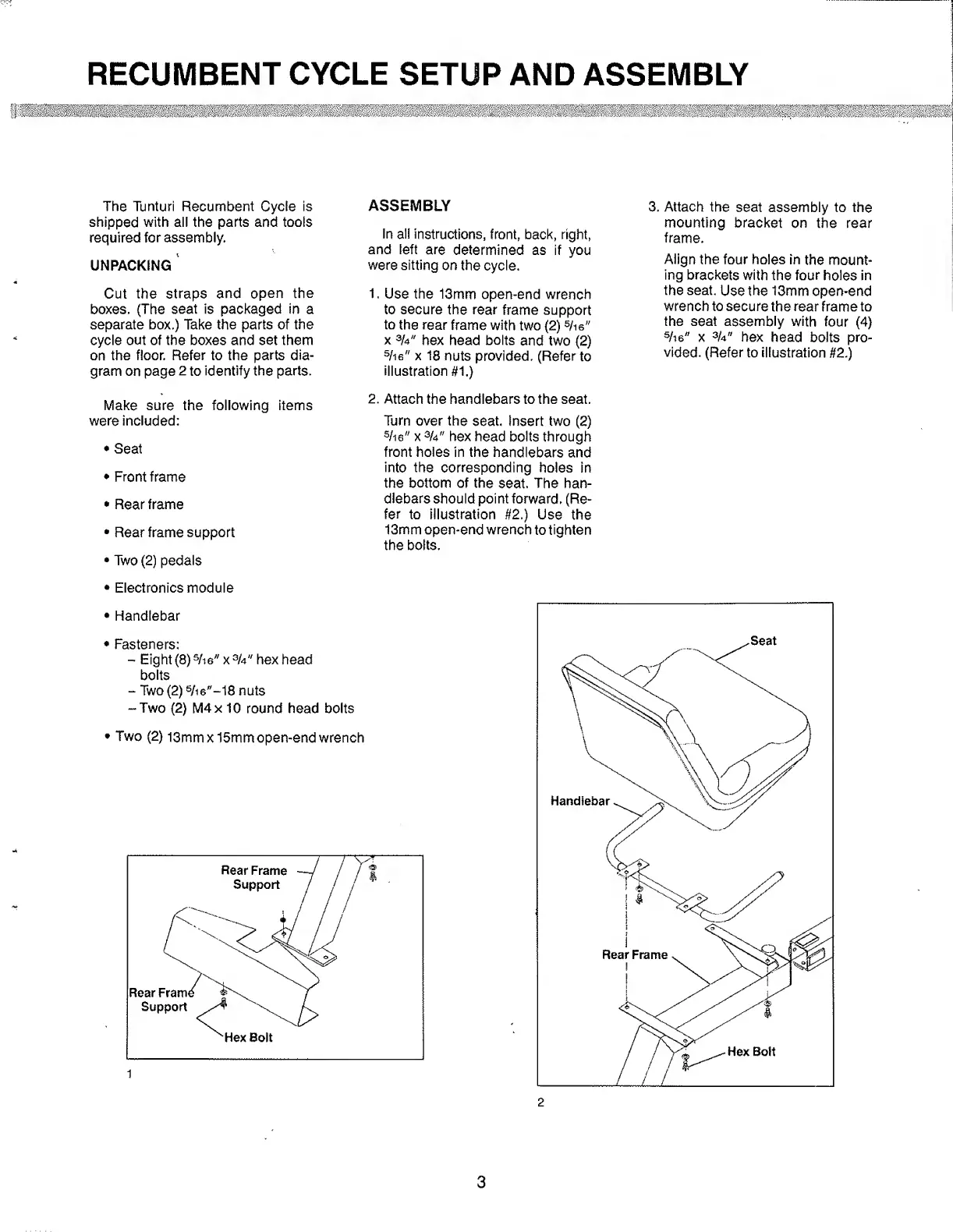

RECUMBENT CYCLE SETUP AND ASSEMBLY
The Tunturi Recumbent Cycle is
shipped with all the parts and tools
required for assembly.
UNPACKING '
Cut the straps and open the
boxes. (The seat is packaged in a
separate box.) Take the parts of the
cycle out of the boxes and set them
on the floor. Refer to the parts dia¬
gram on page 2 to identify the parts.
Make sure the following items
were included;
• Seat
• Front frame
• Rear frame
• Rear frame support
• Two (2) pedals
ASSEMBLY
In all instructions, front, back, right,
and left are determined as if you
were sitting on the cycle.
1, Use the 13mm open-end wrench
to secure the rear frame support
to the rear frame with two (2) ^he"
X 3 / 4 " hex head bolts and two (2)
s/ie" X 18 nuts provided. (Refer to
illustration #1.)
2. Attach the handlebars to the seat.
Turn over the seat. Insert two (2)
5 / 16 " X 3 / 4 " hex head bolts through
front holes in the handlebars and
into the corresponding holes in
the bottom of the seat. The han¬
dlebars should point forward. (Re¬
fer to illustration #2.) Use the
13mm open-end wrench to tighten
the bolts.
3. A ttach the seat assembly to the
mounting bracket on the rear
frame.
Align the four holes in the mount¬
ing brackets with the four holes in
the seat. Use the 13mm open-end
wrench to secure the rear frame to
the seat assembly with four (4)
5 / 16 " X 3 / 4 " hex head bolts pro¬
vided. (Refer to illustration #2.)
• Electronics module
• Handlebar
• Fasteners:
- Eight (8) 5 / 16 " x 3 / 4 " hex head
bolts
- Two (2) 5 /i 6 " - 1 8 nuts
“Two (2) M4x 10 round head bolts
• Two (2) 13mm X 15mm open-end wrench
