TurboChef C3/AB - Electrical Component Locations C3;CMulti

Electrical Compartment and Controls
6-5
ELECTRICAL COMPONENT LOCATIONS: “C3/C MULTI” OVENS ONLY

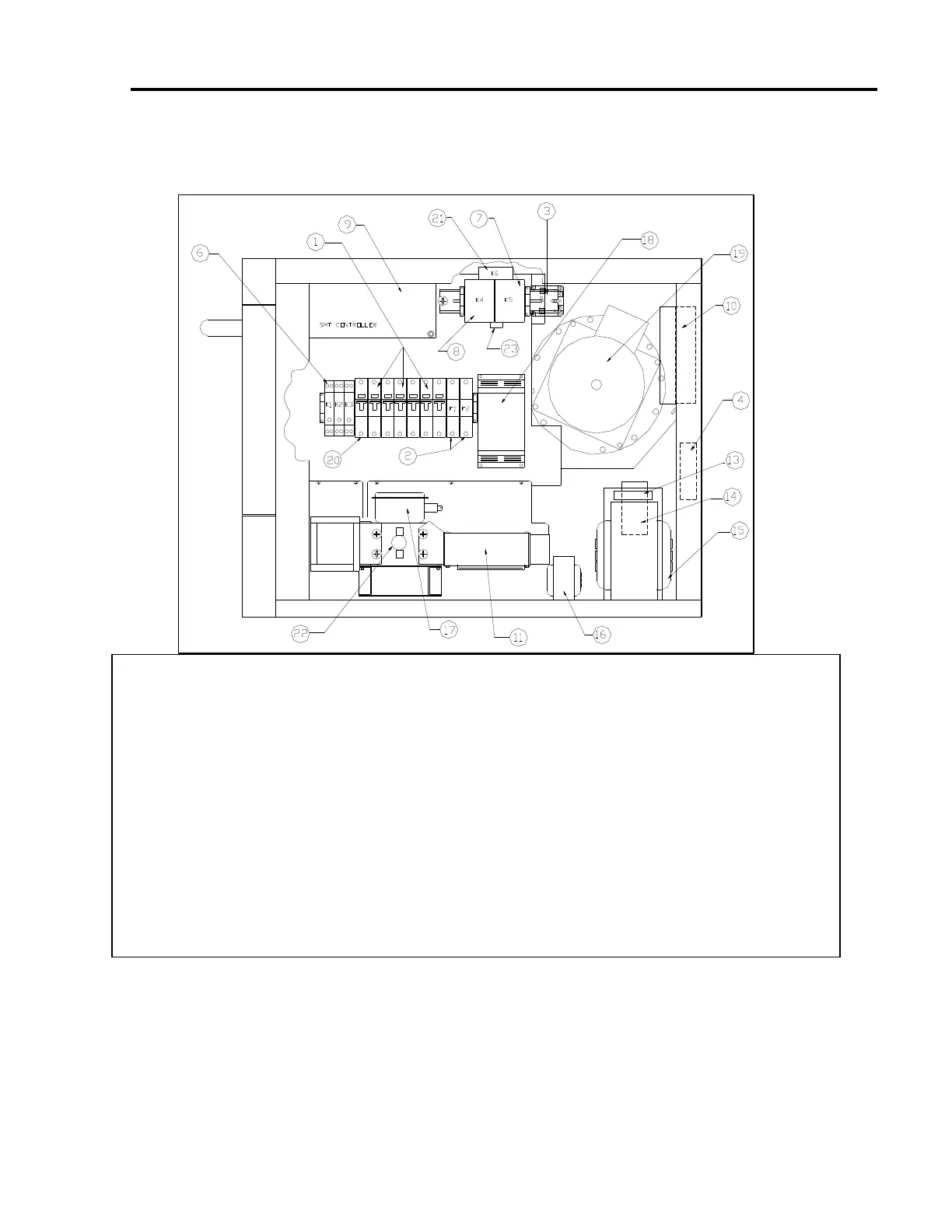

FIGURE 6–1C Electrical Component Locations C3/CMulti Only
1. Circuit Breaker: CB1-15A & CB2-15A&CB3-15A (103170) 10. COOLING FAN (100519)
2. 12 A-FUSE ATM-12 (100596) 11. MAGNETRON COOLING FAN (T0262)
12. STIRRER MOTOR (101891)
3. CONVECTION HIGH LIMIT (R7603) 13. HV DIODE (100480)
4. 24VDC POWER SUPPLY (M9608) 14. HV CAPACITOR, 2500 VAC (100206)
5. DISTRIBUTION BLOCK (N/A) 15. FILAMENT TRANSFORMER (102091)
6a. K1 RELAY& SOCKET (T0278 &T0309) 16. MAGNETRON HV TRANSFORMER (102093)
6b. K2 RELAY& SOCKET (T0278 &T0309) 17. MAGNETRON (100860)
6c. K3 RELAY& SOCKET (T0278 &T0309) *18. BLOWER MOTOR SPEED CONT. (100441)
19. CONVECTION MOTOR ASSY. (C0299)
7. K5 SOLID STATE RELAY FOR HEATER (101285) 20. TRIP COIL BREAKER (103171)
8. K4 SOLID STATE RELAY FOR MAGNETRON (101285) 21. K6 SOLID STATE RELAY HEATER (101285)
9. SMT CONTROLLER BOARD (T0265) 22. THERMOSTAT, MAGNETRON (102070)
23. THERMOSTAT, ELECTRICAL
COMPARTMENT (102085)
Notes:
Part Number 100441-Reliance Blower Motor Speed Controller will be replaced by 100444-Delta Controller & FSB10034.doc
EMI FILTER (100542) NOT SHOWN
