TurboChef C3/AB User Manual

TurboChef Technologies, Inc. C Series
6-8

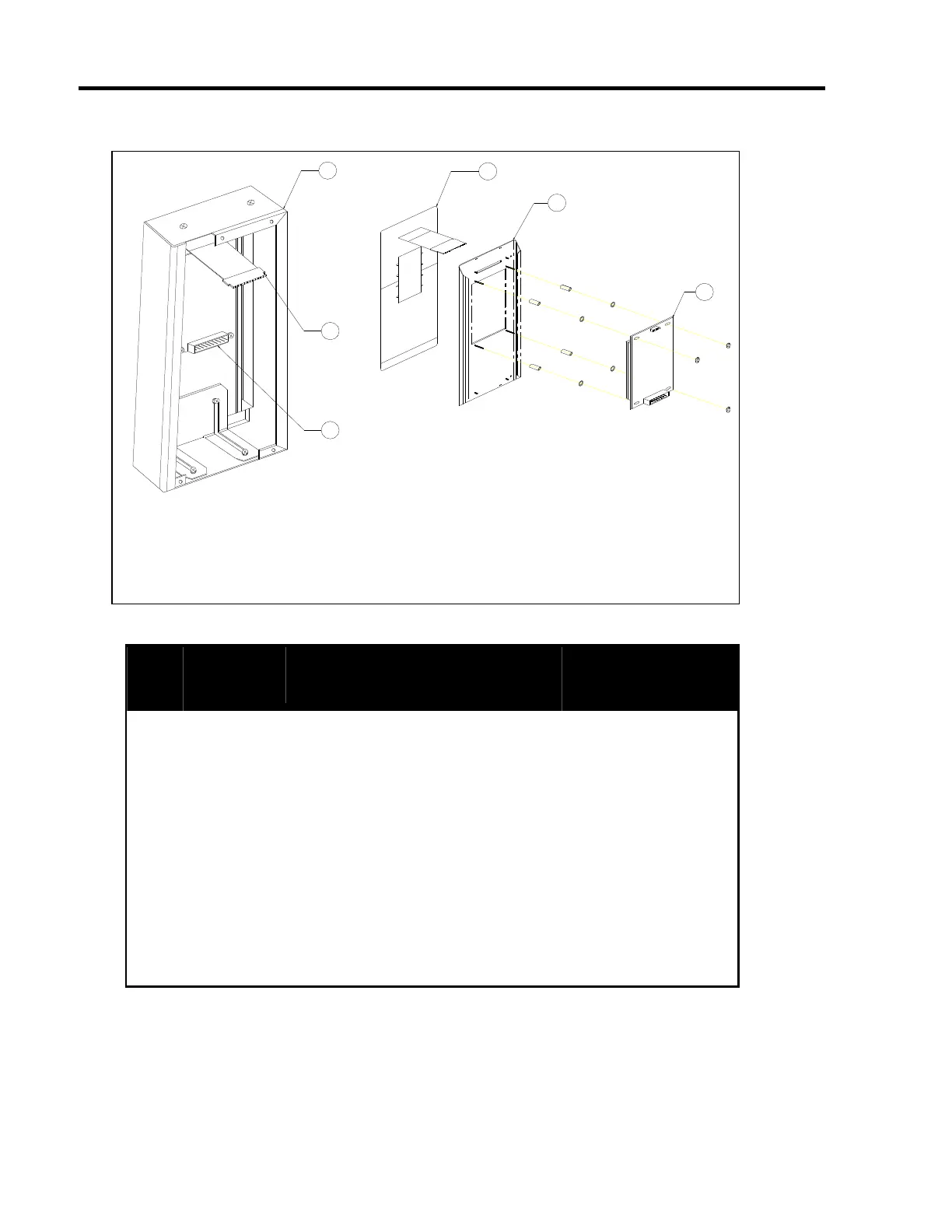

CONTROL PANEL COMPONENT DETAIL
CONTROL PANEL PARTS LIST (see above)
ITEM Part
Number
Description Used on Model(s)
1 T0239 CONTROL PANEL (SHEET METAL) C3/AB & C3/MULTI
2 C0239 CONTROL PANEL (SHEET METAL) C3/C & C3/CMULTI
3 NA VFD DISPLAY CONNECTOR All
4 T0264 KEYPAD All
5 T0374 CONTROL MOUNTING PLATE C3/AB & C3MULTI
5 C0374 CONTROL MOUNTING PLATE C3/C & C3/CMULTI
6 T0238 VFD DISPLAY All
CONTROL PANEL ASSEMBLY AND COMPONENT
1. ASSEMBLED CONTROL PANEL
2. KEYPAD RIBBON CABLE
3. DISPLAY CONNECTOR
1
2
3
4
5
6
CONTROL PANEL ASSEMBLY AND COMPONENT
4. KEYPAD
5. CONTROL MOUNTING BRACKET
6. DISPLAY
