TurboChef C3/AB User Manual

Cook Door
7-7

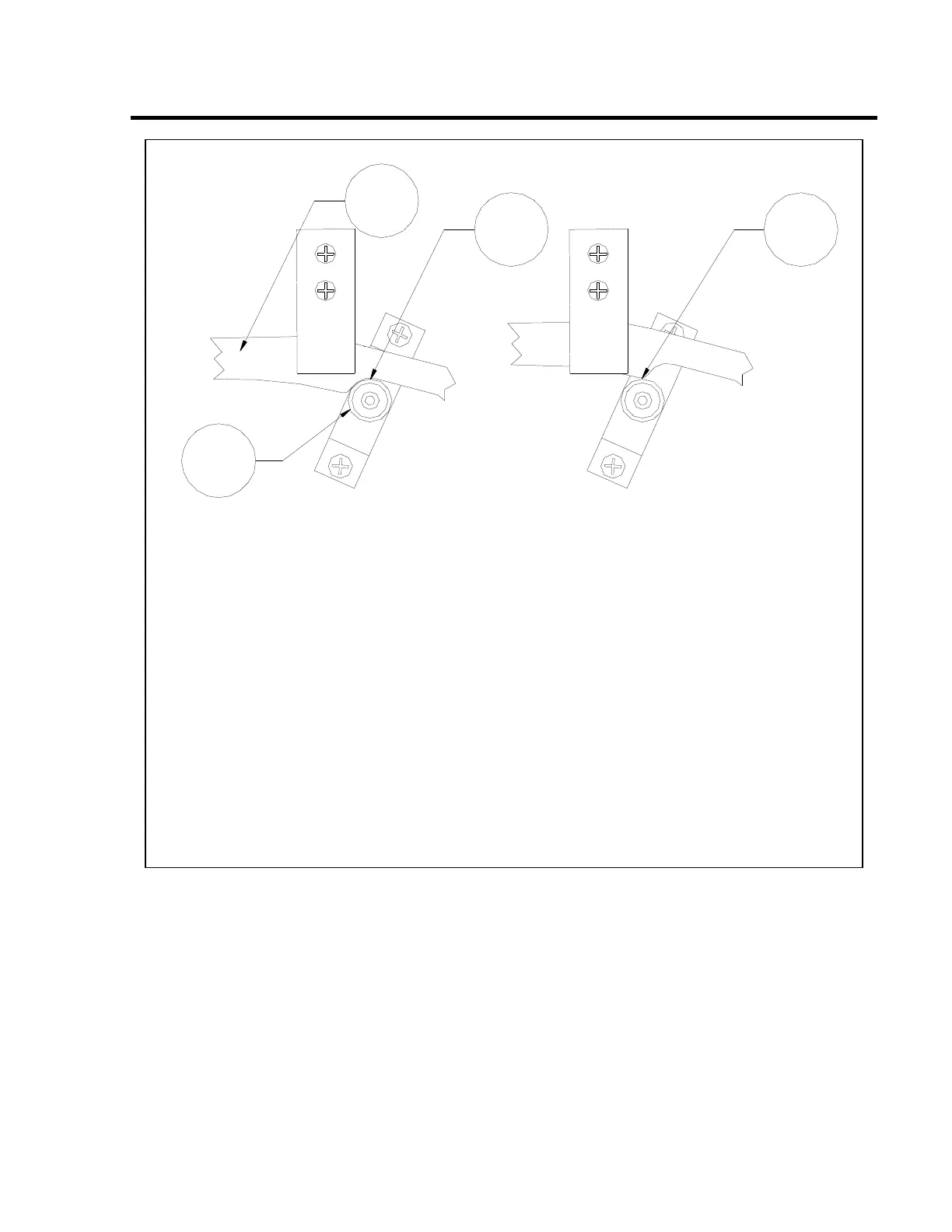

Figure 7-4 Trailing Arm and Cam Motion
TRAILING ARM AND CAM MOTION
1. CAM FOLLOWER ROLLER
2. TRAILING ARM
NOTES:
3. IN DOOR CLOSED POSITION, THE TRAILING ARM SHOULD SEAT
AS SHOWN ON THE CAM. NOTE: BOTH THE LEFT AND RIGHT
SIDES SHOULD BE ADJUSTED SUCH EACH SIDE SEATS AS SHOWN.
4. AS THE DOOR OPENS, THE TRAILING ARM MUST CONTACT CAM
DURING FULL MOTION OF THE DOOR.
2
4
1
3

TurboChef C3/AB Specifications

General

Brand	TurboChef
Model	C3/AB
Category	Convection Oven
Language	English
