TurboChef TORNADO Quick Guide

DOC-1032/Revision F/
February 2013
Stacking i3 and i5 Ovens

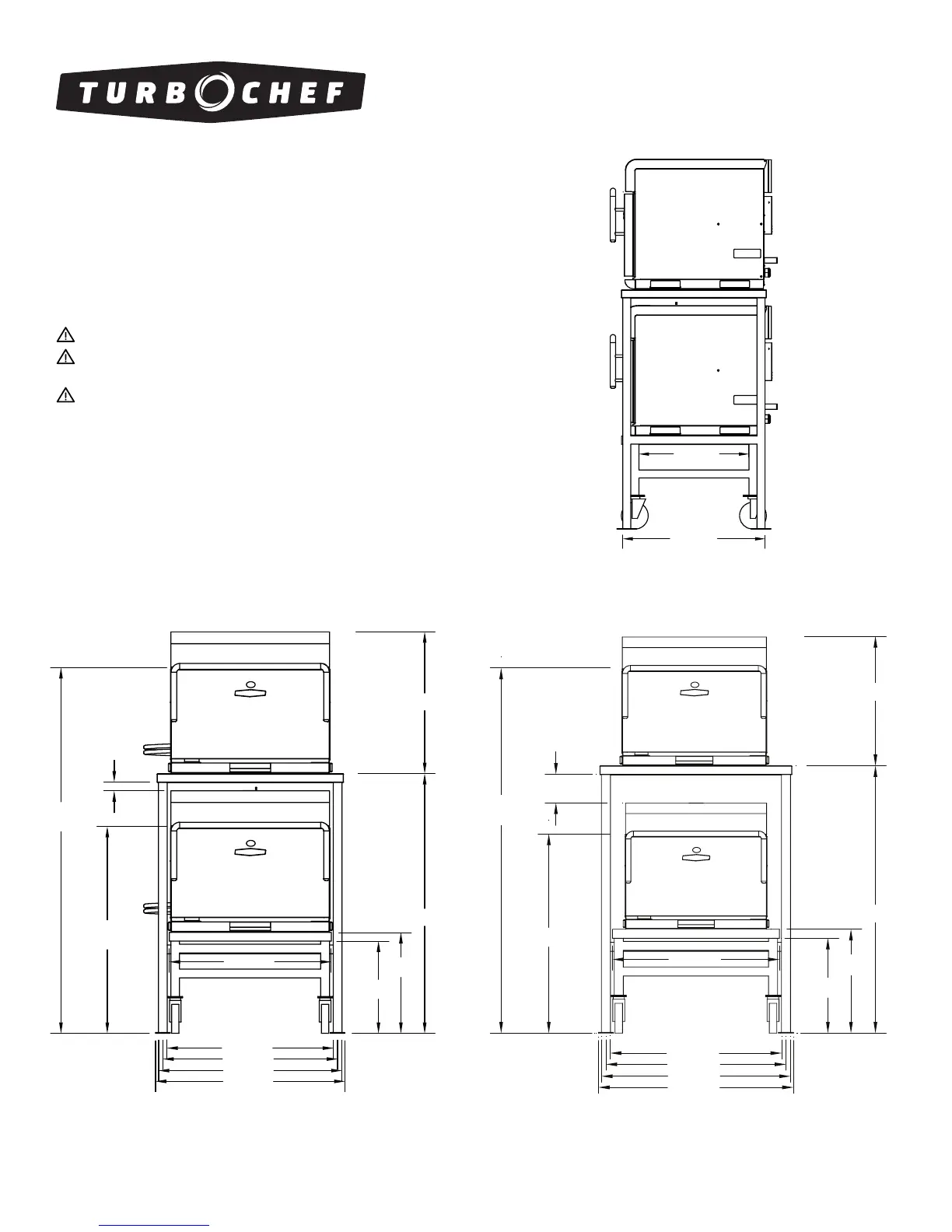

Reference the below illustrations for the proper stacking conguration,
as well as dimensions.
1. Unplug each oven.
2. Set the oven stand (part number i5-9369) in place.
WARNING: Do not attempt to lift the oven with fewer than 2 people.
WARNING: Position at least one person at the front and back of the oven and
always use the hand grips when lifting.
WARNING: Do not lift the oven by the door handle.
3. Lock the wheels of the oven cart (part number NGC-1217-2).
4. Place the lower oven on the oven cart.
5. Place the top oven on the oven stand.
6. Unlock the wheels of the oven cart and position it beneath the stand,
as shown in the below illustration.
62.7” (1594 mm)
(handle)
35.5” (902 mm)
(handle)
(706 mm)
28.6” (726 mm)
1.5” (38 mm)
30.0” (762 mm)
31.5” (800 mm)
32.5” (826 mm)
44.6” (1133 mm)
17.3”
(439 mm)
15.8”
(401 mm)
24.3” (617 mm)
59.7” (1516 mm)
(handle)
32.5” (826 mm)
(handle)
27.8” (706 mm)
28.6” (726 mm)
4.5”
(114 mm)
30.0” (762 mm)
31.5” (800 mm)
32.5” (826 mm)
44.6” (1133 mm)
17.3”
(439 mm)
15.8”
(401 mm)
20.5” (521 mm)
26.5” (673 mm)
21.25” (540 mm)
20.5” (521 mm)
26.5” (673 mm)
i5 Oven i3 Oven
27.8”
