TurboChef Global Operations
4240 International Pkwy, Suite 105
Carrollton, Texas 75007 USA
US: 800.90TURBO (800.908.8726)
International: +1 214.379.6000
Fax: +1 214.379.6073
turbochef.com
DOC-1032/Revision C/
August 2008
Stacking i5 Ovens

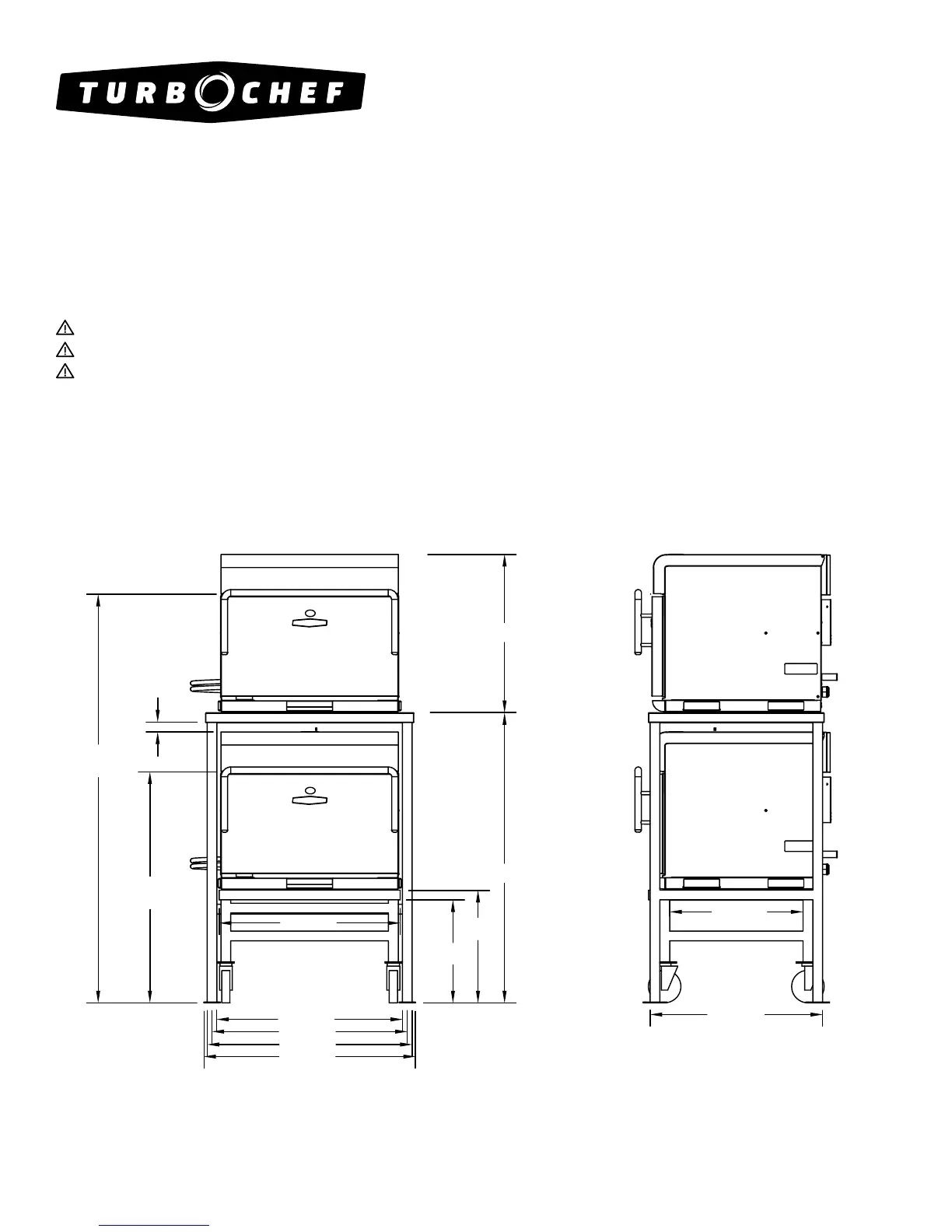

Reference the below gure for the proper stacking conguration, as well as dimensions.
1. Unplug each oven.
2. Set the oven stand (part number i5-9369) in place.
WARNING: Do not attempt to lift the oven with fewer than 2 people.
WARNING: Position at least one person at the front and back of the oven and always use the hand grips when lifting.
WARNING: Do not lift the oven by the door handle.
3. Lock the wheels of the oven cart (part number NGC-1217-2).
4. Place the lower oven on the oven cart.
5. Place the top oven on the oven stand.
6. Unlock the wheels of the oven cart and position it beneath the stand, as shown in the below gure.
62.7” (1594 mm)
(handle)
35.5” (902 mm)
(handle)
35.5” (706 mm)
28.6” (726 mm)
1.5” (38 mm)
30.0” (762 mm)
31.5” (800 mm)
32.5” (826 mm)
44.6” (1133 mm)
17.3”
(439 mm)
15.8”
(401 mm)
20.5” (521 mm)
26.5” (673 mm)
24.3” (617 mm)
