SubwooferCabling
NOTE: Since the MS121 subwoofer is wired 1+/- = LF and 2+/- = LINK, in order to power multiple MS121 enclosures, it is advised to construct SUB LINK cables wired:
2+ -> 1+ and 2- -> 1- .
To power two subwoofers per amplier channel, standard NL4 link cables from Lab Gruppen bi-wired NL4 outputs (Channel 1 = 1+/-; Channel 2 = 2+/-)

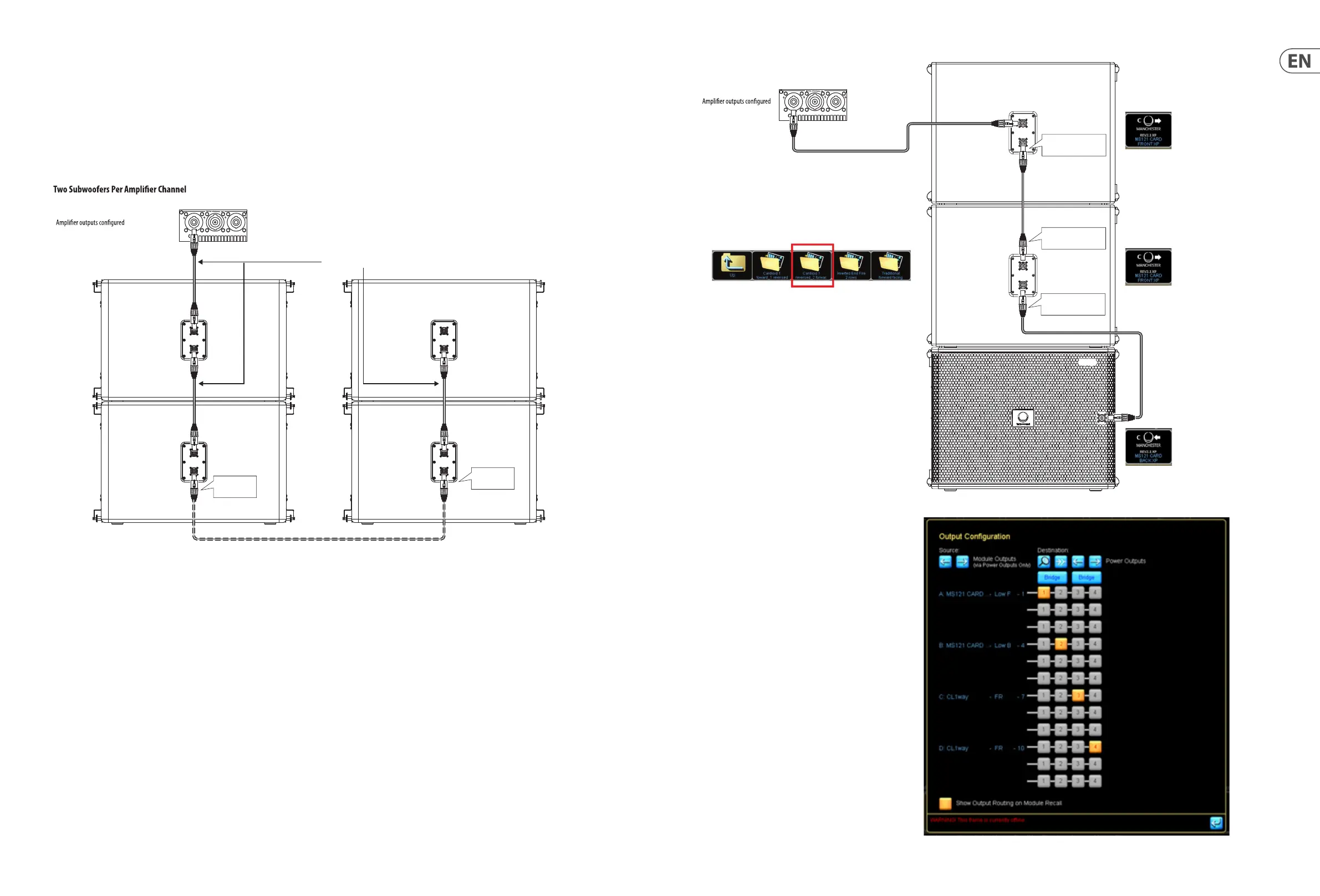

can be used in conjunction with a SUB LINK cable. Refer to wiring diagrams below for further details.
To power one subwoofer per amplier channel, a single NL4 cable from Lab Gruppen bi-wired NL4 outputs (Channel 1 = 1+/-; Channel 2 = 2+/-) connects
to the rst subwoofer, then the SUB LINK cable connects to the second subwoofer.
MS121
Plays Amp
Channel 1
Plays Amp
Channel 1
Plays Amp
Channel 2
Plays Amp
Channel 2
MS121
MS121
MS121
LAB GRUPPEN PLM + Series
in LAKE software on pins 1
+/- and 2 +/-
NL4 - NL4 two-conductor “SUB LINK” cable cross wired
from pin 2+ to 1+ and pin 2 - to 1-
NL4 - NL4 four-conductor cable
with standard wiring
(1+/- to 1+/- and 2+/- to 2+/-)
THIS NL4 USES
PINS 2+ / 2-
THIS NL4 USES
PINS 1+ / 1-
MS121
LAB GRUPPEN PLM + Series
Cardioid BFF (back, forward, forward)
Using 4-Core NL4 cable, 2 DSP and 2 amplier channels
in LAKE software on
pins 1 +/- and 2 +/-
All cables are NL4 - NL4 four-conductor
with standard wiring
(1+/- to 1+/- and 2+/- to 2+/-)
FRONT Preset
Patched to Pins 1 +/-
Cardioid:
1 Reversed
2 Forward
BACK Preset
Patched to Pins 2 +/-
FRONT Preset
Patched to Pins 1 +/-
MS121
MS121
THIS NL4 USES
PINS 1+/- and 2+/-
THIS NL4 USES
PINS 1+/- and 2+/-
THIS NL4 USES
PINS 1+/- and 2+/-
