Installing Milan Loudspeakers

Using the M10 rigging points

Milan loudspeakers can be permanently installed in a venue, suspended from eyebolts ﬁ tted to the

internal M10 rigging points on the top and bottom of the cabinet. Three possible

orientations are available: vertically upright, or upside down

to position the high frequency driver closer to the audience,

or sideways if required.

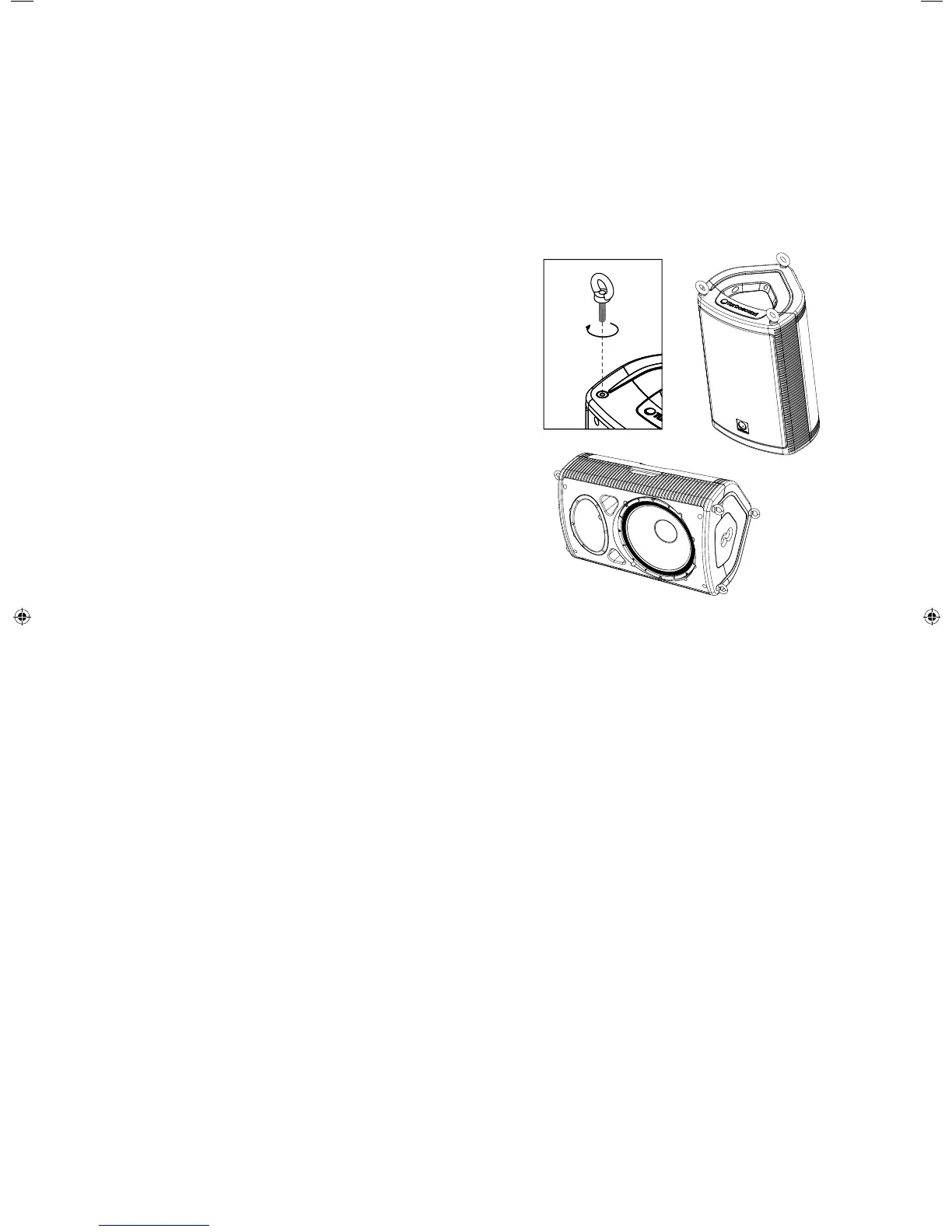

Insert M10 load-rated shoulder eyebolts into the threaded

rigging points and tighten. The front rigging points should

take the majority of the load while the rear rigging point

should be used for angling the cabinet downwards only.

When installing the cabinet sideways, pick up from either of the

two front eyebolt pairs, and bridle the two rear eyebolt points

to provide a single pull-back for adjusting the downward angle.

Wall Mounting

The Milan loudspeaker can be conveniently wall mounted using

the PB-55 pole mount wall bracket, which simply locates into

the pole mount socket in the bottom of the cabinet.

Mount the bracket to the wall using suitable ﬁ xings, and locate the loudspeaker onto the pole mount

bracket. Rotate and angle the loudspeaker to optimise coverage and tighten the locking mechanism to stop

the loudspeaker from being inadvertently removed.

INSTRUCTIONS FOR QUALIFIED PERSONNEL ONLY

FASTENING OF BRACKET ASSEMBLY

The operation of your speaker cabinet as part of a ﬂ own system, if installed incorrectly and improperly,

can potentially expose persons to serious health risks and even death. In addition, please ensure that

electrical, mechanical and acoustic considerations are discussed with qualiﬁ ed and certiﬁ ed (by local state

or national authorities) personnel prior to any installation or ﬂ ying.

Make sure that speaker cabinets are set up and “ﬂ own” by qualiﬁ ed and certiﬁ ed personnel only,

using dedicated equipment and original parts and components delivered with the unit. If any parts or

components are missing please contact your Dealer before attempting to set up the system.

Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group,

including the MUSIC Group companies listed on the enclosed “Service Information Sheet”, assume no liability

for any damage or personal injury resulting from improper use, installation or operation of the product.

Regular checks must be conducted by qualiﬁ ed personnel to ensure that the system remains in a secure and

stable condition. Make sure that, where the speaker is ﬂ own, the area underneath the speaker is free of human

trafﬁ c. Do not ﬂ y the speaker in areas which can be entered or used by members of the public.

Speakers create a magnetic ﬁ eld, even if not in operation. Therefore, please keep all materials which can

be affected by such ﬁ elds (discs, computers, monitors etc) at a safe distance. A safe distance is usually

between 1 and 2 metres.

Turbosound Miln series User Manual
