6Milan Series

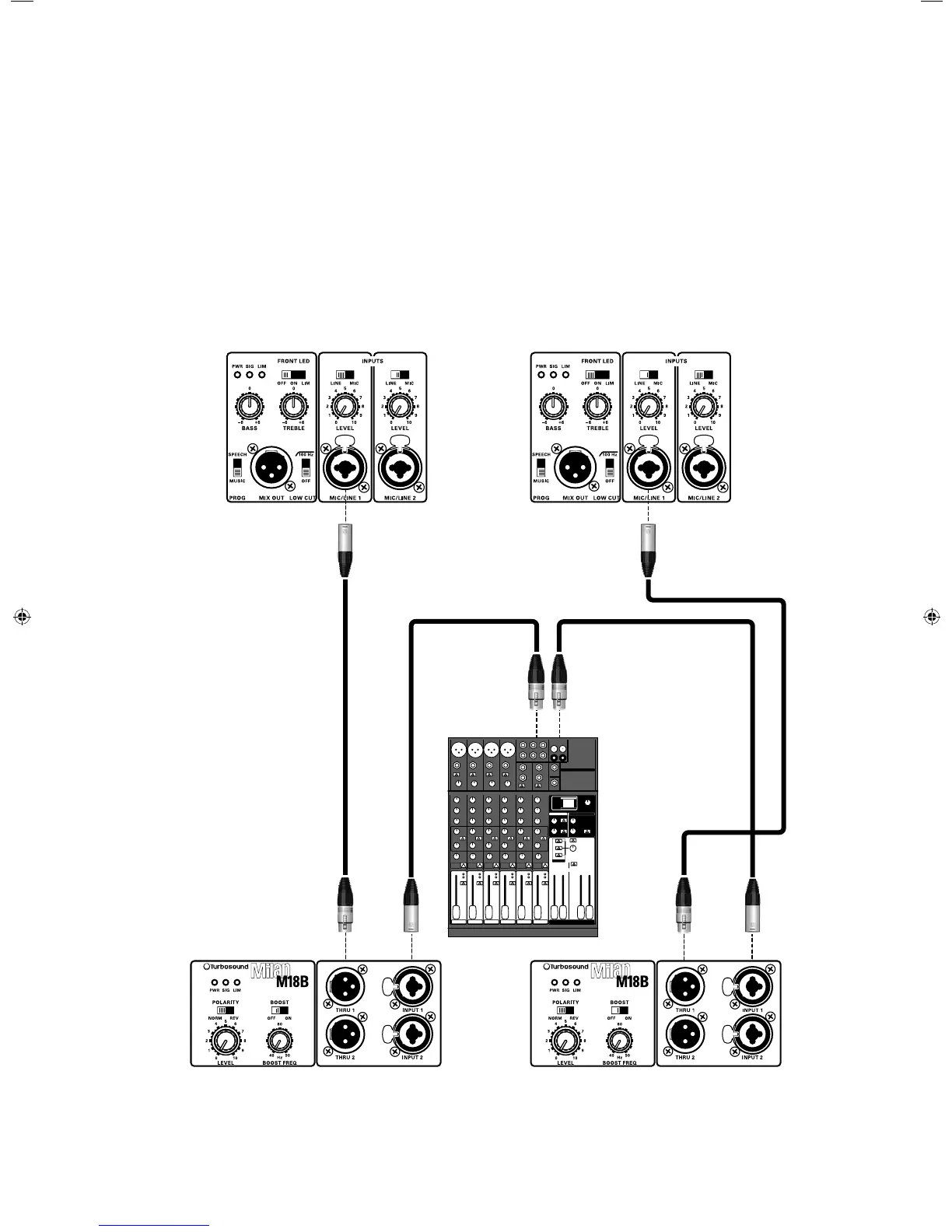

Stereo PA with an external mixer and subwoofer(s)
In this example, sub frequencies are routed to a separate subwoofer(s) in order to gain extended
frequency response and higher overall sound level. Connect the mixer output fi rst to the subwoofers
and then loop up to the Milan mid/high loudspeakers. Set the MIC/LINE switch to LINE and set the
LOW CUT switch to the 100 Hz position to roll off the low frequencies to the Milan mid/high loudspeakers.
The tone controls on both cabinets should be set to the same positions, nominally fl at to begin with.
Ensure that the mixer outputs are not clipping, and then adjust both loudspeakers’ level controls to the
desired loudness.
LEFT
RIGHT
LEFT RIGHT
