Turbosound TCS COMPACT SERIES - Flying Accessories

user manual
TCS Compact series
tcs compact manual
page 29
Flying Accessories
EB-10 M10 x 18mm shoulder eyebolt

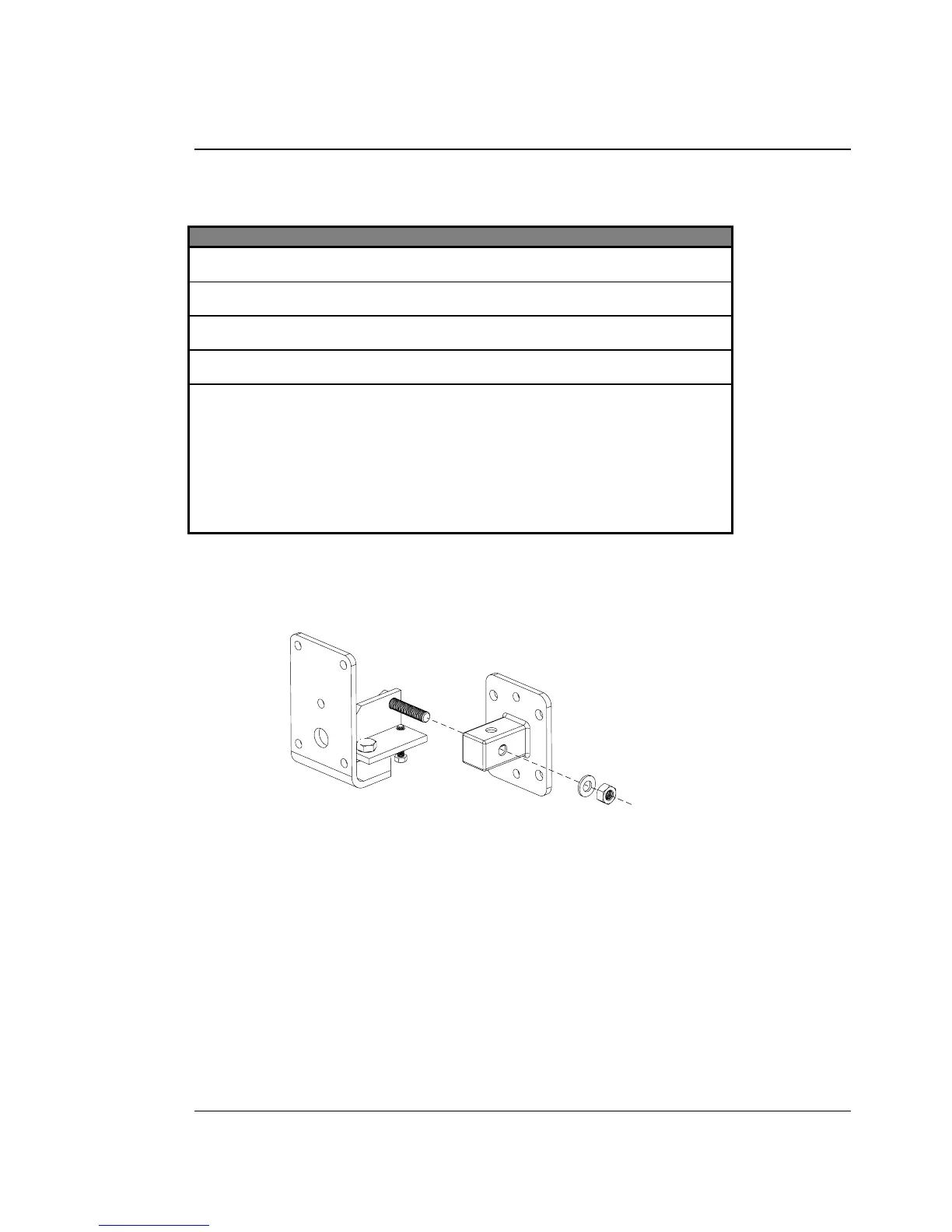

WB-20 wall bracket (exploded view)
Model TCS-151C TCS-121C TCS-101C TCS-081C
Wall Bracket
WB-55 WB-20 WB-20 WB-20
Ceiling Bracket
CB-55 CB-55 CB-55 CB-55
Swivel Bracket
SB-101
OmniMount™
120 series 60 series 60 series 30 series
Internal Rigging
Points
(9) M10
(4) M8 for WB-55
or CB-55 brackets
(4) M8 for
OmniMount™
series brackets
(9) M10
(4) M8 for WB-20
or CB-55 brackets
(4) M6 for
OmniMount™
series brackets
(9) M10
(4) M8 for WB-20
or CB-55 brackets
(4) M6 for
OmniMount™
series brackets
(2) M10 for SB-101
(9) M10
(4) M8 for WB-20
or CB-55 brackets
(4) M6 for
OmniMount™
series brackets
WALL
PLATE
SPEAKER
PLATE
