TFS-780 user manual
Page 13

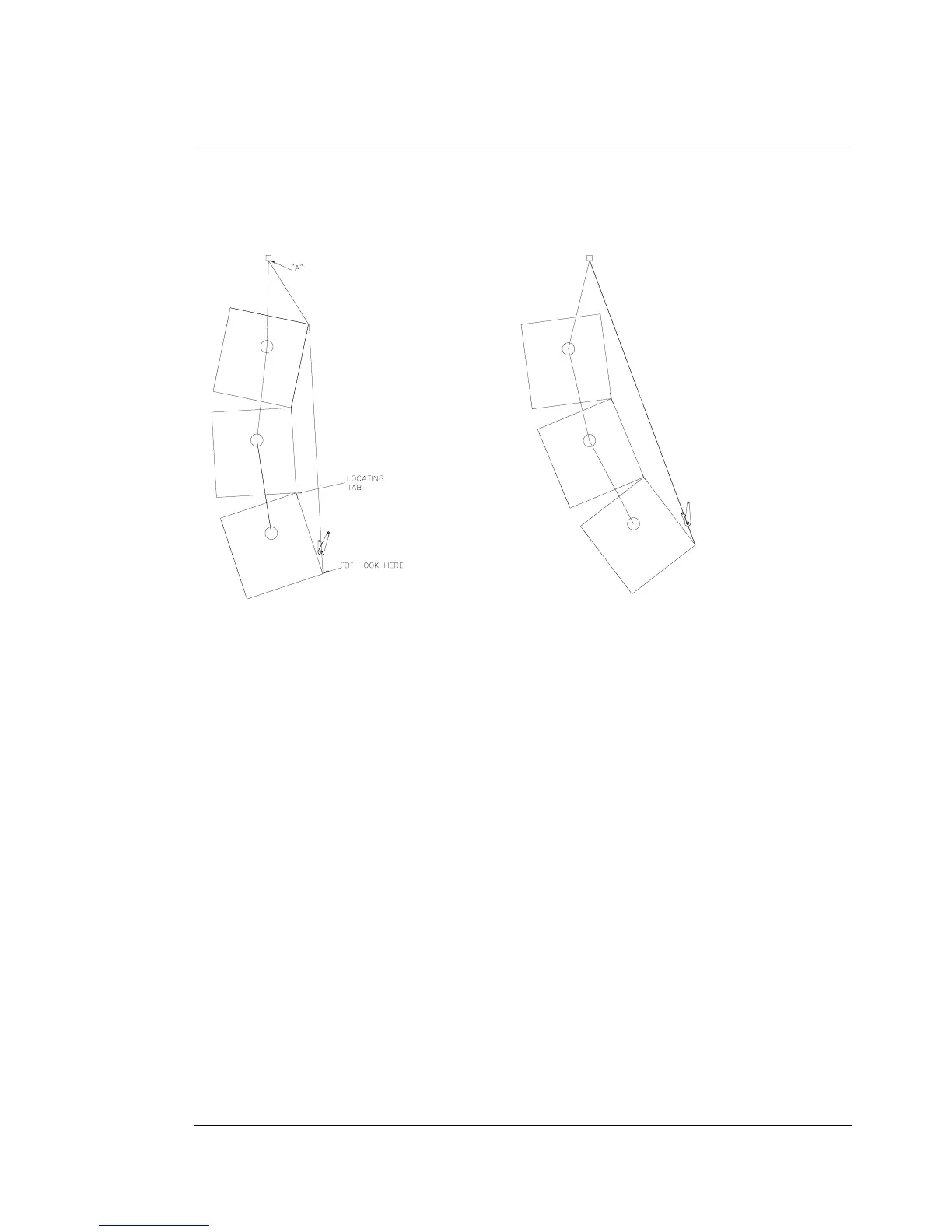

Figure 7. Tilting Strap Operation
The tilting strap, TS-780, is in two parts. The longer part is attached to the stirrup in the
centre of the flying bar at "A" using the hook at its end. The hook should face towards the
front of the cabinet. The other part of the strap with the ratchet is hooked into the lower slot
of the bottom enclosure at "B". The free end is then threaded through the ratchet and the
strap tightened to achieve the desired tilt.
WARNING
WARNINGWARNING
WARNING
If the strap is released suddenly, the row of enclosures may tend to swing violently forwards
and care must be taken to avoid danger to persons in the vicinity. It is essential to check that
nobody is standing immediately in front of the column, and to give a suitable warning,
before the strap is released. Ideally, two persons should support the row from the side whilst
the strap is released, or alternatively the bottom row may be returned to the ground before
release. In any event it is essential that all personnel in the vicinity are aware that the system
is about to move and that they must keep clear.
