TFS-780 user manual
Page 33
Options
The rack is supplied fitted with four amplifiers as standard. The two top amplifiers are TMC-
750 models, and power the high frequency and high-mid frequency sections respectively,
while the two bottom amplifiers are TMC-1250 models and power the low-mid frequency and
low frequency sections respectively. Separate adjustment of the levels of left and right sides
of the rack is possible on all frequency bands. Furthermore, the rack may be operated in two-
channel or stereo mode by removal of the link plug (dongle) located under the top panel.
Input Connections
As will be seen from the wiring schedule below, the incoming 11 pin Lemo socket is
connected via the mono/stereo linking connector to the adjacent link-out Lemo and to the
XLR male cable plugs which connect LF, LMF, HMF and HF feeds to the amplifiers in the rack.
In two-channel mode, the second Lemo socket becomes the input connector for the second
channel.

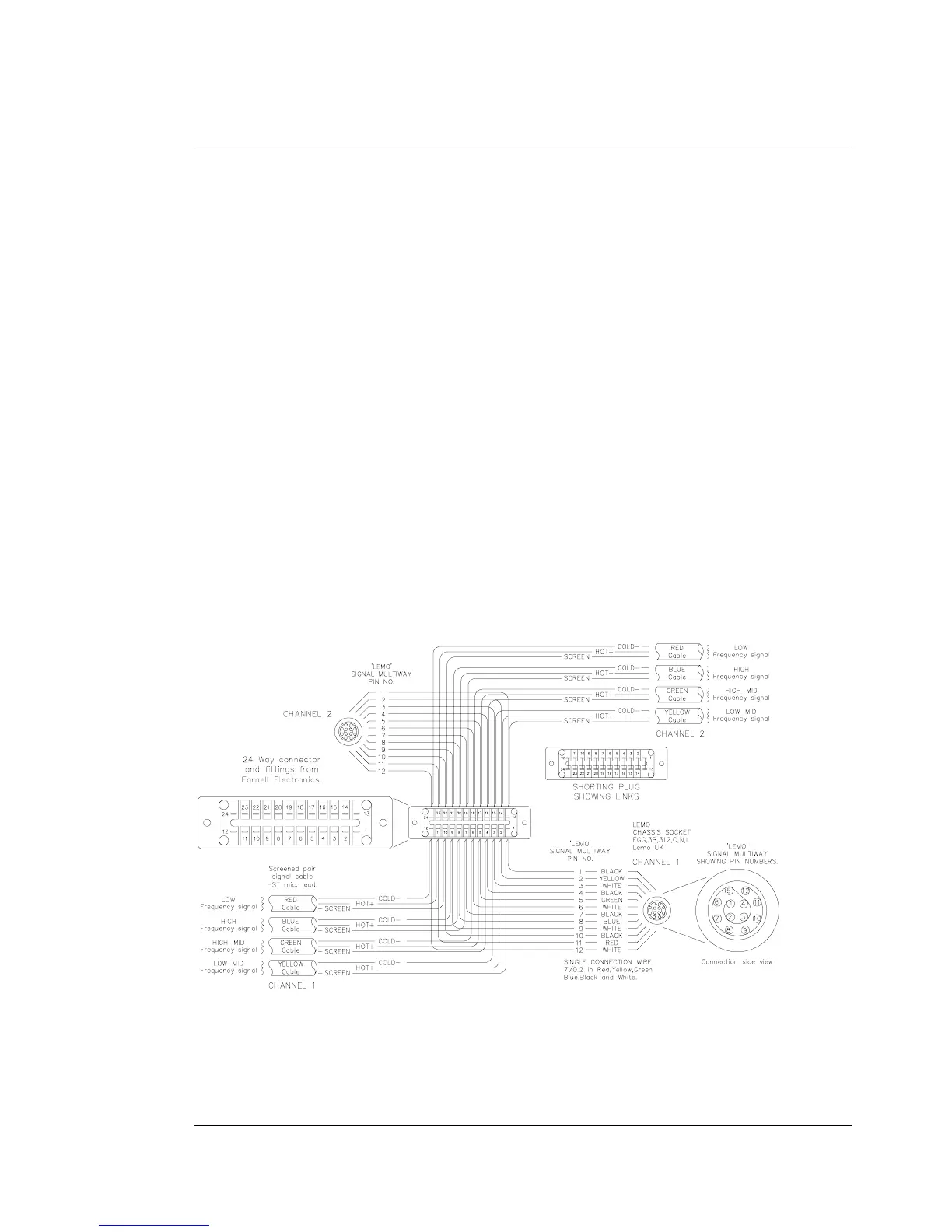

Figure 1. Amplifier Rack Signal Wiring
