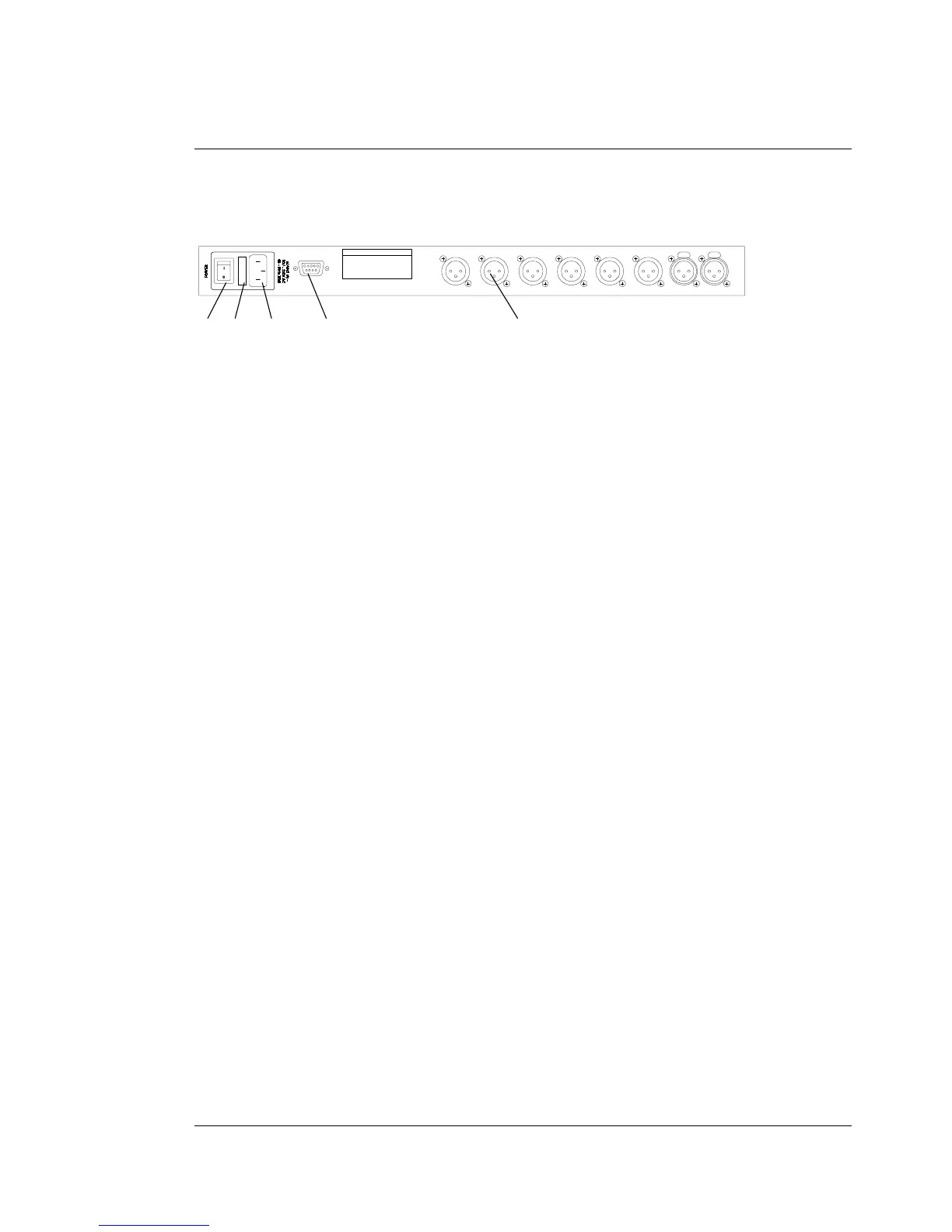

LMS-D6 Rear Panel Functions
1. Power Switch
Power SwitchPower Switch
Power Switch.
2. Mains Fuse
Mains FuseMains Fuse
Mains Fuse - Located in a finger-proof fuseholder adjacent to the mains inlet. Always
replace this fuse with the correct type as shown on the rear panel legend. (N.B. A spare
fuse is located in this holder.)
3. Mains Power
Mains PowerMains Power
Mains Power - Connected via a standard IEC socket. A compatible power cord is
supplied with the unit.
4. External
ExternalExternal
External - RS232 via a 9-pin DIN DEE socket, for connection to a PC.
5. XLR Inputs and Outputs
XLR Inputs and OutputsXLR Inputs and Outputs
XLR Inputs and Outputs - 3 pin XLR connectors are provided for each audio input and
output. All terminations are fully balanced, pin 2 Hot, pin 3 Cold and pin 1 not connected.
Mains Power
The LMS-D6 must always be connected to a 3 wire grounded AC supply. It is supplied with a
standard IEC power cord with conductors as follows:
BROWN Power line Live (Phase)
BLUE Power line Neutral
GREEN/YELLOW Safety Earth and ground connection
Units supplied to the North American market are fitted with an integral moulded 3 pin
connector, which is provided to satisfy UL & CSA safety standards.
1 2 3 4 5
INPUT B INPUT A
CUSTOM MADE FOR TURBOSOUND
IN THE UK BY XTA ELECTRONICS
PROTECTION AGAINST FIRE
REPLACE ONLY WITH THE
SAME TYPE T1A, 250V FUSE
RS232
DATA INP UT
PIN1=SHIELD
PI N2=HOT
PIN3=COLD
THIS EQUIPMENT MU ST BE EARTH ED
RISQU E DE CHOC E LECT RIQUE - NE PAS O UVRIR
WARNING / AV IS
O
UTPUT 6
O
UTPUT 5
O
UTPUT 4
O
UTPUT
3
O
UTPUT 2
O
UTPUT 1
DO NOT EXPOSE TO RAIN OR MOIST URE
SHOCK HAZARD – DO N OT RE MOVE COVERS
