Page 28

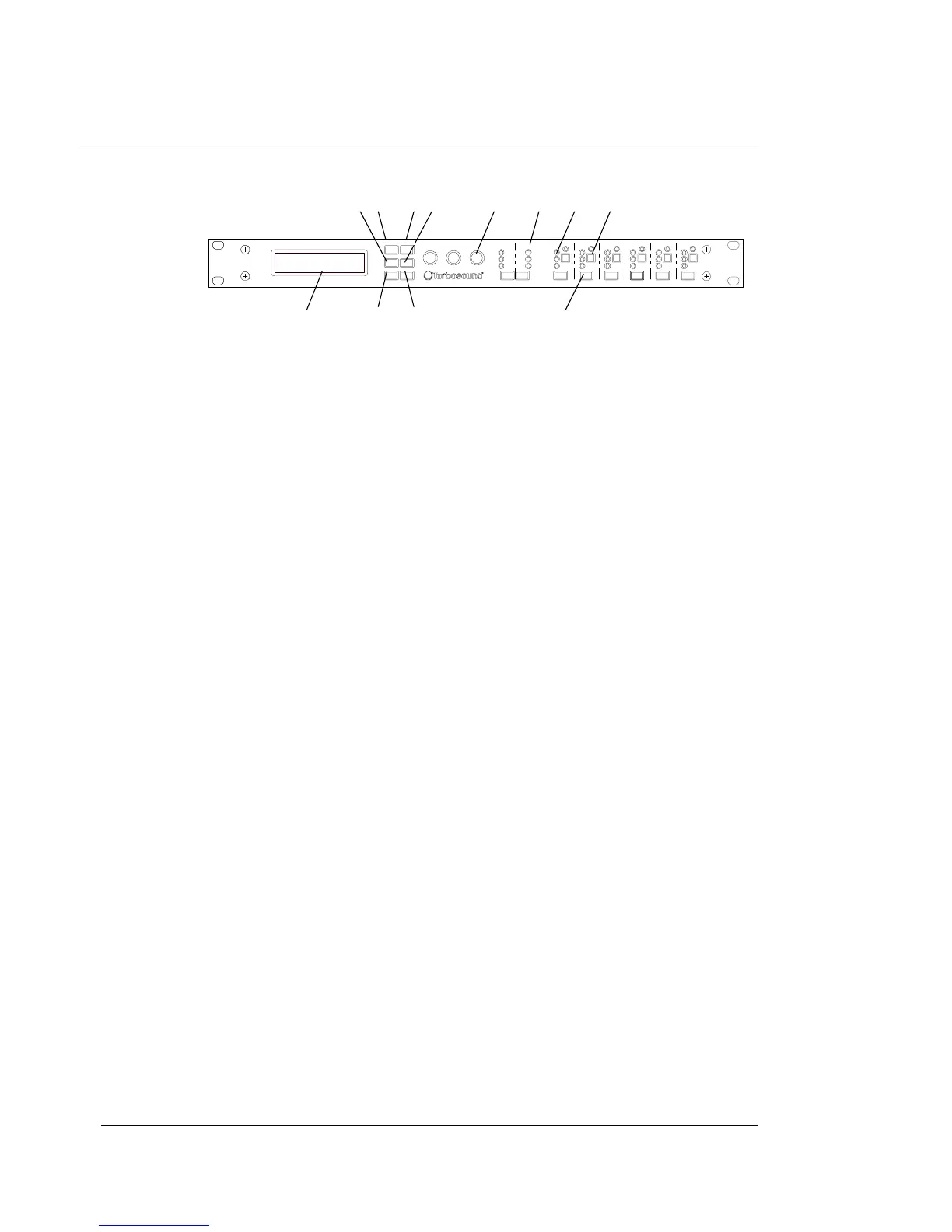

LMS-D6 Front Panel Functions
1. LCD Display
LCD Display LCD Display
LCD Display - Shows menu options, output information and parameters being adjusted.
2. Gain Keys
Gain KeysGain Keys
Gain Keys - Two input and six-output ‘gain’ keys allow instant access to the gain screen for
each channel. Pressing a second time selects the last function edited.
3. Next Key
Next KeyNext Key
Next Key - Moves the display forwards through the list of available parameters for the
current input or output channel.
4. Back Key
Back KeyBack Key
Back Key - Moves the display backwards through the list of available parameters for the
current input or output channel.
5. Menu Key
Menu KeyMenu Key
Menu Key - Activates the main menu on the LCD display. Pressing a second time selects the
last menu edited. Different menus are selected by pressing the
‘BACK’ and ‘NEXT’ keys or
using the
‘FREQ’ control.
6. Enter Key
Enter KeyEnter Key
Enter Key - Enters the chosen menu and confirms menu selections.
7. OUT Key
OUT KeyOUT Key
OUT Key - Exits the menu.
8. Bypass Key
Bypass KeyBypass Key
Bypass Key - Allows the currently displayed parametric section to be bypassed. (Note: The
Highpass / Lowpass filters and limiters can not be bypassed.)
9. Parameter Controls
Parameter ControlsParameter Controls
Parameter Controls - The three velocity sensitive rotary encoders allow the relevant
parameter, on the LCD screen, to be adjusted.
10. Input Meters
Input MetersInput Meters
Input Meters - Displays available headroom before input clipping occurs. The bottom green
LED is set at -24dB, with the orange 0dB LED set at 3dB below clipping. The top, red LED
displays digital overflow and can therefore light without all the other LEDs becoming
illuminated.
11. Output Meters
Output MetersOutput Meters
Output Meters - Displays headroom before limiting occurs. The bottom green LED is set at -
24dB, with the orange ‘LIM’ LED set at the limiter threshold for that channel. The top, red
LED indicates 4dB of limiting.
12. Mute Keys
Mute KeysMute Keys
Mute Keys – One mute key per output channel.
5 4 3 6 9 10 11 12
1 8 7 2
'Q'
3
LIM
-3
-24
LIM
-3
-24
LIM
-3
-24
MENU
BYPASS
ENTER
OUT
FREQ 'Q' GAIN
CLIP
-6
-24
GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN
MUTE MUTE MUTE
AB 12 456
DIGITAL LOUDSPEAKER MANAGEMENT SYSTEM
LMS-D6
LIM
-3
-24
LIM
-3
-24
<BACK NEXT>
