TFS-780 user manual
Page 36

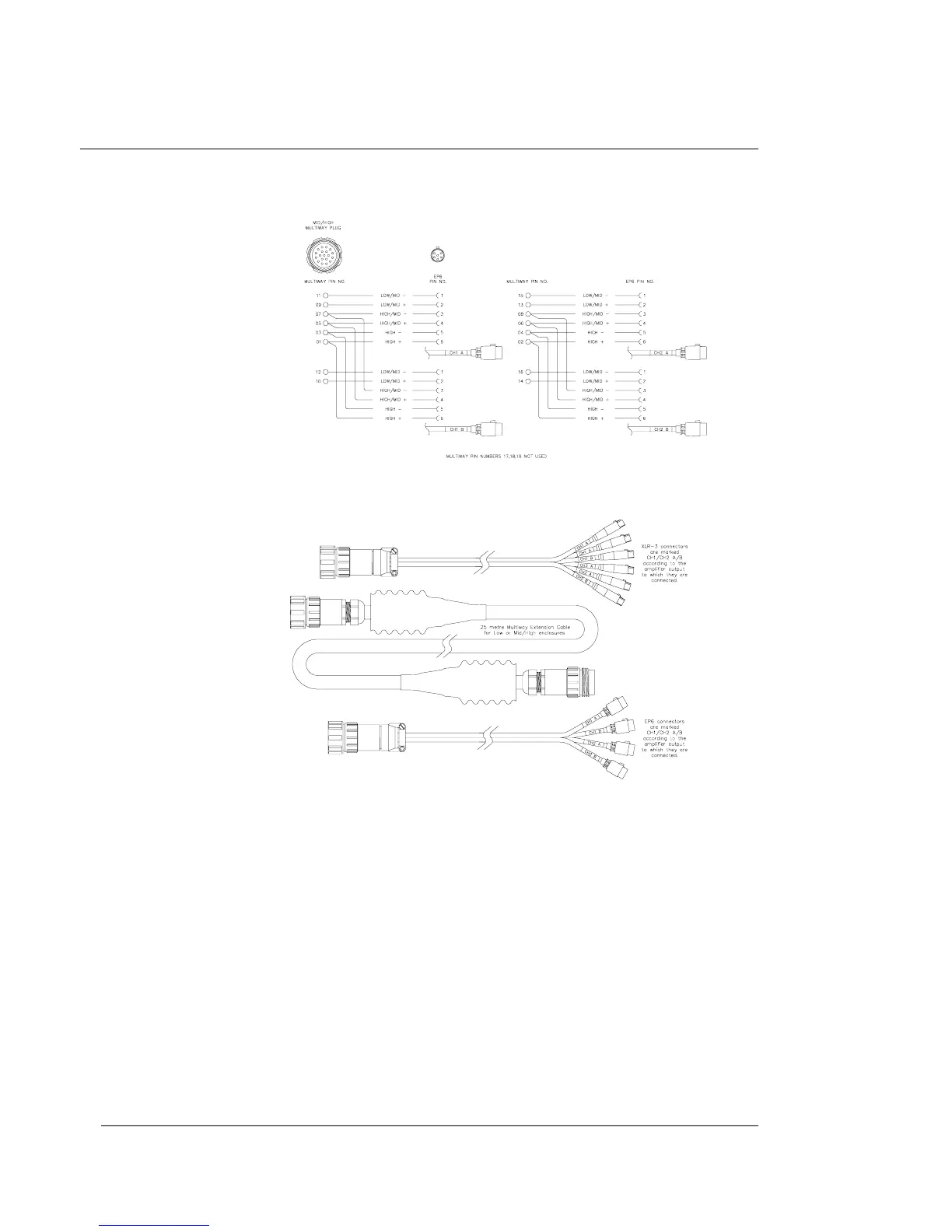

Figure 4. Multiway to EP6 Fan-Out.
Figure 5. Multiway Cables.
Mains Connections
Incoming mains power may be connected by one of a variety of
C Form
connectors,
depending on the power system specified when the rack was ordered. Typical supply
configurations are as follows:
110 V star-wired (3 phase) 110 V parallel (1 phase)
220/240 V (3 phase) 220/240 V (1 phase)
The mains power wiring utilises Wago distribution blocks with spring-loaded screwless
connectors. The power wiring may therefore be quickly and easily reconfigured should the
need arise, for example if conversion from single to three phase operation is required. We
recommend you consult a qualified electrician in cases of uncertainty.
