Installing the TMS-High loudspeaker

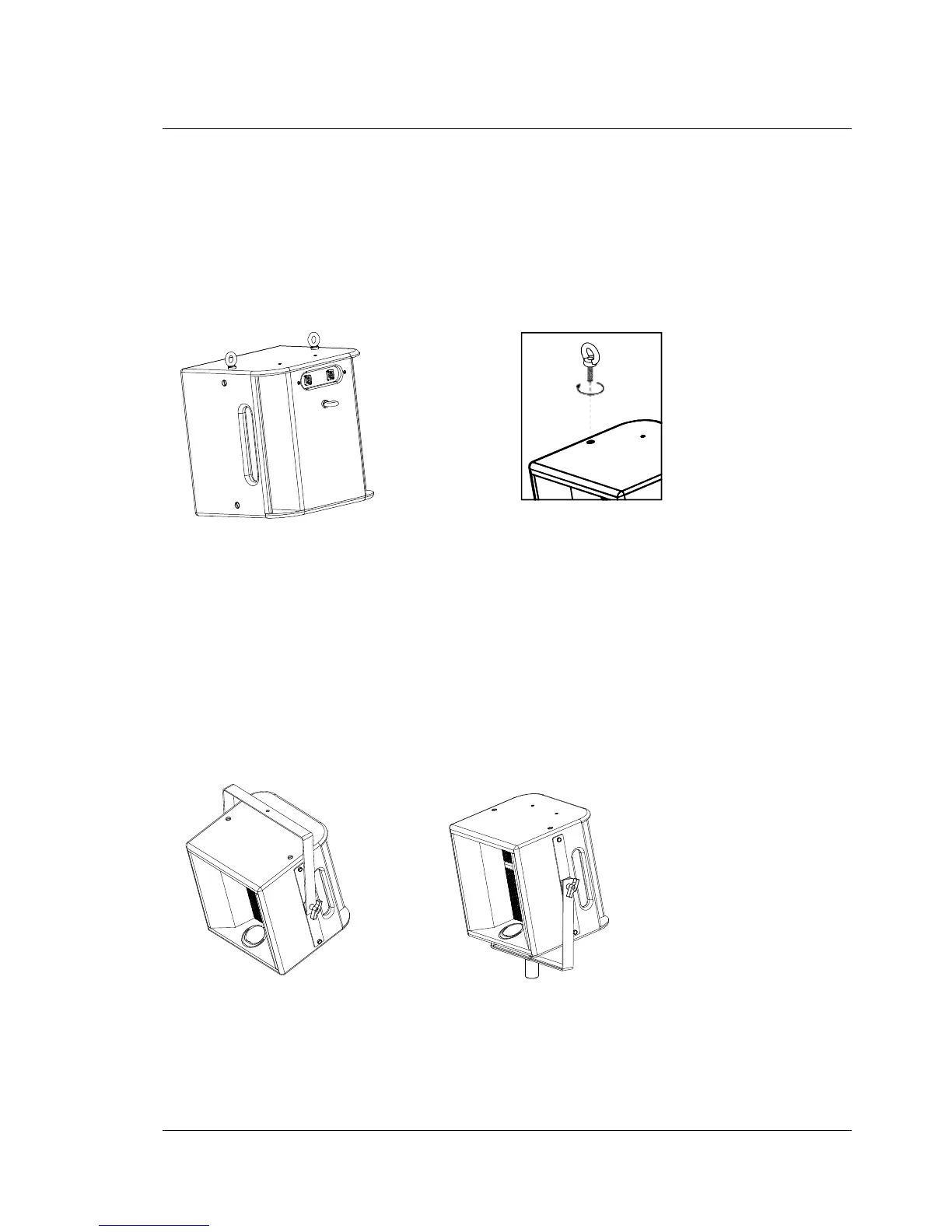

Using the M10 rigging points
The TMS-High loudspeaker can be permanently installed in a venue, suspended from eyebolts fitted to
the internal M10 rigging points on the top and bottom of the cabinet. The cabinet can be installed
vertically upright, or upside down if required in order to position the high frequency driver closer to the
audience.
Insert M10 load-rated shoulder eyebolts into the threaded rigging points and tighten. The front rigging
points should take the majority of the load while the rear rigging point should be used for angling the
cabinet downwards only.
Using the FY-TMS flying yoke
The FY-TMS flying yoke is designed to allow a range of vertical angle adjustment in order to optimise
audience coverage. The optional FY-PH pole adapter accessory allows the TMS-High loudspeaker to be
pole mounted above the subwoofer (below right) and angled as required.
Attach the side flying strips to the sides of the cabinet using the M10 countersunk blanking screws. Angle
the cabinet as required and tighten the wing nuts to secure.
To hang the cabinet from a standard truss structure, simply attach a scaffold clamp attached in place of a
FY-PH pole adapter (above left). The flying yoke can also be used to permanently ceiling mount the
cabinet with the pole adapter removed.
