Wall Mounting
The TMS-High loudspeaker can be conveniently wall mounted using the PB-55 pole mount wall bracket,
which simply locates into the pole mount socket in the bottom of the cabinet. Once positioned on the
wall bracket and correctly angled, tighten the grub screw to prevent accidental or unauthorised removal
of the loudspeaker.
Maintenance
If either of the drive units in your TMS series cabinet should cease functioning and need to be replaced
or repaired, you are advised to remove the faulty unit from the cabinet and send it to a professional
service centre authorised to repair Turbosound loudspeakers.

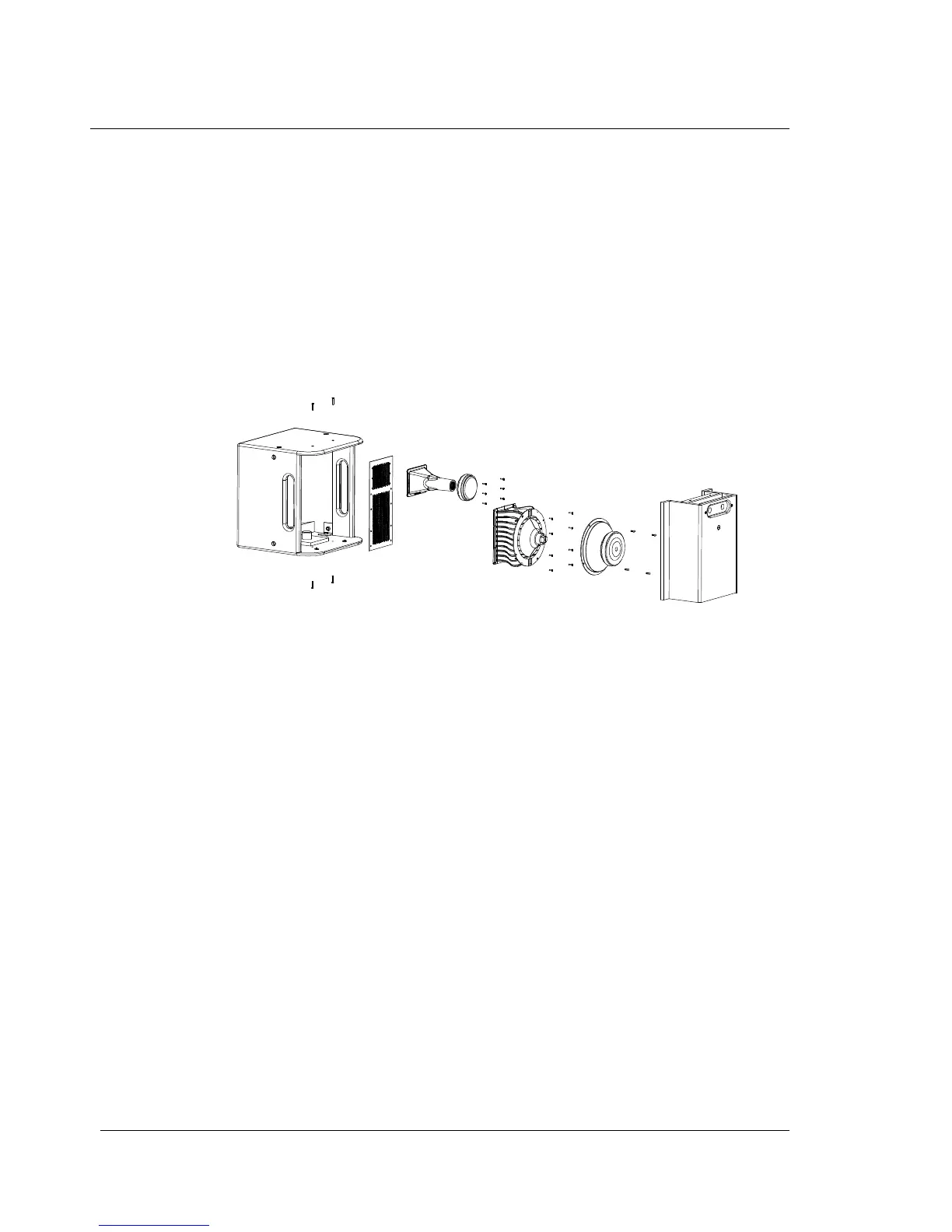

Removal of the high frequency compression driver
Access to both drive units is gained from the rear of the cabinet by removing the rear panel.
Remove the four M5 bolts (two on the top panel and two on the bottom) holding the rear panel in place
and slide it out and away. Disconnect the cables from the compression driver and midrange unit, making
a note of the polarity for later reconnection.
The high frequency compression driver is a screw-on type and can be removed from the HF horn by
simpy unscrewing it anti-clockwise. To replace the diaphragm, unscrew the four M3 hex head screws
holding the cover in place and set it aside. Carefully lift out the diaphragm. Replacement is a reversal of
the above procedure.
Removal of the midrange driver
Remove the rear panel and disconnect the cables to the drive units as described above.
Remove the four M5 x 25 screws securing the midrange driver to the midrange horn assembly and set it
aside. The driver can now be reconed or replaced as necessary. For recone instructions please go to the
support section of our website www.turbosound.com
