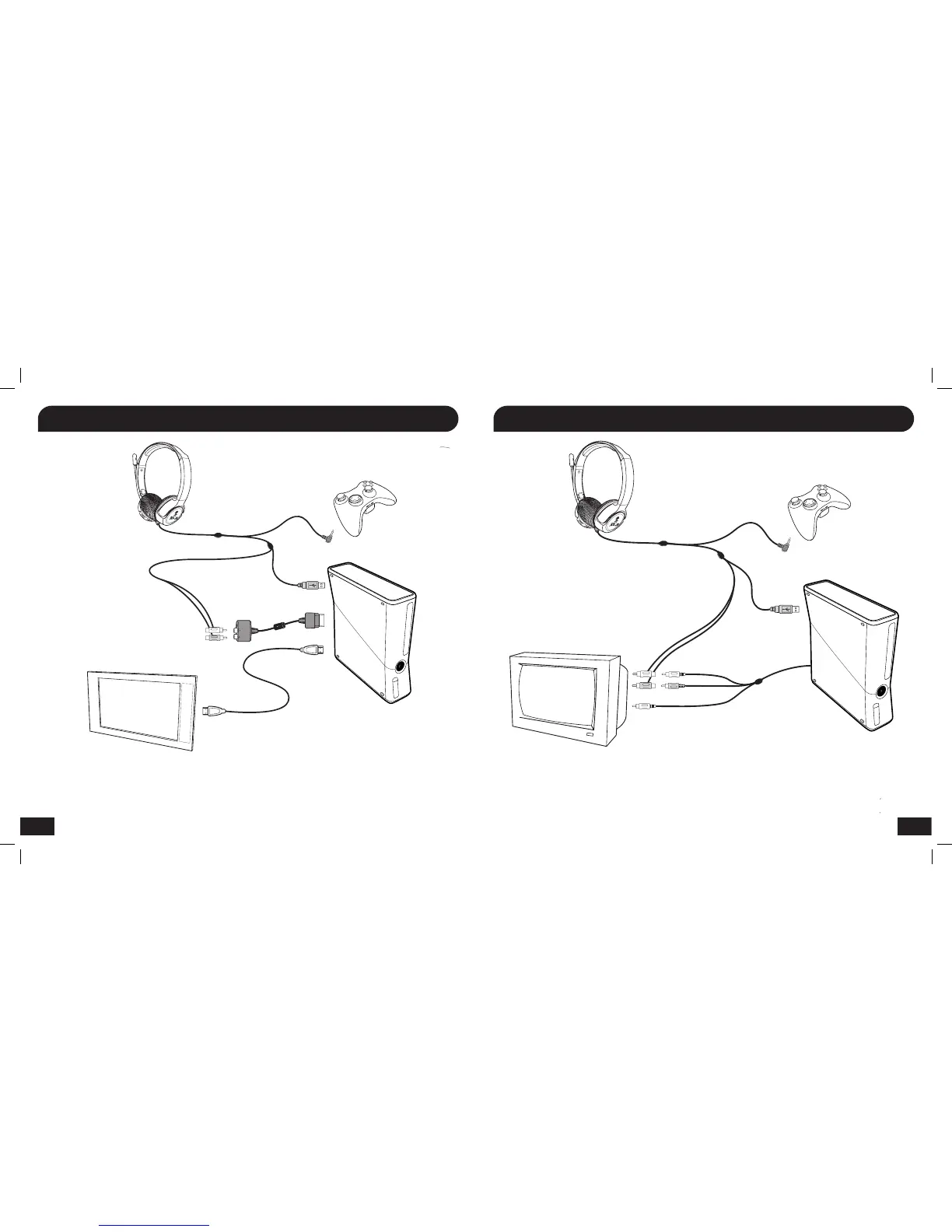

Turtle Beach Ear Force XLa - Xbox 360 Connection Setup; HDMI Connection Setup; RCA Connection Setup

3
4
GAME
CHAT
ON MIC MUTE
GAME
CHAT
ON MIC MUTE
XBOX 360
®
Setup(RCA)
Audio
(red/white)
Video (yellow)
USB/Power
XBOX 360
Talkback Cable
GAME
CHAT
ON MIC MUTE
*All XBOX 360 models require an XBOX 360 Audio Adapter Cable for audio output when used with an HDMI connection (available from third party sellers).
NOTE: If your HDMI TV has red/white AUDIO OUT RCA jack you can use it to feed the sound from your TV to your Turtle Beach headset. (AUDIO IN jacks will
not send sound out to your headset, you need AUDIO OUT.)
GAME
CHAT
ON MIC MUTE
Audio
(red/white)
XBOX 360 Audio
Adapter Cable*
USB/Power
HDMI
XBOX 360
Talkback Cable
XBOX 360
®
Setup(HDMI)
