Dear Tuthill Customer,
Thank you for buying a Tuthill product. Tuthill
represents a new age in transfer and measuring
equipment. This manual contains valuable
information about your new equipment and its
operating and service requirements. Please take
a few minutes to review this material carefully.
Tuthill’s mission is to provide fl uid handling systems
that deliver the most accurate, safe, convenient,
and economical transfer systems for users of
chemicals.
If, for any reason, any of the products do not meet
your performance expectations,we want to hear
from you.
Your comments and suggestions are requested
and appreciated. Thank you again for buying a
Tuthill product. We look forward to serving you in
the future.
The Tuthill Team 1-800-634-2695
To ensure safe and effi cient operation, it is essential
to read and follow each of the following warnings
and precautions.
1. Fuels and Chemicals fl owing through the meter
may be harmful to your health. Use and disposal
of these products is controlled by federal, state,
or local laws and procedures.
2. Conform to fl uid manufacturer’s recommended
handling procedures when using product and
when cleaning meter.
3. Do not exceed an internal meter pressure of
50 PSI (3.5 Bar) for the TT10A models and
125 PSI (8.6 Bar) for the TT10P models.
4. Improper use or installation of this product can
cause serious bodily injury or death.
5. Ensure the piping and hoses connected to the
meter are properly grounded when metering or
using near fl ammable fl uids.
6. DO NOT install additional foot or check valves
without use of a pressure relief valve; otherwise
the meter may rupture.
7. To avoid build up of electrostatic discharge,
please clean with damp cloth only.
Safety Instructions
CAUTION!
Wear proper safety equipment when handling
hazardous fl uids.

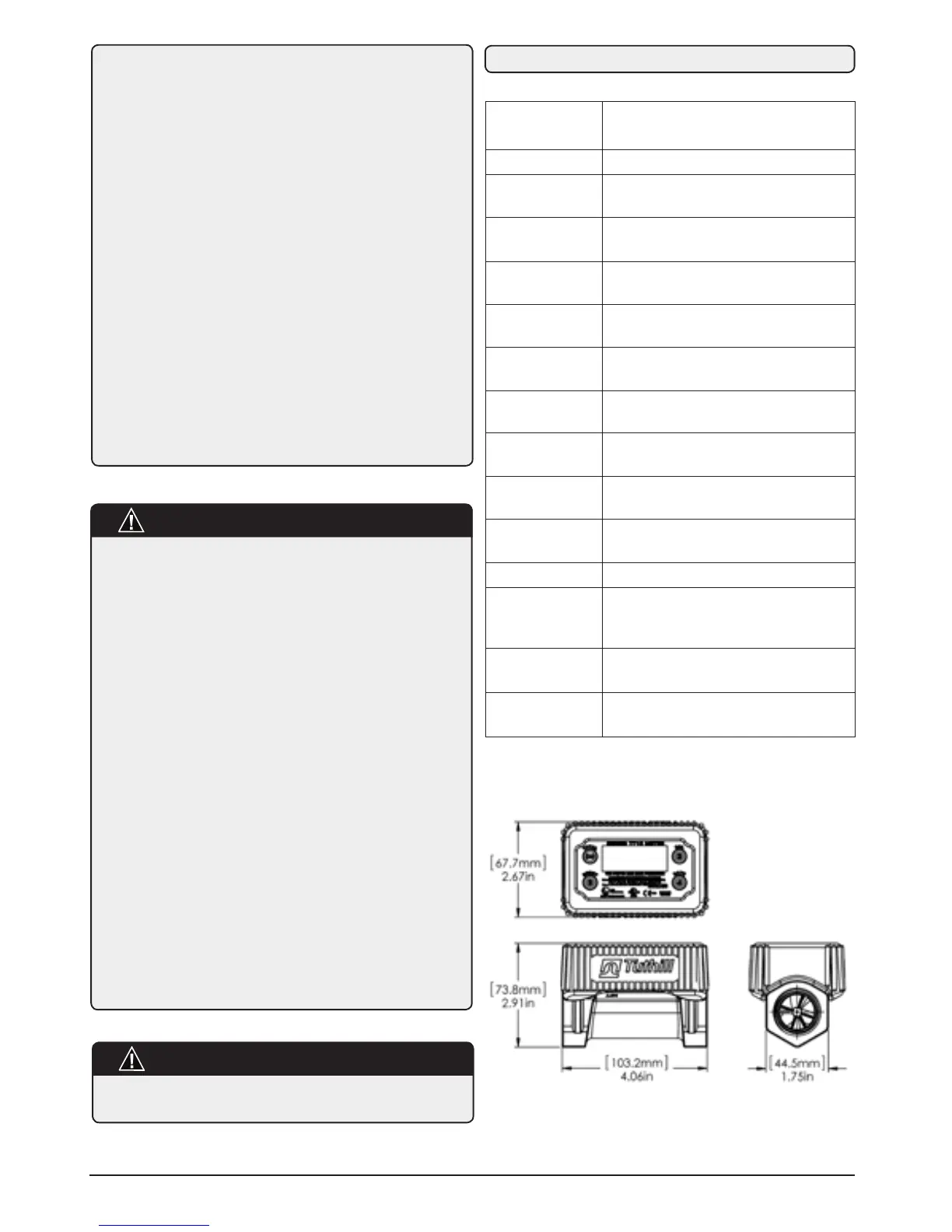

TT10P (Chemical) Technical Information
Flow Ports 1" NPT or BSPP female inlet and
outlet ports
Flow Range 2 to 35 U.S. GPM / 7.6 to 132.5 LPM
Working ≤120°F (49°C): 125 PSI (8.6 Bar)
Pressure >120°F (49°C): 50 PSI (3.5 Bar)
Storage -40°F to 176°F (-40°C to 60°C)
Temperature (No Liquids)
Operating -15°F to 176°F (-26°C to 60°C)
Temperature
Measurement ±1.0% (After fi eld calibration)
Accuracy
Measurement ±0.30% (Batch sizes ≥ 2 Gallons)
Repeatability
Measurement Ounce, Pint, Quart, Liter, Gallon
Units
Totalizer 0 - 90,000,000 Units
Range
Batch Range 0.00 - 9999 Units (Blinks when
Batch exceeds 9999)
Wetted 304/316 Stainless Steel,
Materials Polypropylene, UHMWPE, Gold
Display -40°F to 176°F (-40°C to 60°C)
Power 2 approved alkaline batteries.
See battery replacement section
of the manual
Memory Meter totals and calibration are
preserved when replacing batteries
Safety Intrinsically safe electronics for use
in hazardous locations.
