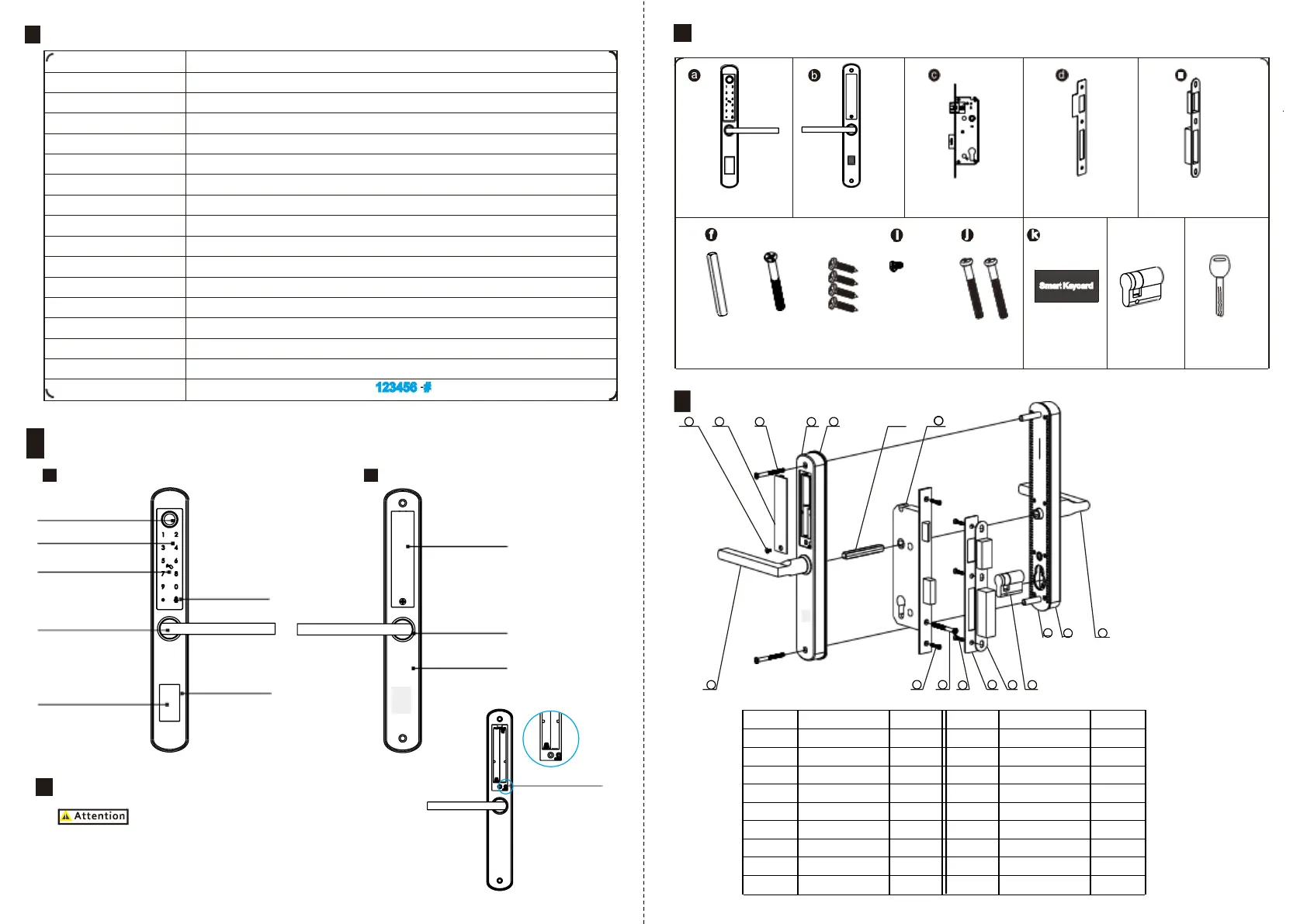

TUYA A210 - System Introduction; Product Specification; Front Panel Components; Back Panel Components

1 SYSTEM INTRODUCTION
Material
304#stainless steel, ABS,arcylic
Available Color
Satin Nickle and B lack Nickle
Door T hickness
38 - 55(mm)
Communication
Wi-Fi
Support OS
iOS 7.0 or above, A ndroid 4.4 or above
Battery Life
7000 times normal open(10months around)
Power Supply
DC6V:4 pcs AAA alkaline batteries
Static Current
< 55uA
Dynamic Current
<200mA
U nlock Way
IC card, Passcode, fingerprint,APP, manual Key
U nlock Time
1 - 1. 5seconds
Working Temperature
-20 ~45 degree
Working H umidity
10% ~95%
IPClass
IP64( Not standard)
Available Mortise
2885/3585/4585/ 5085/6085/7085 Mortise
User Quantity
Password: 100 groups; Card: 100 groups; Fingerprint: 100 groups
Default Password
Default Password: 123456, press + to unlock the door.
1
2
PRODUCT SPECIFICATION
F ront Panel
F ingerprint Sensor
Keypad
I nduction A rea
Door Bell
Back Handle
Back Panel
M icro - USB
L ock Cylinder
No.
Name
Quantity
No.
Name
Quantity
1
Mortise
1
10
Cylinder Screw
1
2
Spindle
1
11
Strike Screw
3
3
Rubber Gasket
1
12
Strike
1
4
Back Panel
1
13
Strike Box
1
5
Assemble Screw
2
14
Cylinder
1
6
Battery Box Cover
1
15
Front Gasket
1
7
Battery Cover
1
16
Front Panel
1
8
Back Handle
1
17
Front Handle
1
9
Faceplate Screw
2
2
1 Pcs
F ront Panel
1 Pcs
Back Panel
1 Pcs
Lock Mortise
1 Pcs
Strike Box
1 Pcs
Strike P late
4 Pcs
Wood Screws
1 Pcs
Battery Box
Cover Screw
2 Pcs
M4 Screws
2Pcs
E poxy Card
1 Pcs
Cylinder
2 Pcs
Manual Key
1 Pcs
Spindle
1 Pcs
Cylinder Screw
Long press the reset button ( on the rear side of back panel,
refer the photo) 2 seconds until 2 sound beep to factory state,
default passcode is:123456.
1
2
Reset to Factory State
Back Panel
3
PACKING LIST
12
13
EXPLODED VIEW
F ront Handle
Reset B utton
Battery Box
11
4
17
7
5
6
9
4
10
16
8
15
3
14
2
