PREPARING FOR INSTALLATION
7. 1 Line D rawing
D raw a horizontal center line inside and outside the door at 1 meter from the ground.
Fold the template, make the handle center line align at the door horizontal center line,
then d raw out the hole lines at front and side.
Template

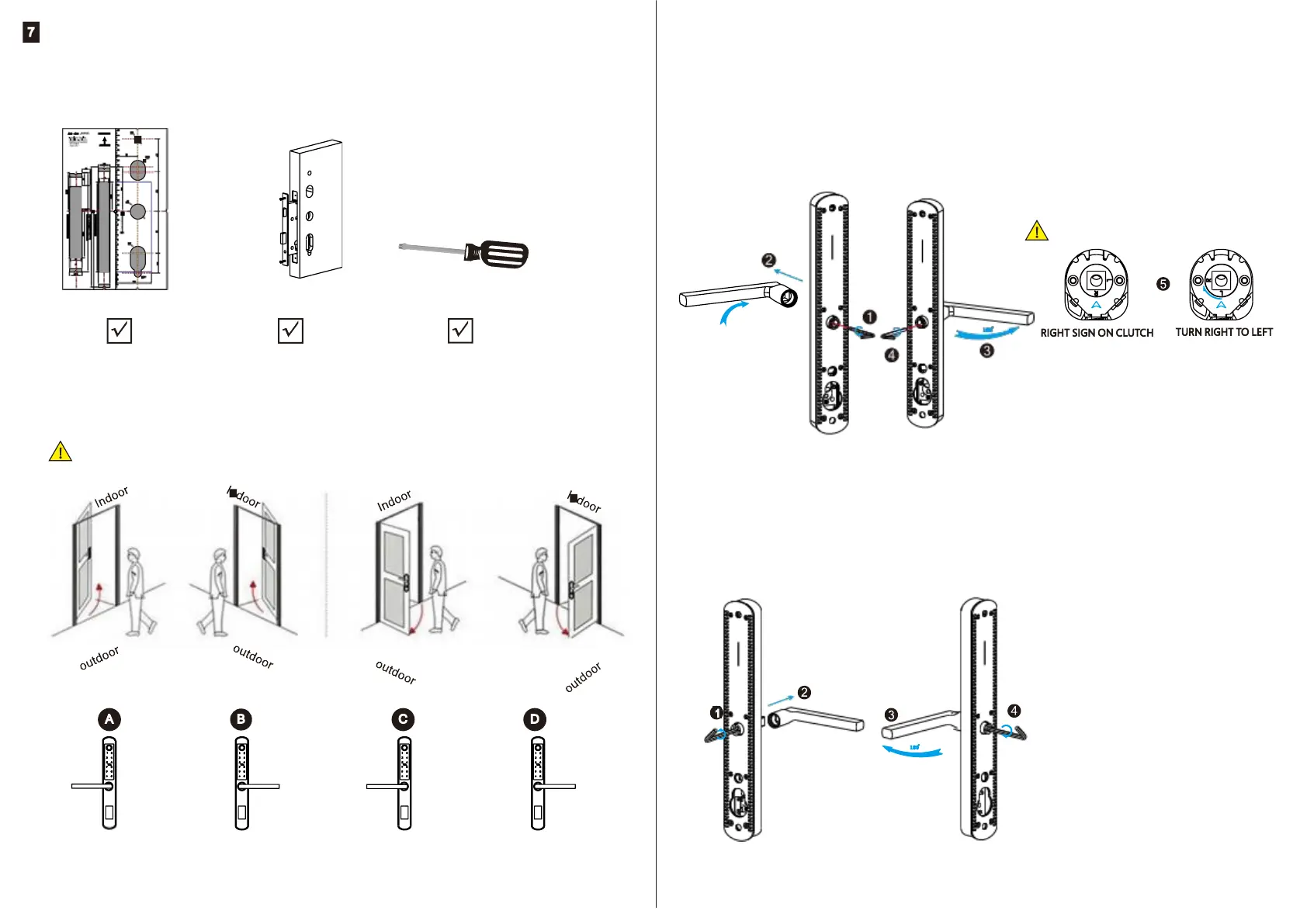

7 . 2 Determining Lever Handing
The hand of the door is determined from the secure side of the door. T he term secure
means the side from which you initially unlock and enter from outside.
Stand outside of the door, choose the left/ right direction with push or pull to unlock .
2. Adjust the Back Handle D irection
2.1 Use the allen key to take off the screw from the handle head .
2.2 Take off the handle .
2 .3 Rotate the handle 180 degree and fix the direction that you need .
2.4 Tighten the screw with the allen key .
2
.5
Adjust the handle if it is too tight
.
R ight P ush
4
7. 3 Change Handle
1 . Adjust the Front Handle Direction
1 . 1 Use the allen key to take off the screw from the handle head .
1.2
Take off the handle
.
1. 3 Rotate the handle 18 0 degree and fix the direction that you need .
1.4
Tighten the screw with the allen key
.
1 . 5
Adjust the clutch direction as the sign on the right.
To Next Page
