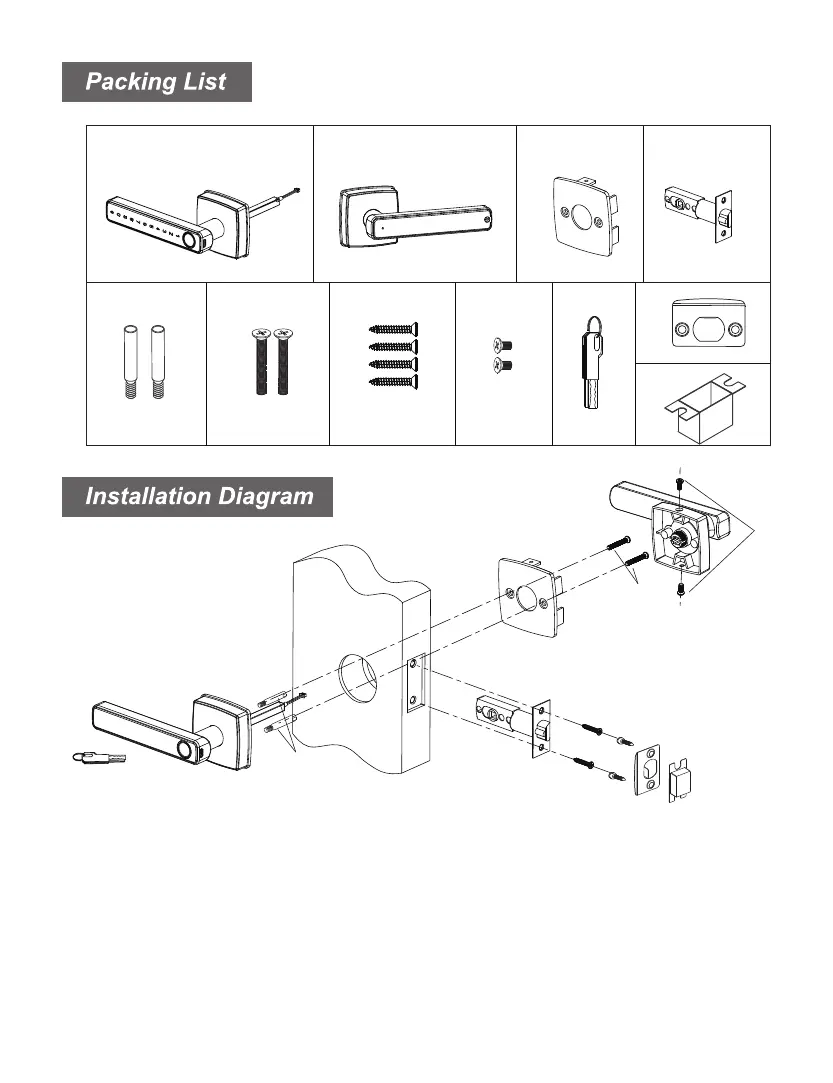

TUYA N1TY - Packing List; Installation Diagram

- 2 -
A DB
GFE H J K
L
C
30mm 25mm 8mm40mm
A
B
D
K
L
E
G
H
F
C
A) Outdoor lock body * 1
B) Indoor lock body * 1
C) Mounting plate * 1
D) Single latch * 1
E) Cylindrical sleeve bolt * 2
F) M4 x 30mm cross flat head bolt * 2
G) M4 x 25mm
cross flat head self-tapping screw * 4
H) M4 x 8mm cross flat head bolt * 2
J) Mechanical key * 2
K) Strike plate * 1
L) Latch holding plastic box * 1
