8 PACKAGING INFORMATION AND PRODUCTION INSTRUCTIONS
8 Packaging Information and Production Instructions
8.1 Mechanical Dimensions

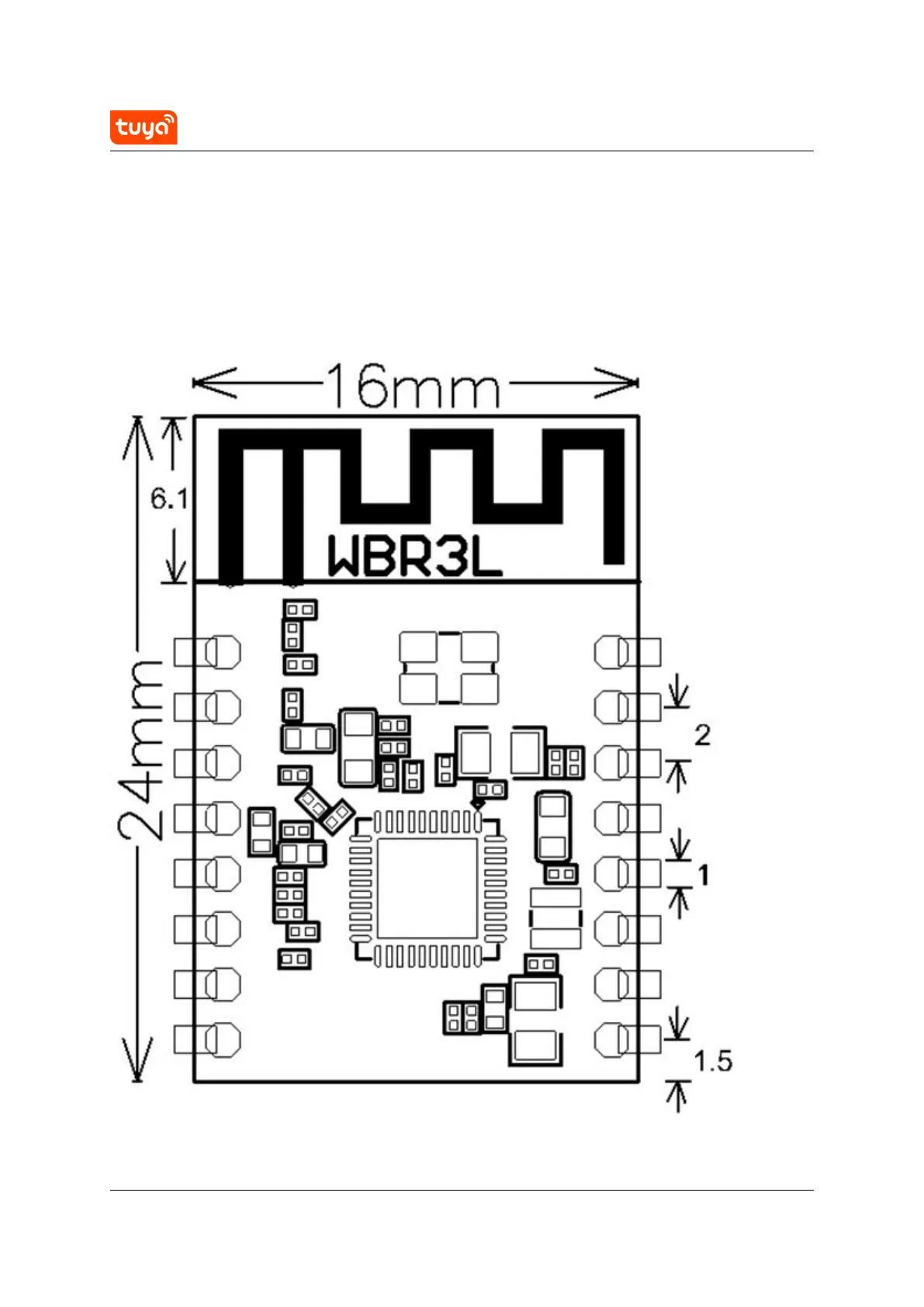

The mechanical dimensions of PCB of WBR3L are 16±0.35 mm (W)×24±0.35 mm (L)
×0.8±0.1 mm (H). The following figure shows mechanical dimensions of WBR3L.
