TVLogic LVM-071W Operator's Manual

7” Multi Format LCD Monitor
11
LVM-071W

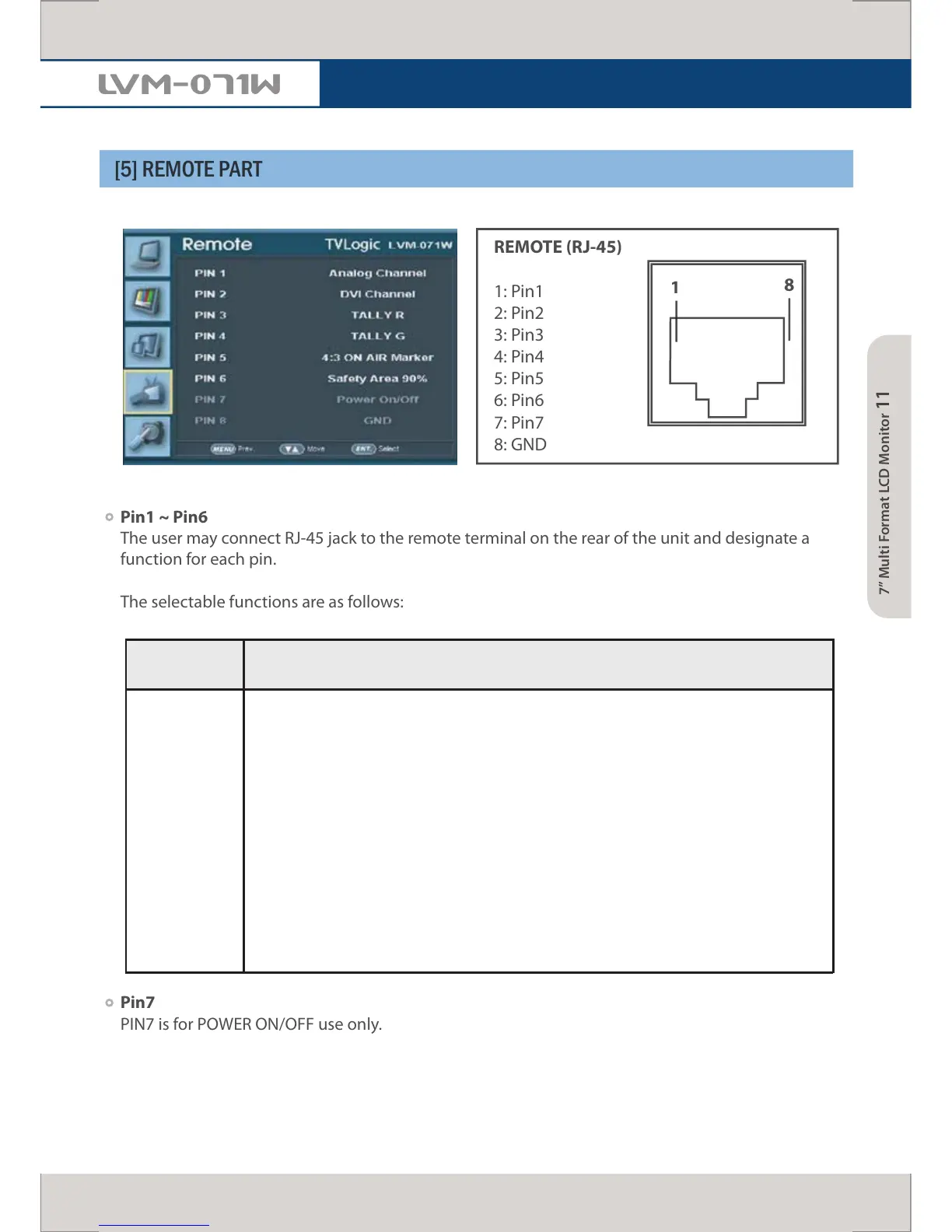

[5] REMOTE PART
Pin1 ~ Pin6
The user may connect RJ-45 jack to the remote terminal on the rear of the unit and designate a
function for each pin.
The selectable functions are as follows:
Pin7
PIN7 is for POWER ON/OFF use only.
Menu Contents
REMOTE (RJ-45)
1: Pin1
2: Pin2
3: Pin3
4: Pin4
5: Pin5
6: Pin6
7: Pin7
8: GND
1
8
ANALOG CHANNEL, DVI CHANNEL, DIGITAL CHANNEL
TALLY RED, TALLY GREEN
BLUE ONLY
UNDERSCAN
ASPECT
HVDELAY
16:9 MARKER, 15:9 MARKER, 14:9 MARKER
13:9 MARKER, 4:3 MARKER, 4:3 ON AIR MARKER
1.85:1 MARKER, 2.35:1 MARKER, 1.85:1 & 4:3 MARKER
CENTER MARKER
SAFETY AREA 80%, SAFETY AREA 88%, SAFETY AREA 90%
SAFETY AREA 93%, SAFETY AREA 100%
Menu
Classication
Settable Values
PIN 1~6
