7” Multi Format LCD Monitor

LVM-071W

Other Functions

LVM-171WG

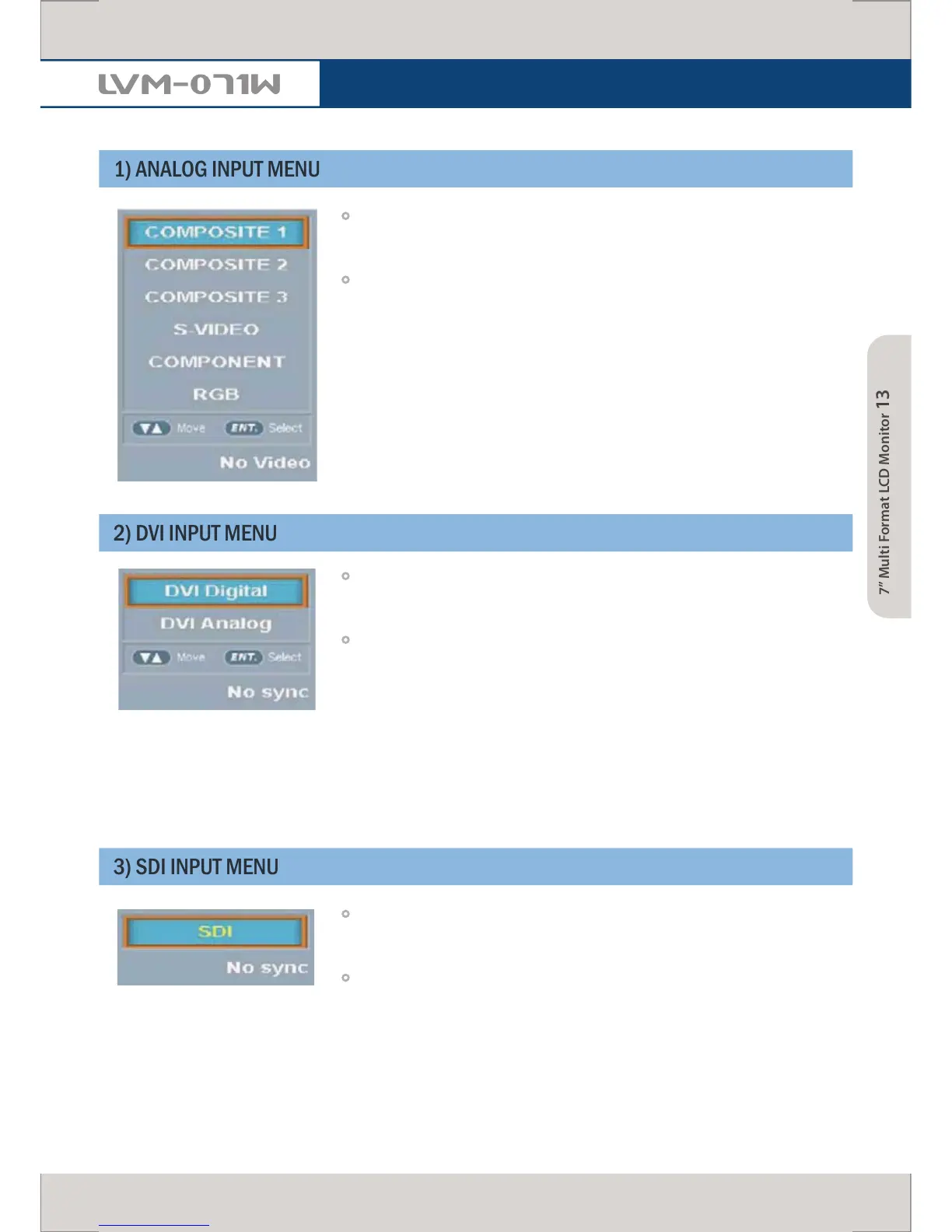

1) ANALOG INPUT MENU

2) DVI INPUT MENU

3) SDI INPUT MENU

LVM-071W Series unit is capable of processing varied ANALOG

Input signals.

Press [ANALOG] button on the front of the monitor and activate

the OSD menu as shown on the left.Select the input you desire

by using the [UP]/[DOWN]button and press the [ENTER] button

to conrm.

#If no image displays after selecting the desired input mode, check

and make sure that your connection is not lose or disconnected.

#Input resolution displays on the bottom of the OSD screen.

LVM-071W Series unit is capable of processing DVI

Digital/Analog input signal.

Press [DVI] button on the front of the monitor and activate the

OSD menu as shown on the left. Select the input you desire by

using the [UP]/[DOWN] Button and press the [ENTER] button to

conrm.

#If no image displays after selecting the desired input mode, check

and make sure that your connection is not lose or disconnected.

#Input resolution displays on the bottom of the OSD screen.

LVM-071W Series unit is capable of processing single SDI Input

signal.

Press [SDI] button on the front of the monitor to select the SDI

input. OSD menu displays as shown on the left.

#If no image displays after selecting the desired input mode, check

and make sure that your connection is not lose or disconnected.

#Input resolution displays on the bottom of the OSD

TVLogic LVM-071W Operator's Manual
