TVLogic LVM-071W Operator's Manual

LVM-071W
7” Multi Format LCD Monitor
12
Menu Contents

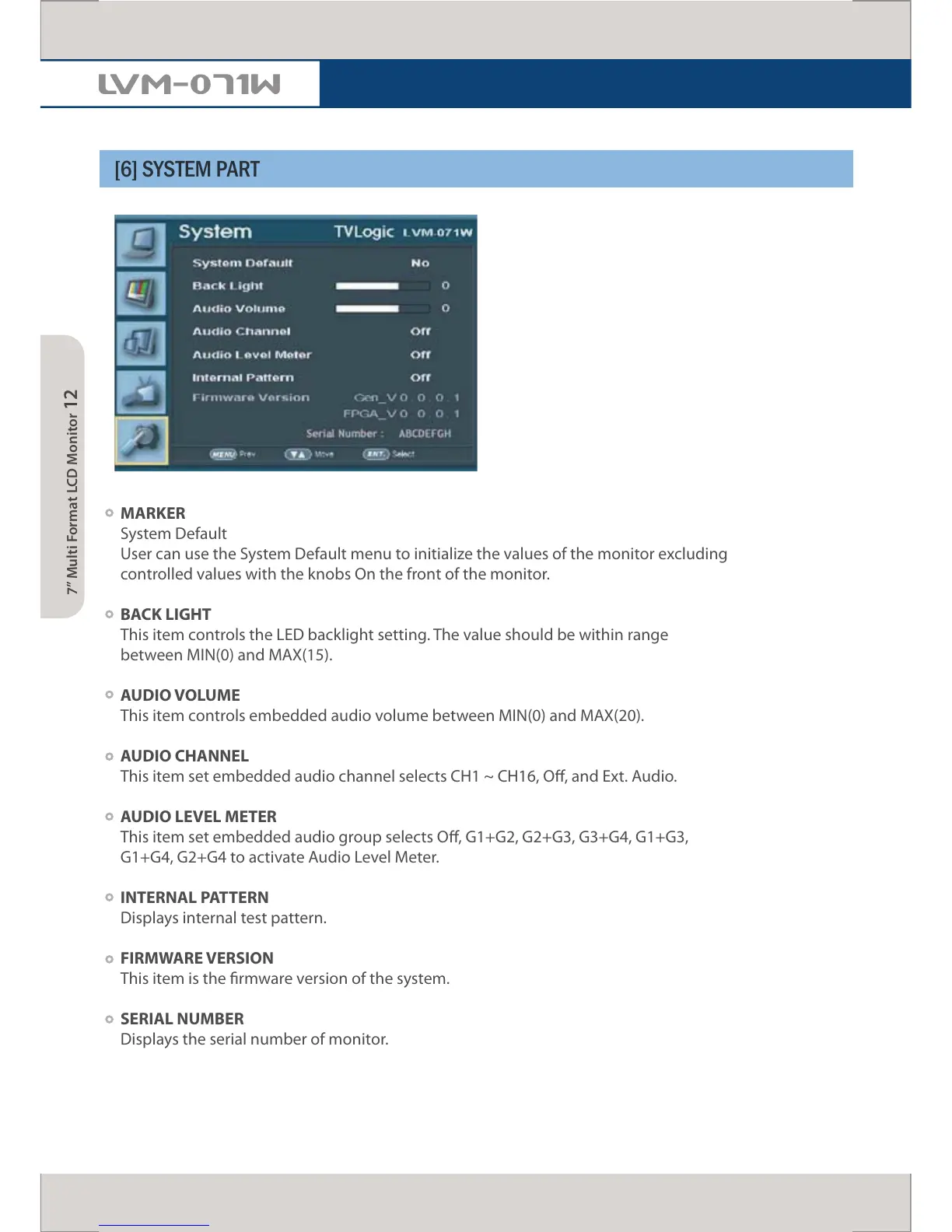

[6] SYSTEM PART
MARKER
System Default
User can use the System Default menu to initialize the values of the monitor excluding
controlled values with the knobs On the front of the monitor.
BACK LIGHT
This item controls the LED backlight setting. The value should be within range
between MIN(0) and MAX(15).
AUDIO VOLUME
This item controls embedded audio volume between MIN(0) and MAX(20).
AUDIO CHANNEL
This item set embedded audio channel selects CH1 ~ CH16, O, and Ext. Audio.
AUDIO LEVEL METER
This item set embedded audio group selects O, G1+G2, G2+G3, G3+G4, G1+G3,
G1+G4, G2+G4 to activate Audio Level Meter.
INTERNAL PATTERN
Displays internal test pattern.
FIRMWARE VERSION
This item is the rmware version of the system.
SERIAL NUMBER
Displays the serial number of monitor.
