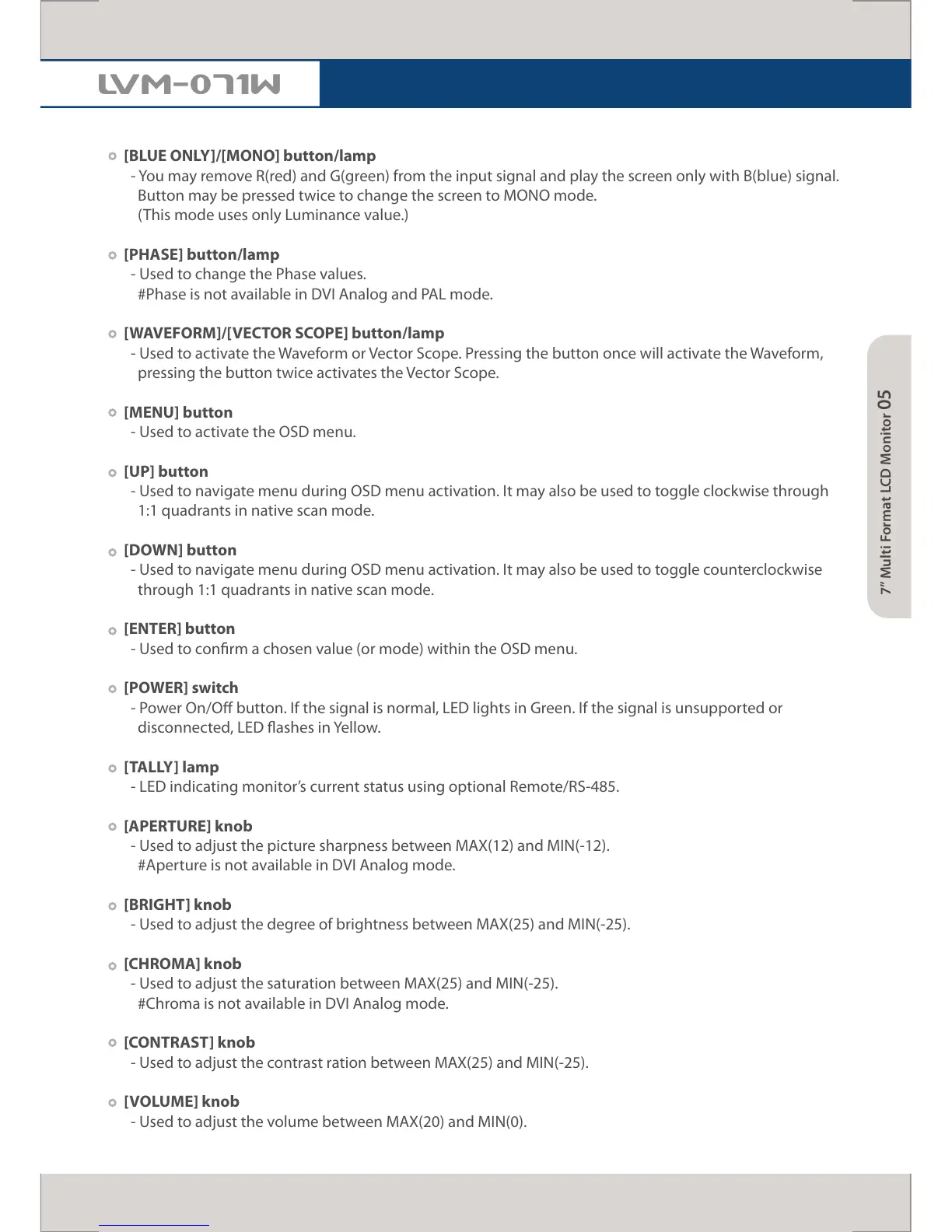

[BLUE ONLY]/[MONO] button/lamp
- You may remove R(red) and G(green) from the input signal and play the screen only with B(blue) signal.
Button may be pressed twice to change the screen to MONO mode.
(This mode uses only Luminance value.)
[PHASE] button/lamp
- Used to change the Phase values.
#Phase is not available in DVI Analog and PAL mode.
[WAVEFORM]/[VECTOR SCOPE] button/lamp
- Used to activate the Waveform or Vector Scope. Pressing the button once will activate the Waveform,
pressing the button twice activates the Vector Scope.
[MENU] button
- Used to activate the OSD menu.
[UP] button
- Used to navigate menu during OSD menu activation. It may also be used to toggle clockwise through
1:1 quadrants in native scan mode.
[DOWN] button
- Used to navigate menu during OSD menu activation. It may also be used to toggle counterclockwise
through 1:1 quadrants in native scan mode.
[ENTER] button
- Used to conrm a chosen value (or mode) within the OSD menu.
[POWER] switch
- Power On/O button. If the signal is normal, LED lights in Green. If the signal is unsupported or
disconnected, LED ashes in Yellow.
[TALLY] lamp
- LED indicating monitor’s current status using optional Remote/RS-485.
[APERTURE] knob
- Used to adjust the picture sharpness between MAX(12) and MIN(-12).
#Aperture is not available in DVI Analog mode.
[BRIGHT] knob
- Used to adjust the degree of brightness between MAX(25) and MIN(-25).
[CHROMA] knob
- Used to adjust the saturation between MAX(25) and MIN(-25).
#Chroma is not available in DVI Analog mode.
[CONTRAST] knob
- Used to adjust the contrast ration between MAX(25) and MIN(-25).
[VOLUME] knob
- Used to adjust the volume between MAX(20) and MIN(0).
