TVLogic LVM-071W Operator's Manual

LVM-071W
7” Multi Format LCD Monitor
06
Name & Function of Each Part
DVI DIGITAL/
DVI ANALOG
SDI-IN
SDI-OUT
CVBS1/B/Pb
CVBS2/G/Y/S-Y
CVBS3/R/Pr/S-C
AUDIO IN
AUDIO OUT
REMOTE
FACTORY PGM
DC IN

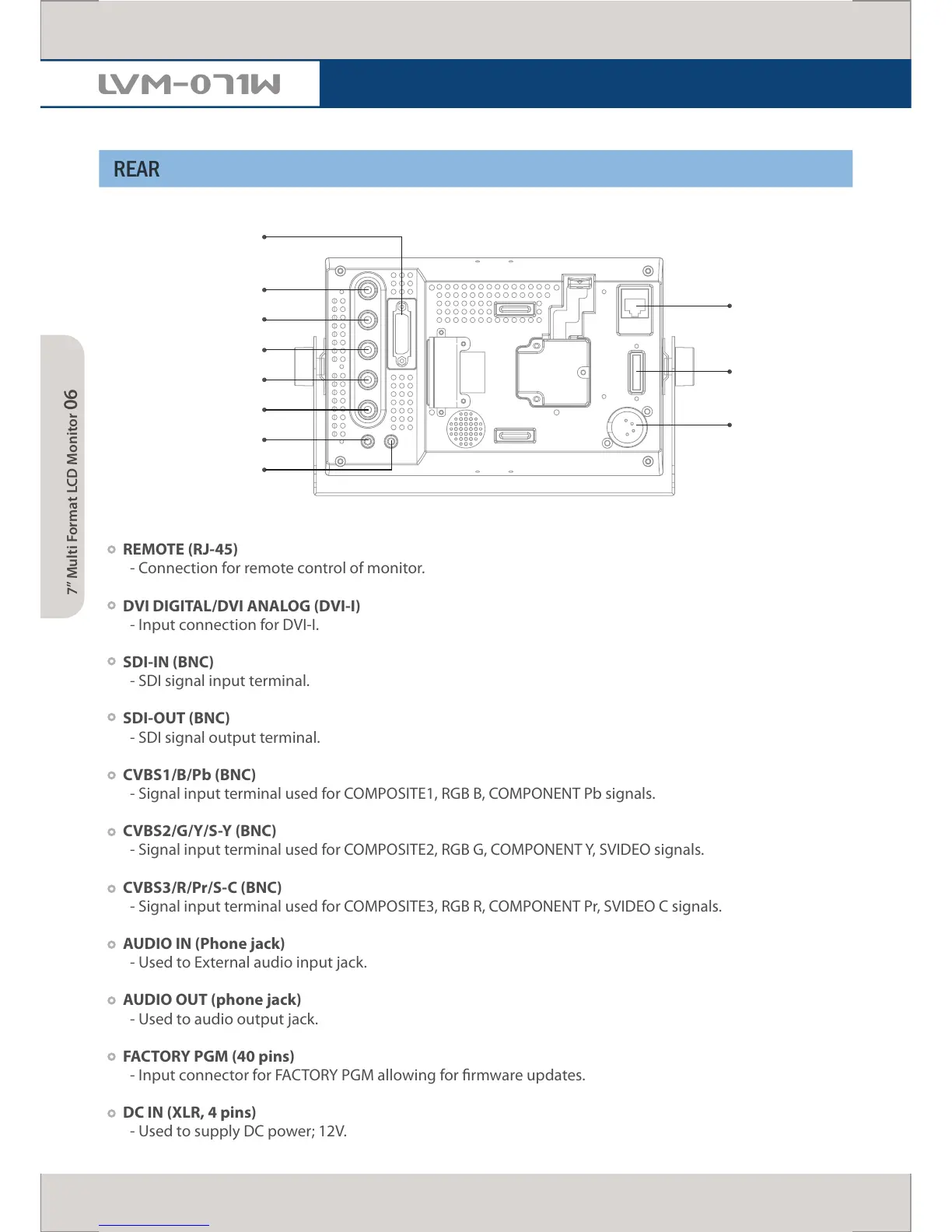

REAR
REMOTE (RJ-45)
- Connection for remote control of monitor.
DVI DIGITAL/DVI ANALOG (DVI-I)
- Input connection for DVI-I.
SDI-IN (BNC)
- SDI signal input terminal.
SDI-OUT (BNC)
- SDI signal output terminal.
CVBS1/B/Pb (BNC)
- Signal input terminal used for COMPOSITE1, RGB B, COMPONENT Pb signals.
CVBS2/G/Y/S-Y (BNC)
- Signal input terminal used for COMPOSITE2, RGB G, COMPONENT Y, SVIDEO signals.
CVBS3/R/Pr/S-C (BNC)
- Signal input terminal used for COMPOSITE3, RGB R, COMPONENT Pr, SVIDEO C signals.
AUDIO IN (Phone jack)
- Used to External audio input jack.
AUDIO OUT (phone jack)
- Used to audio output jack.
FACTORY PGM (40 pins)
- Input connector for FACTORY PGM allowing for rmware updates.
DC IN (XLR, 4 pins)
- Used to supply DC power; 12V.
