DVI-DIG Video mode supports the following input signals.
୔GWhen using DVI function, User must select Underscan button.
୔G If not using a native widescreen mode the image can be viewed in widescreen
aspect by pressing the aspect button.

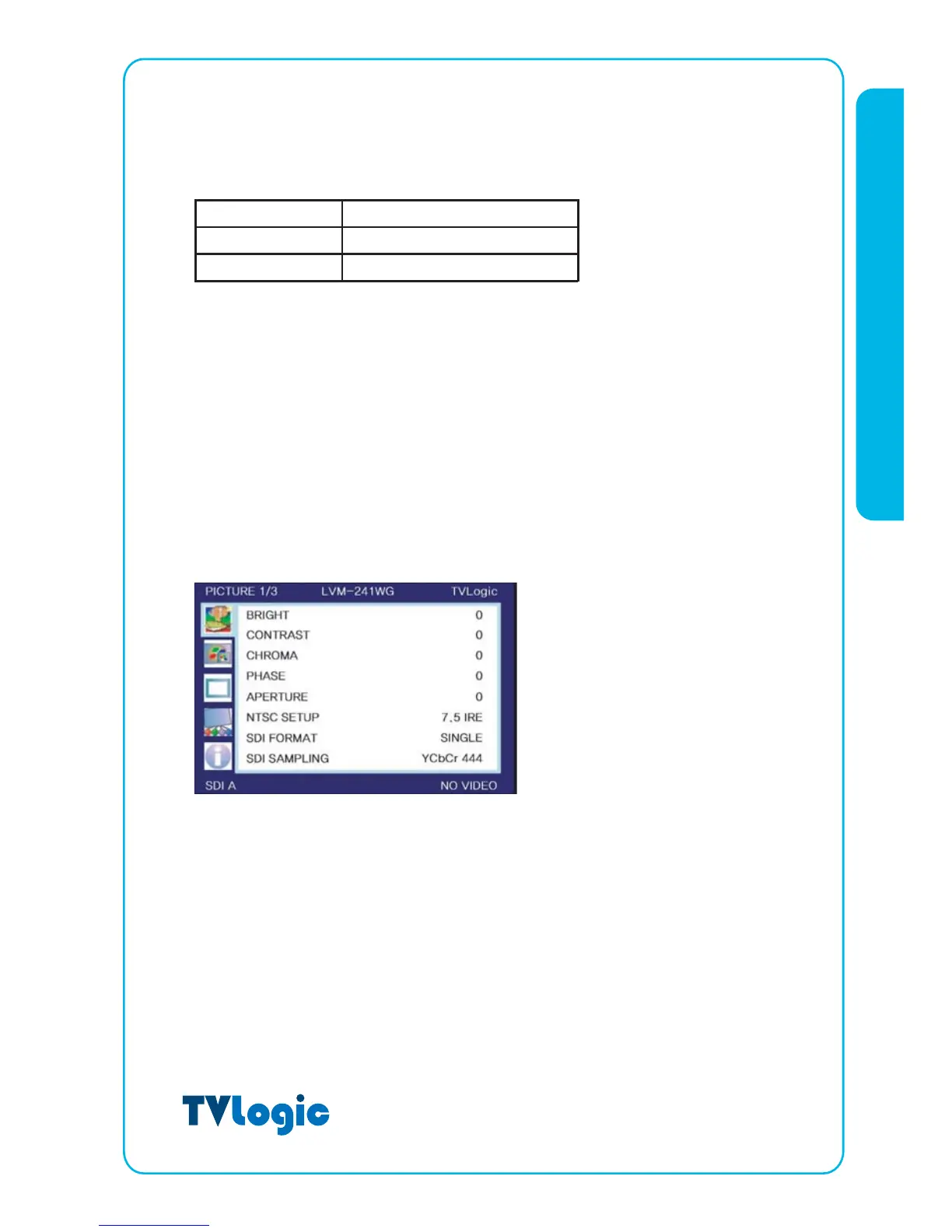

[4] DUAL LINK Mode
This product provides a DUAL LINK mode. If user wants to view dual link signal, select
signal format on picture menu. DUAL LINK Mode can be setup by following these
steps:
1. Press the MENU button to bring up the OSD menu.
2. Display Picture menu and press ENTER button and then the PICTURE menu will be
activated.
3. Select DUAL option in SDI FORMAT.
4. Select YCbCr 444, YCbCr 422 or RGB option in SDI SAMPLING.
SMPTE-274M 1080i (60 / 59.94)
SMPTE-296M 720p (60 / 59.94)
SMPTE-125M 480i (59.94), 480p(59.94)
