26
05 Menu Operations

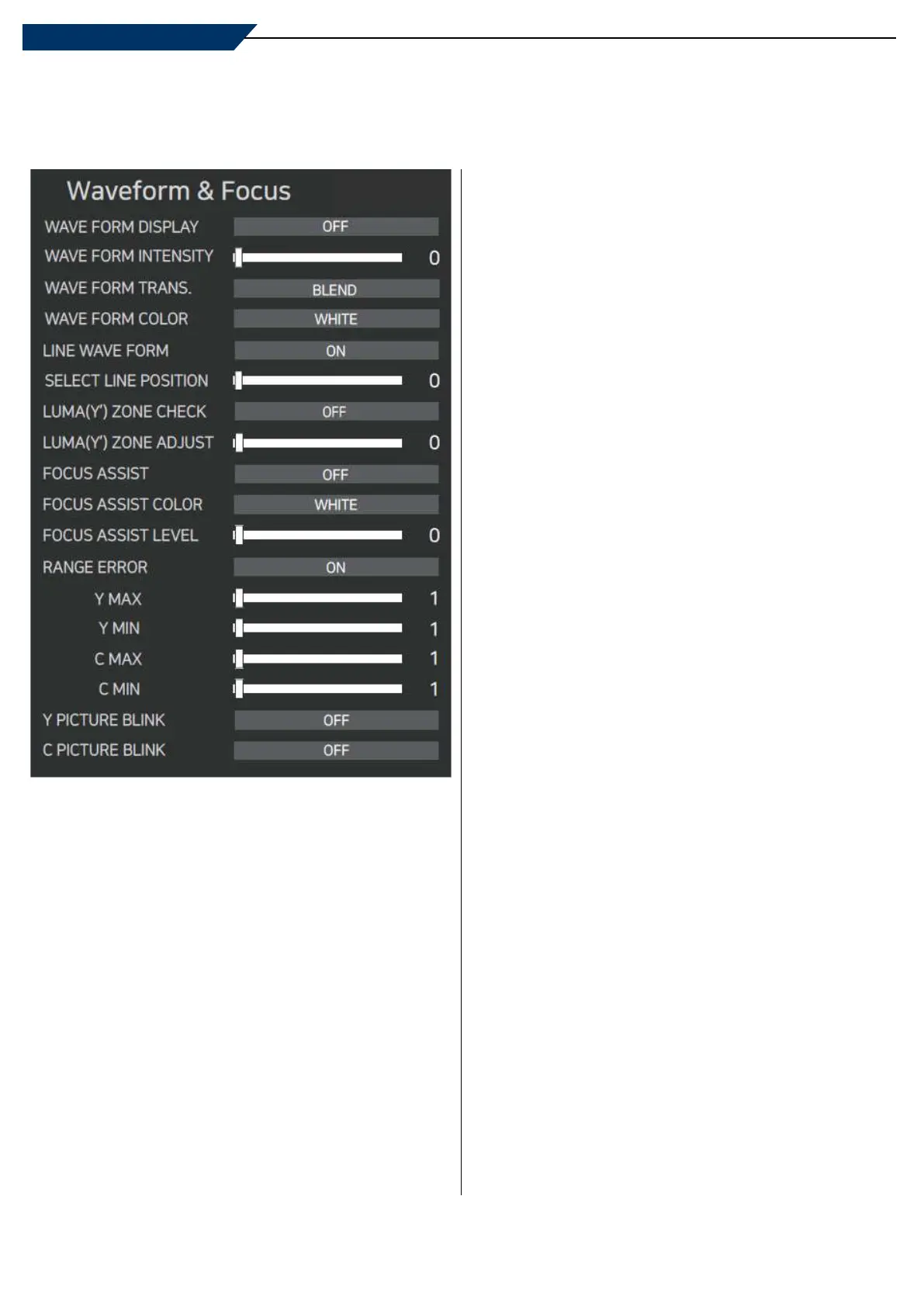

[7] WAVEFORM & FOCUS
WAVEFORM DISPLAY
- This function sets the mode of Waveform and Vector
Scope. Available options are different depending on the
Input signal.
- When the input signal is YCbCr, the available modes are
[OFF], [WAVEFORM], [VECTOR SCOPE], [WAVEFORM
WIDE], [WAVEFORM_YCbCr], [WAVEFORM RGB],
[WAVE VECTOR].
WAVEFORM INTENSITY
- Controls the brightness of Waveform and Vector Scope
display.
- Available values are between [0] ~ [63]. The higher the
value is, the brighter the waveform is displayed.
WAVEFORM TRANS. (Waveform Transparency)
- Controls the transparency level of the Waveform/Vector.
- Available options are [OPAQUE] and [BLEND].
If the Waveform/Vector overlaps the main OSD even
when the option is set to [OPAQUE], it will be
automatically changed to [BLEND] mode. When the
main OSD disappears or the Waveform/Vector doesn’t
overlap the main OSD, it automatically becomes the
[OPAQUE] mode.
WAVEFORM COLOR
- This item selects the color of Waveform.
- Available options are [GREEN] and [WHITE].
LINE WAVEFORM
- When this function is set [ON], the data of the selected
line is only displayed on the [WAVEFORM] and [VECTOR
SCOPE].
SELECT LINE POSITION
- Used to select the specific horizontal line for Waveform
and Vector Scope.
- This menu is available when [LINE WAVEFORM] is
activated.
- If you want to adjust a desired horizontal line, you can
select [WAVEFORM] or other modes in [WAVE FORM
DISPLAY] menu and then select the specific horizontal
line using the control Knob.
- The adjustable range varies according to the resolution
of the input signal. (SDI signal)
• PAL: Min. 1, Max. 625
• NTSC: Min. 1, Max. 525
• 720p: Min. 1, Max. 750
• 1080i: Min. 1, Max. 1125
• 1080p: Min. 1, Max. 1125
Multi Format LCD Monitor
