05 Menu Operations

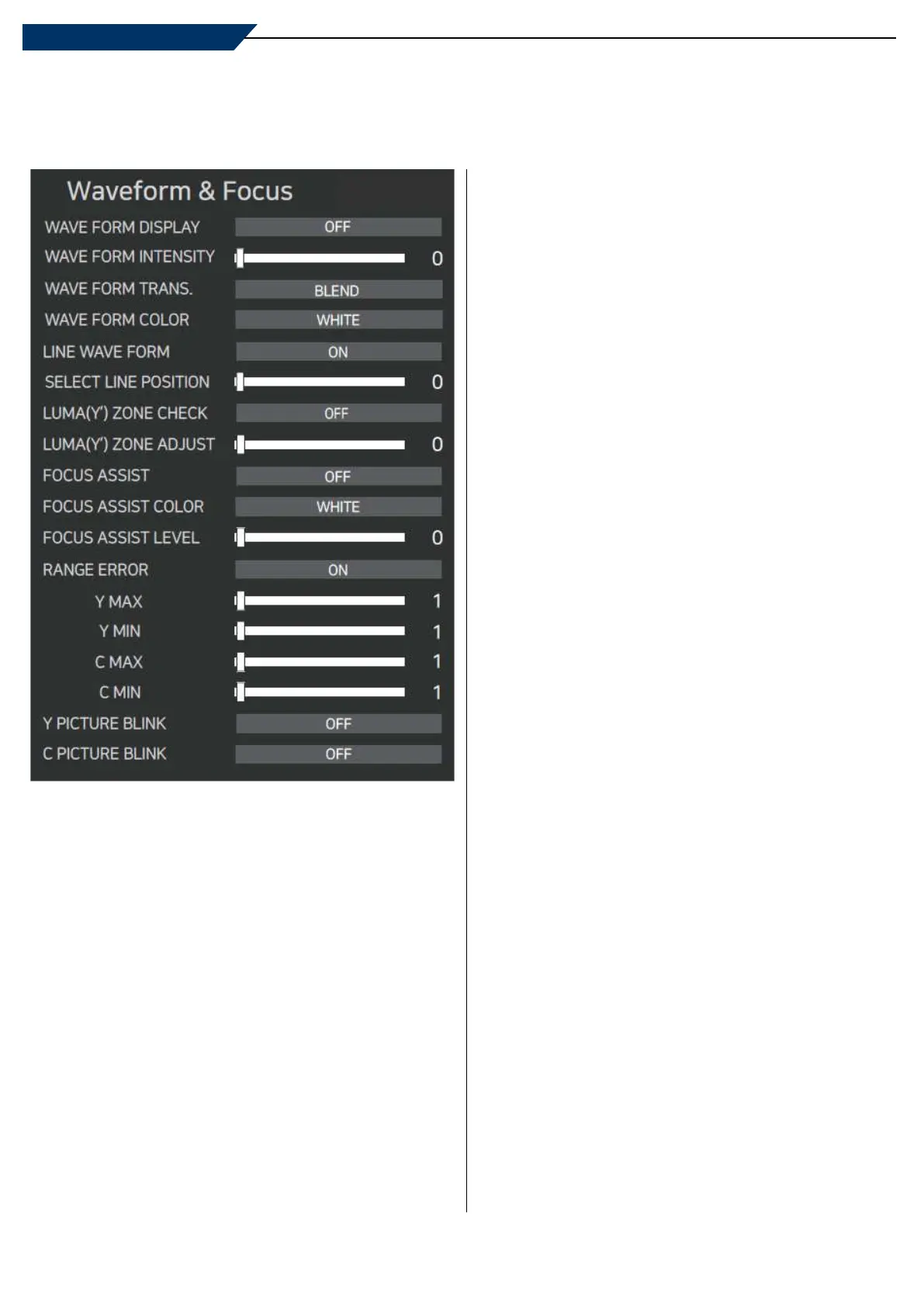

[7] WAVEFORM & FOCUS
 RANGE ERROR
- Used to set whether or not to activate [Y MAX], [Y MIN],
[C MAX], [C MIN], [Y PICTURE BLINK] and [C PICTURE
BLINK] functions.
- The values which are set in [Y MAX], [Y MIN], [C MAX],
[C MIN] menu are indicated on the Waveform set
in [WAVE FORM DISPLAY] menu.
- If [Y PICTURE BLINK] or [C PICTURE BLINK] is enabled,
the section of image that exceeds the selected values of
[Y MAX], [Y MIN], [C MAX] and [C MIN] shall blink.
- RANGE ERROR function doesn’t support the RGB signals.
 Y MAX
- Used to set the maximum luma(Y’) level.
- Available range is from [0] to [254].
- Pixels with values exceeding the maximum Y’ level blink
in the screen and are displayed in red on the Waveform.
 Y MIN
- Used to set the minimum luma(Y’) level.
- Available range is from [0] to [254].
- Pixels with values below the minimum Y’ level blink in
the screen and are displayed in red on the Waveform.
 C MAX
- Used to set the maximum chroma(C’) level.
- Available range is from [0] to [254].
- Pixels with values exceeding the maximum C’ level blink
in the screen and are displayed in red on the Waveform.
 C MIN
- Used to set the minimum chroma(C’) level.
- Available range is from [0] to [254].
- Pixels with values below the minimum C’ level blink in
the screen and are displayed in red on the Waveform.
 Y PICTURE BLINK
- Used to trigger selections of image that exceed
[Y MAX] and [Y MIN] to blink.
 C PICTURE BLINK
- Used to trigger selections of image that exceed
[C MAX] and [C MIN] to blink.
