[4] LINE SELECT (WAVEFORM / VECTOR SCOPE)
Used to select a specific horizontal line for WAVEFORM and VECTOR SCOPE.
- This function works when the [LINE WAVEFORM] is activated.
- To activate this function, go to [Waveform & Focus] > [WAVE FORM DISPLAY] and select [WAVEFORM] or other
modes. And then, set [LINE WAVE FORM] ON and adjust the horizontal line in [SELECT LINE POSITION] using the
Knob button.
- The selected line is indicated in White on the screen.
- Adjustment range varies according to the resolution of the input SDI signal.
• PAL: 0 ~ 625
• NTSC: 0 ~ 525
• 720p: 0 ~ 750
• 1080i/p: 0 ~ 1125
- Adjustment range for HDMI signal varies according to the output resolution of the signal.

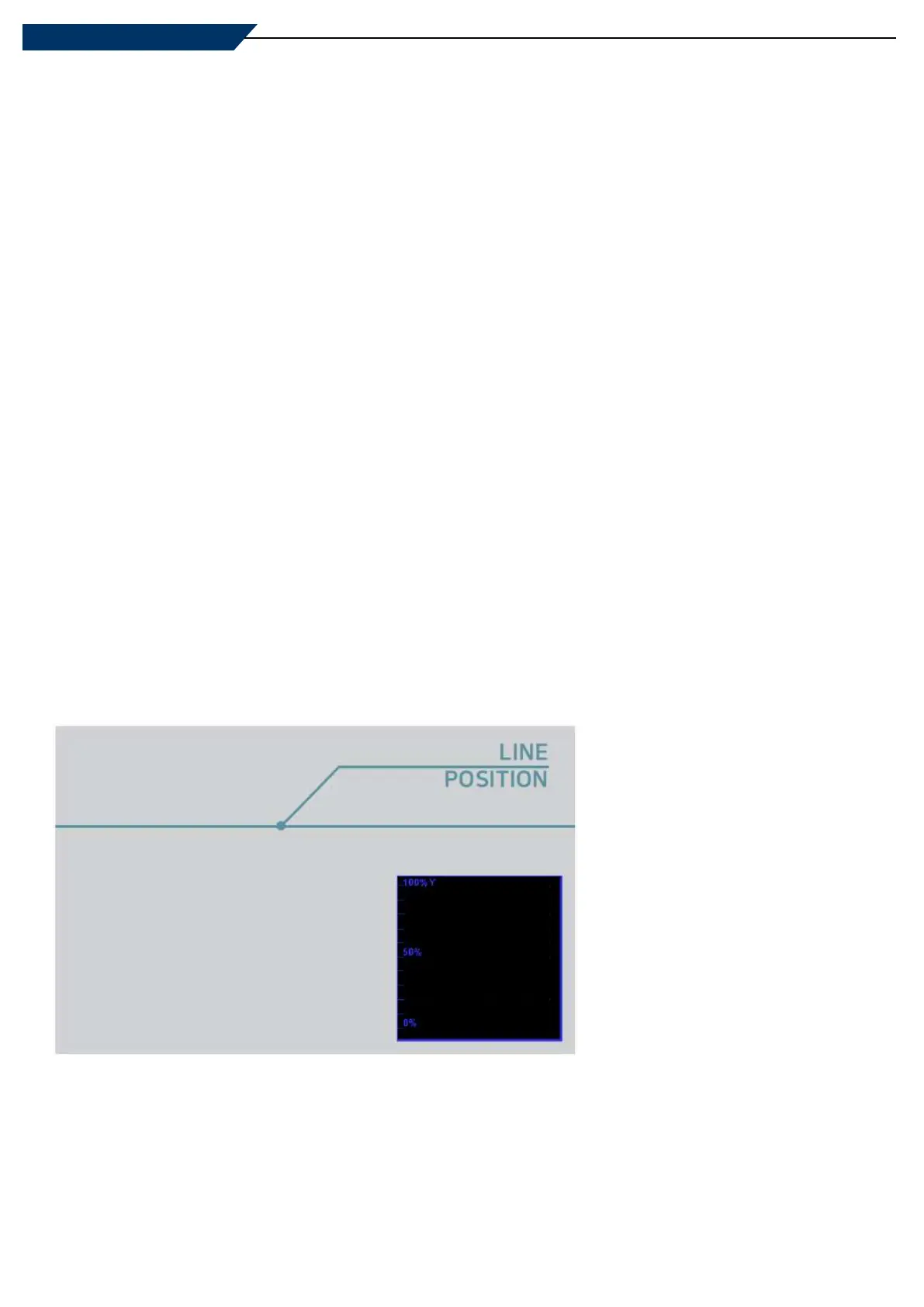

- The selected line is indicated on the screen as follows.
