TVLogic LVM-246W User Manual

24 Multi Format LCD Monitor
● UMD CHARACTER
- The item is used to customize the characters
for UMD.
- Alphabets, numbers and special symbols are
available.
- Maximum of 8 characters.
● UMD character color
- The item sets the color of the UMD letter.
(White,Red,Green,Yellow,Cyan,Magenta)
- The function only functions only when
[D-UMD tally type] setting is [Default],[User
color], [BG. Color],[User tally] or [User BG.].
● UMD B.G. trans.
- The item sets the transparency of UMD letter
box.
- The selectable items are
[Opaque],[50%],[85%] and [100%].
● UMD size
- The item sets the font size of UMD and the
size of UMD letter box.
- The selectable items are [Small] and [Large].

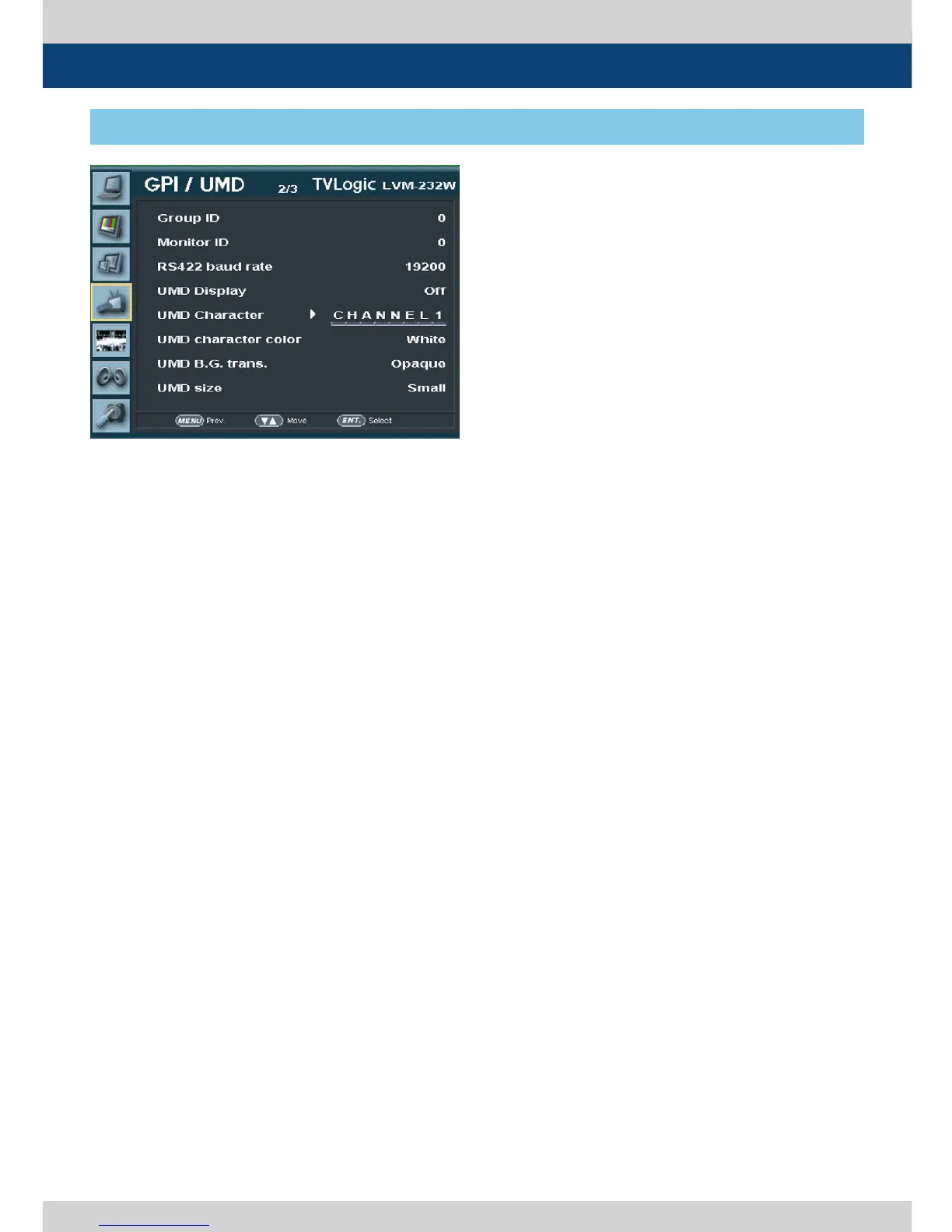

[4] GPI / UMD
5. Menu Operations
● Group ID
- The item is used to control many monitors
in each group, when control the monitors by
the protocol Tvlogic provides with
RS-422/485 communication or network.
● Monitor ID
- The item sets the ID of each monitor for the
TVLogic control protocol or DYNAMIC UMD
using RS-422/485 communication.
● RS422 baud rate
- The items sets the monitor control program
that TVLogic provides and Baud rate.
● UMD DISPLAY
- The item sets UMD, ANC and DYNAMIC UMD.
- UMD : Displays user customized characters
on screen.
- ANC: Displays characters embedded in SDI
signal.
*
D-UMD(S-8C) : Displays tally signal and 8
letters that are input by TSL protocol (V3.1)
on the screen.
*
D-UMD(S-16C) : Displays tally signal and 16
letters that are input by TSL protocol (V3.1)
on the screen.
*
D-UMD(D-8C) : Displays a pair of tally signal
and a pair of 8 letters that are input by TSL
protocol (V3.1) on the screen.
