TVLogic R-5T User Manual

LCD Rack Mountable Monitor 24
• GROUP ID
- Used to group the monitors to control the
monitors by group when the monitors are
controlled by using RS-422 communication.
• MONITOR ID
- Used to set the ID of each monitor for using
RS-422 communication.
- Available values are between 0,2,4 ~ 98.
• RS-422 BAUD
- Used to set the Baud Rate for the RS-422
communication.
- Available values are 9600, 14400, 19200, 38400,
and 115200.
• PIN
- Used to set the REMOTE function.
- The user may designate a function for each pin
and each pin’s default setting is as follows.
PIN 1 : HDMI CHANNEL
PIN 2 : SDI_A CHANNEL
PIN 3 : SDI_B CHANNEL
PIN 4 : TALLY R
PIN 5: TALLY G
PIN 6: Blue Only
- PIN 7 is POWER ON/OFF use, and PIN 8 is GND.
- The selectable values for PIN 1~ PIN 6 are as
follows :

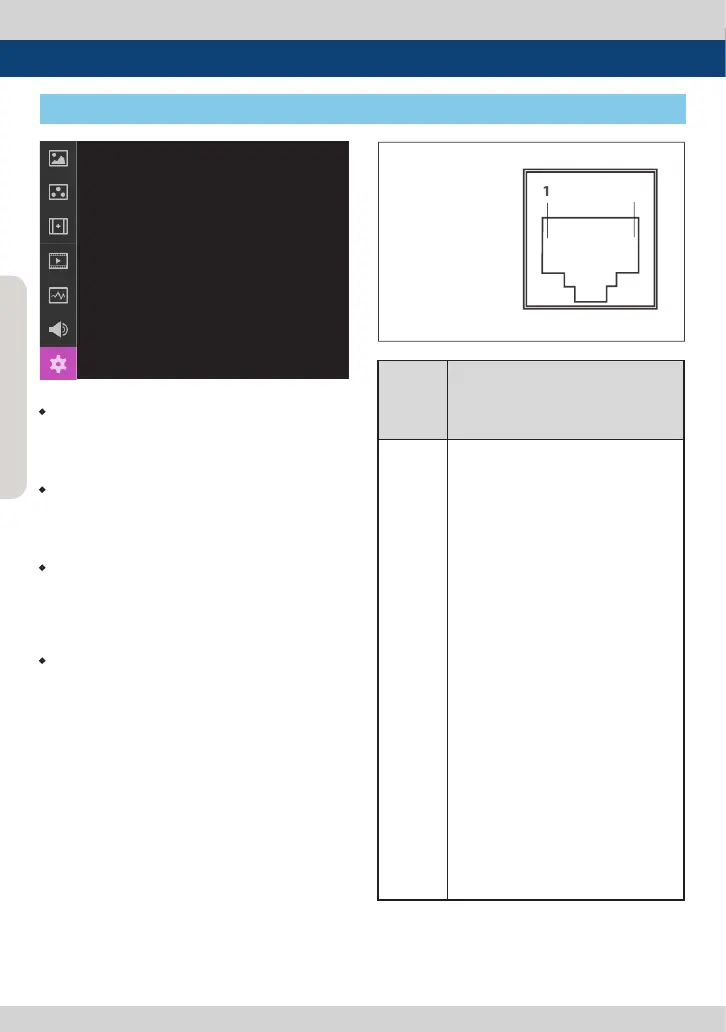

[7] SYSTEM / GPI / UMD
5. Menu Operations
SYSTEM / GPI / UMD R-5T
GROUP ID
MONITOR ID
RS-422 BAUD
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
0
0
0
NONE
NONE
NONE
NONE
NONE
NONE
POWER ON/OFF
GND
PAGE(2/3)
REM
O
TE (
R
J
-45
)
1:
P
in1
2
:
P
in2
3:
P
i
n
3
4:
P
in4
5: P
i
n5
6:
P
i
n
6
7:
P
in7
8
:
G
ND
1
8
Menu
Classi-
cation
Settable Values
PIN
1~6
NONE
HDMI CHANNEL
SDI-A/B CHANNEL
TALLY RED
TALLY GREEN
BLUE ONLY
MONO, ASPECT
HVDELAY
16:9 MARKER
15:9 MARKER
14:9 MARKER
13:9 MARKER
4:3 MARKER
4:3 ON AIR MARKER
1.85:1 MARKER
2.35:1 MARKER
1.85:1 & 4:3 MARKER
CENTER MARKER
SAFETY AREA 80%
SAFETY AREA 88%
SAFETY AREA 90%
SAFETY AREA 93%
SAFETY AREA 100%
