TVLogic R-5T User Manual

LCD Rack Mountable Monitor 7

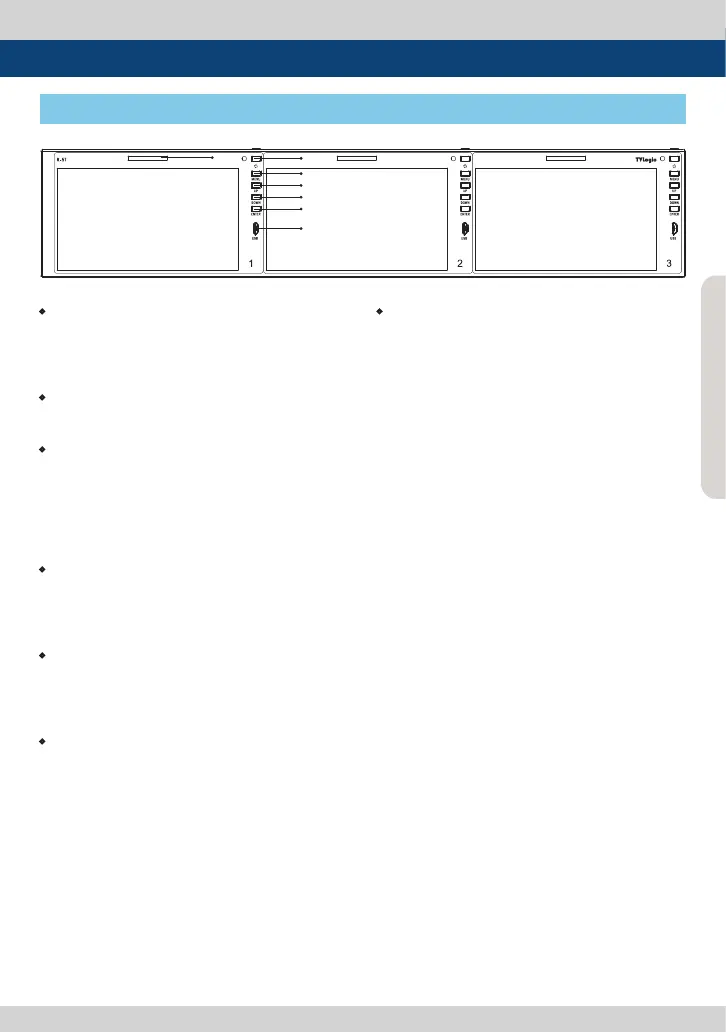

3. Controls & Functions
FRONT
TALLY
POWER
MENU
UP
DOWN
ENTER
USB
• [TALLY]
- Tally lamp that can be toggled in green or red
using the REMOTE(RS-422) port or TVLogic’s
control program(Observer).
• [POWER]
- Used to turn the power on and o.
• [MENU]
- Used to activate the OSD menu.
- When the OSD menu is activated, press the
MENU button to exit from the menu.
- Press the MENU button more than 2 seconds,
input select menu will activated.(SDI, HDMI)
• [UP]
- Used to move within the menu when the OSD
menu is activated and is also used to increase
the value of selected feature.
• [DOWN]
- Used to move within the menu when the OSD
menu is activated and is also used to decrease
the value of selected feature.
• [ENTER]
- Used to select the feature of main menu and
the sub menus.
- When the OSD menu is deactivated, press
the ENTER button longer to activate the
menus in order of : [VOLUME]-[BRIGHTNESS]-
[CONTRAST]-[CHROMA]-[SHAPNESS] -
[PEAKING BOOST] After the function is
activated, press the [DOWN]/[UP] button to
adjust the values.
• [USB]
- Use the Micro B Type USB. The OTG gender
is required when using a USB Memory
Stick.
- Used to upgrade the rmware using a USB
Memory Stick or calibrate the monitor’s
color temperature using the TVLogic’s color
calibration tool.
