TVLogic R-5T User Manual

LCD Rack Mountable Monitor 8

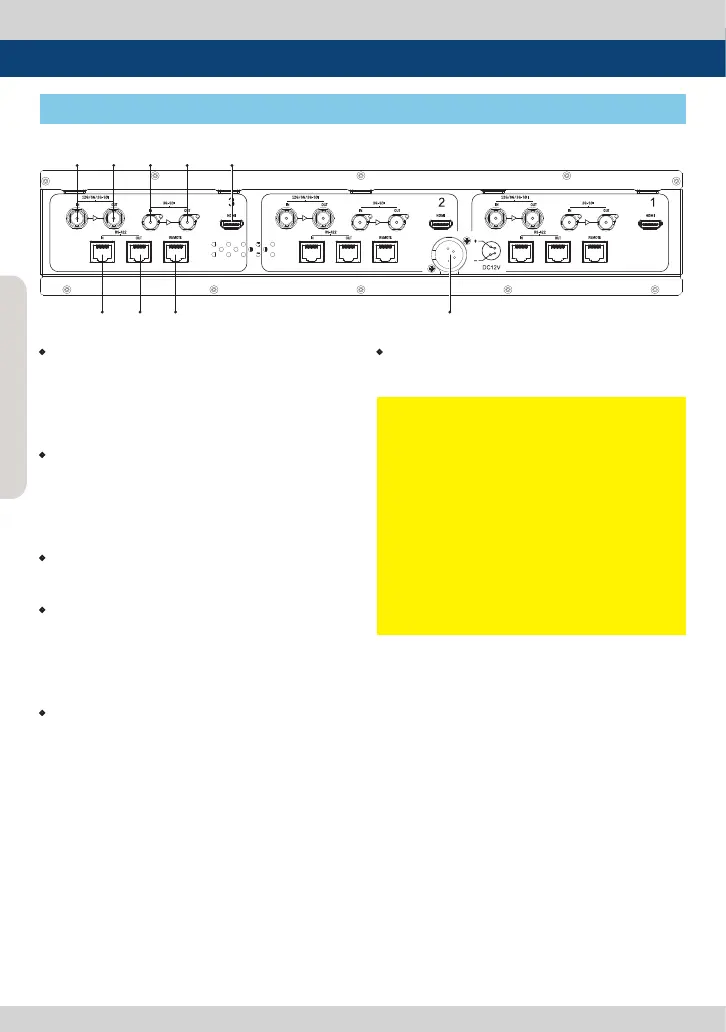

3. Controls & Functions
REAR
• 12G/6G/3G [SDI IN/OUT] (BNC)
- Signal input/output terminals for 12G/6G/3G/
HD/SD SDI signal.
- Outputs the SDI signal input from the [SDI IN]
terminal to [SDI OUT] terminal.
• 3G [SDI IN/OUT] (BNC)
- Signal input/output terminals for 3G/HD/SD
SDI signal.
- Outputs the SDI signal input from the [SDI IN]
terminal to [SDI OUT] terminal.
• [HDMI IN] (HDMI)
- Signal input terminals for HDMI signal.
• [REMOTE] (RS-422)
- Provides connection to control equipment
(parallel switch) for external monitor control.
- Features of the each pin can be changed in the
[MARKER] section of the OSD menu.
• [RS-422 IN/OUT] (RS-422)
- Used to control the Dynamic UMD function
with the TSL3.1 protocol.
• DC IN
-12V DC
RS-422 IN RS-422 OUT REMOTE DC IN
12G/6G/3G
SDI IN
12G/6G/3G
SDI OUT
3G-SDI
IN
3G-SDI
OUT
HDMI
<WARNING!!>
When using the product make sure
to ground, whenever possible, before
connecting the input signal cable in order to
prevent any possible damage to the product
or connected devices. The damage may
include signal noise, malfunction of main
board or display panel. And the connected
devices such as camera or video source player
may also be inuenced through signal cable.
Please check if the AC power source and
the power extender or power distributor is
grounded.
