RP 3200 STAR User’s Manual
19
9-2. Auto Cutter Specifications
(1) Cutting Frequency Max. 30 cuts per minute
(2) Thickness of paper 0.06 ~ 0.09mm
(3) Cutter Life 1.5 million cuttings
(if the paper thickness is between 65 and100µm)
9-3. Interface
RS232C Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface
Ethernet Interface(10Mbps)
9-4. Electrical Characteristics
(1) Input Voltage DC 24V ± 10%
(2) Current Consumption Operating: Approx. 1.5 A (at ASC∥ printing)
Peak : Approx. 10 A
(at print duty 100%, For 10 seconds or less)
Stand-by : Approx. 0.03 A

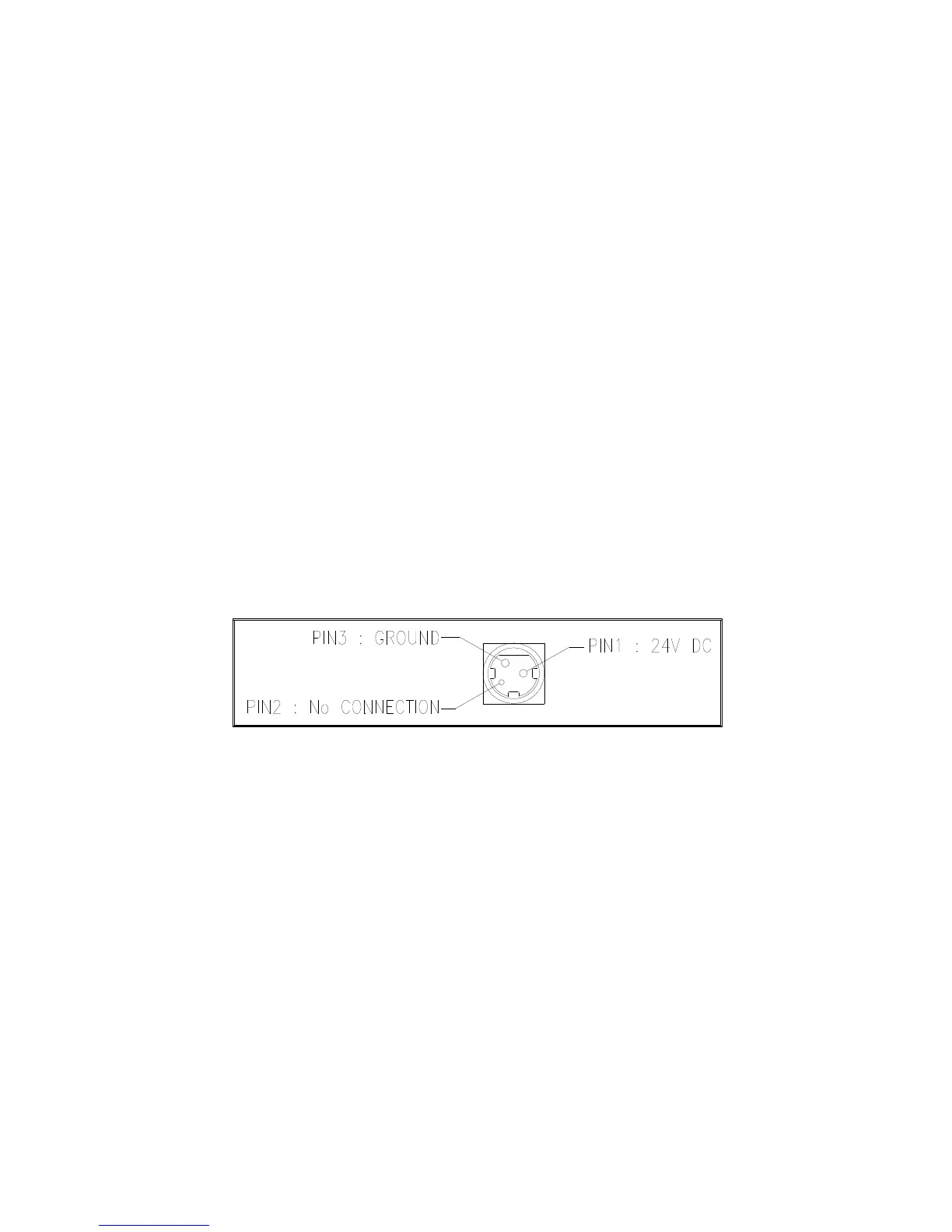

(3) Power Connector
