TVS Rockz - Chain Adjustment

3. Pull out the axle and take out the wheel
assy. Take out the spacer from rear brake
panel.
4. Separate the brake panel from the wheel
assy.
5. Separate the drum sprocket and the spacer
from the rear wheel assembly and take out
the rear wheel complete.
6. Reverse the above steps to reassemble the
rear wheel.
7. Adjust the chain after reassembly.

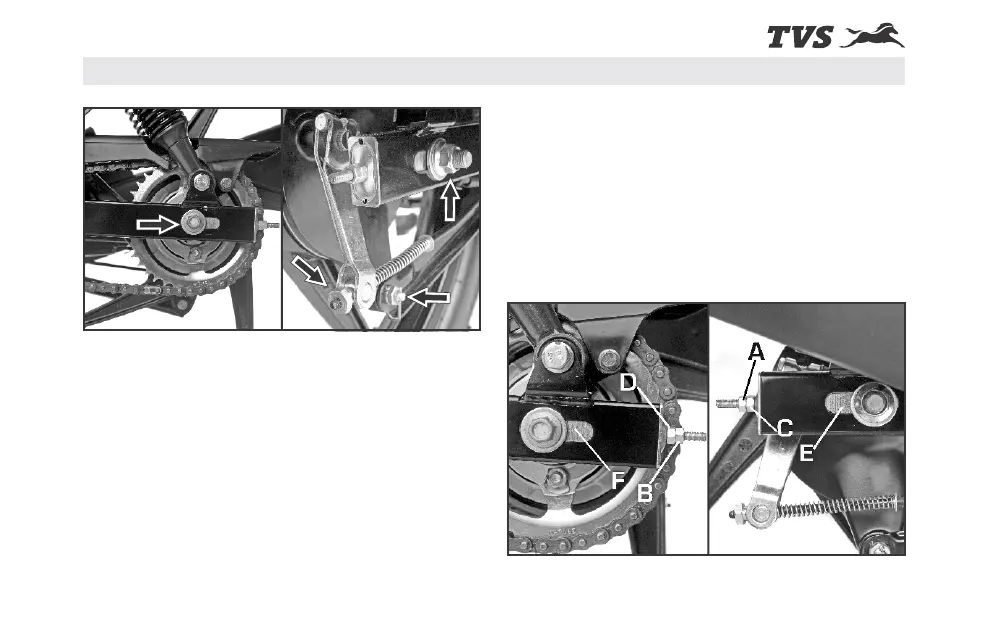

Chain adjustment
1. Loosen the rear wheel axle nut.
2. Loosen the lock nut (A&B) first and adjust
the chain adjusting nuts (C&D) on both L
MAINTENANCE
61
