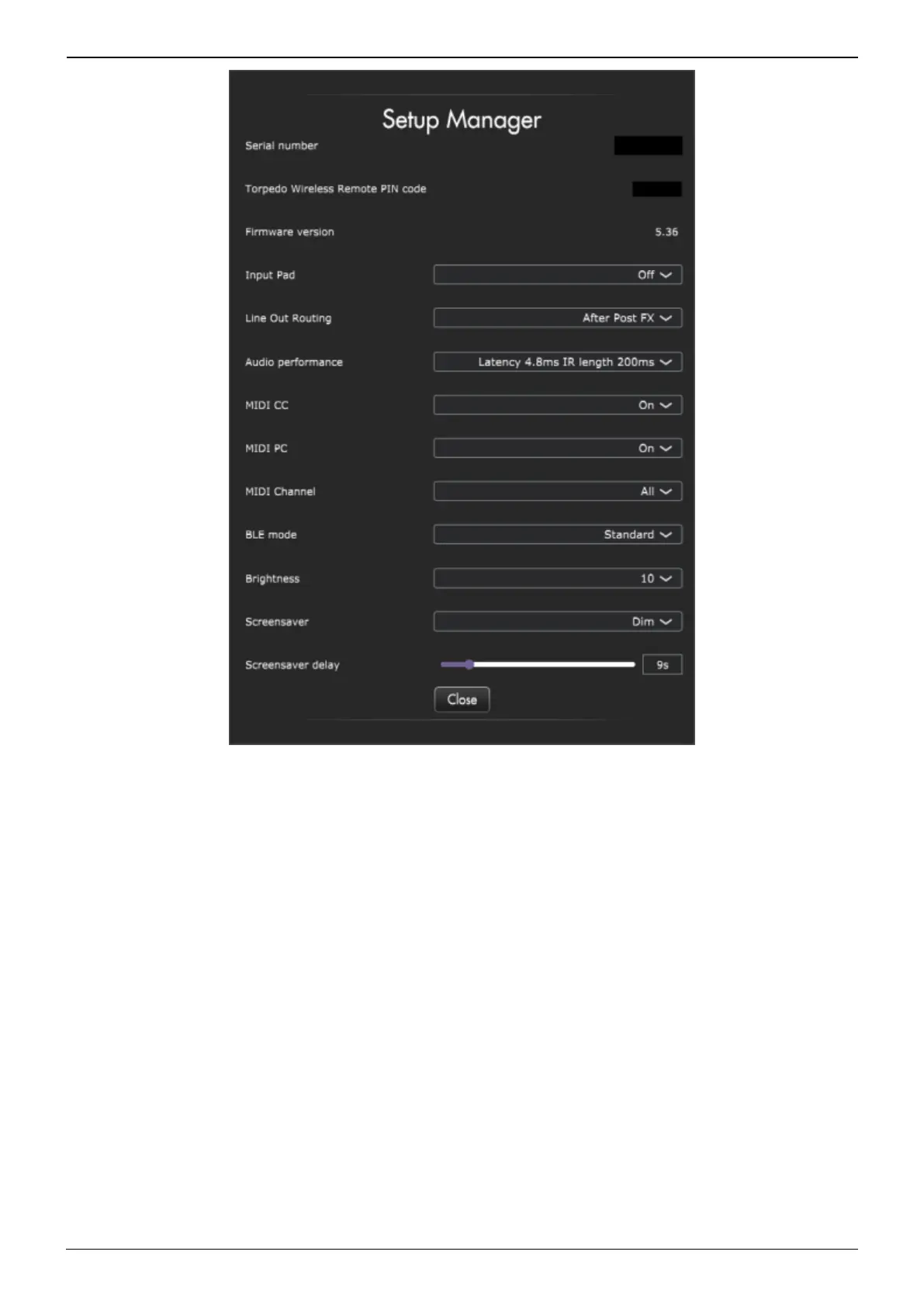

In the SETUP window, access core information and the global setting preferences for OPUS. These
settings are global and will impact all presets; as such they are not specific to one preset or saved per
preset.
1. Product Information
The SETUP manager shows the serial number of the pedal, the pin code (TORPEDO WIRELESS REMOTE
PIN CODE) used to pair OPUS with your mobile device and the firmware version installed on the
device.
2. Input Pad
The INPUT PAD is set to Off by default. It is engineered to reduce the input level of the source audio
before reaching OPUS’ audio DSP. The INPUT PAD is a technical corrective tool and not a creative tool,
attenuating the signal by 10dB.
Before instantiating the INPUT PAD, it is important to first set the 3-way IN LEVEL switch to match the
To Next Page
