TWO TREES TTC 450 - X-axis Installation - Second Step

14
6. X-axis Installation – Second Step
Required parts:
• 1× X-axis Assembly
• 4× M5X15 Screws
• 2,0 Hexagonal Wrench
• 3,0 Hexagonal Wrench

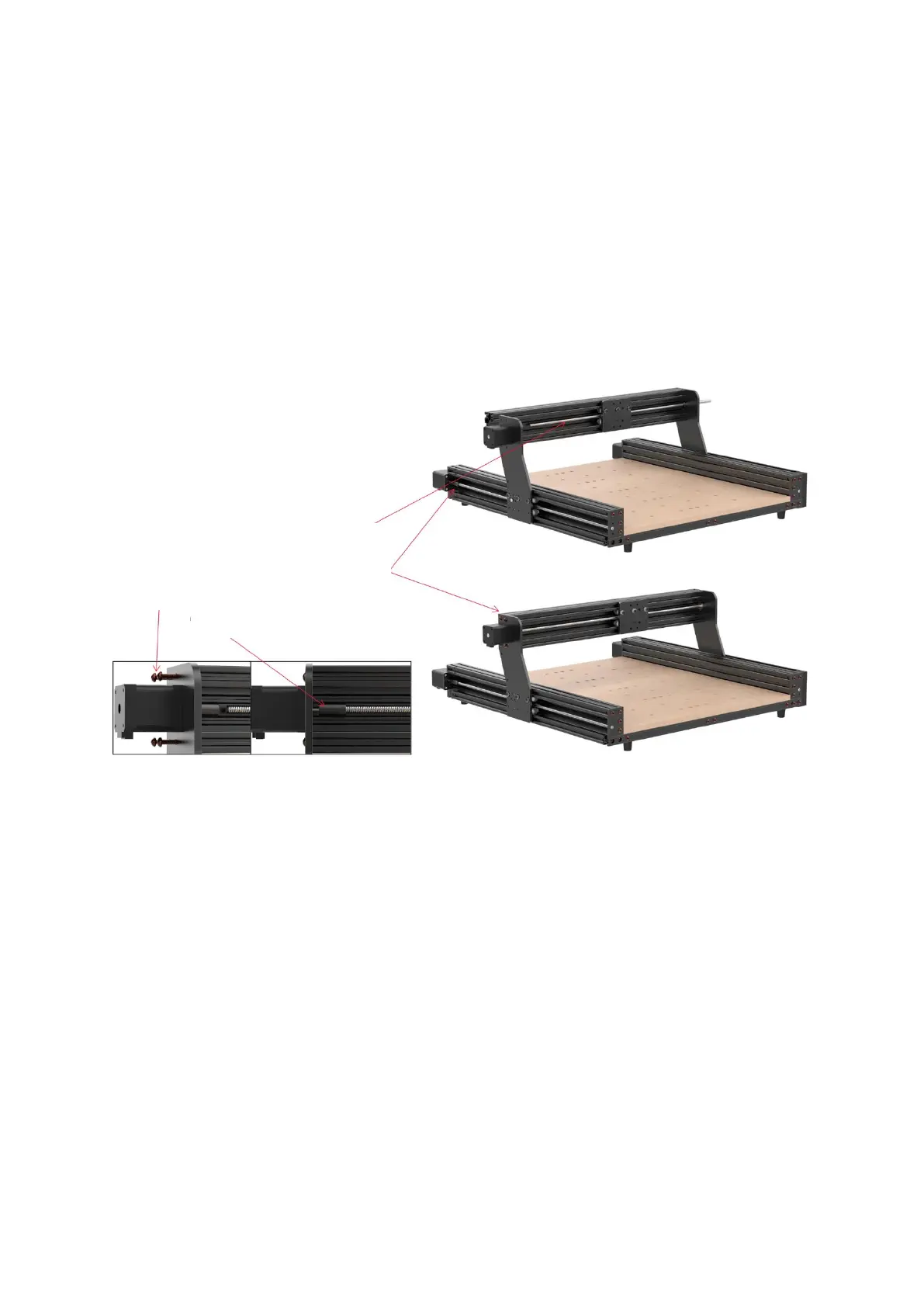

1. Slide the X-axis carriage towards the left to reveal the screw by approximately 5 cm.
2. Rotate the left Y-axis manually to align the left and right Y-axes.
3. Secure the right side of the X-axis profile using an M5X15 screw.
4. Shift the X-axis carriage to the right, insert the screw into the coupling, and grip the
screw using the headless hexagon thread.
1.
2.
3.
4.
