TWO TREES TTC 450 - X-axis Limit Installation

16
8. X-axis Limit Installation
Required parts:
• 1× X-axis Limit Switch
• 2× M5X15 Screws
• 3,0 Hexagonal Wrench

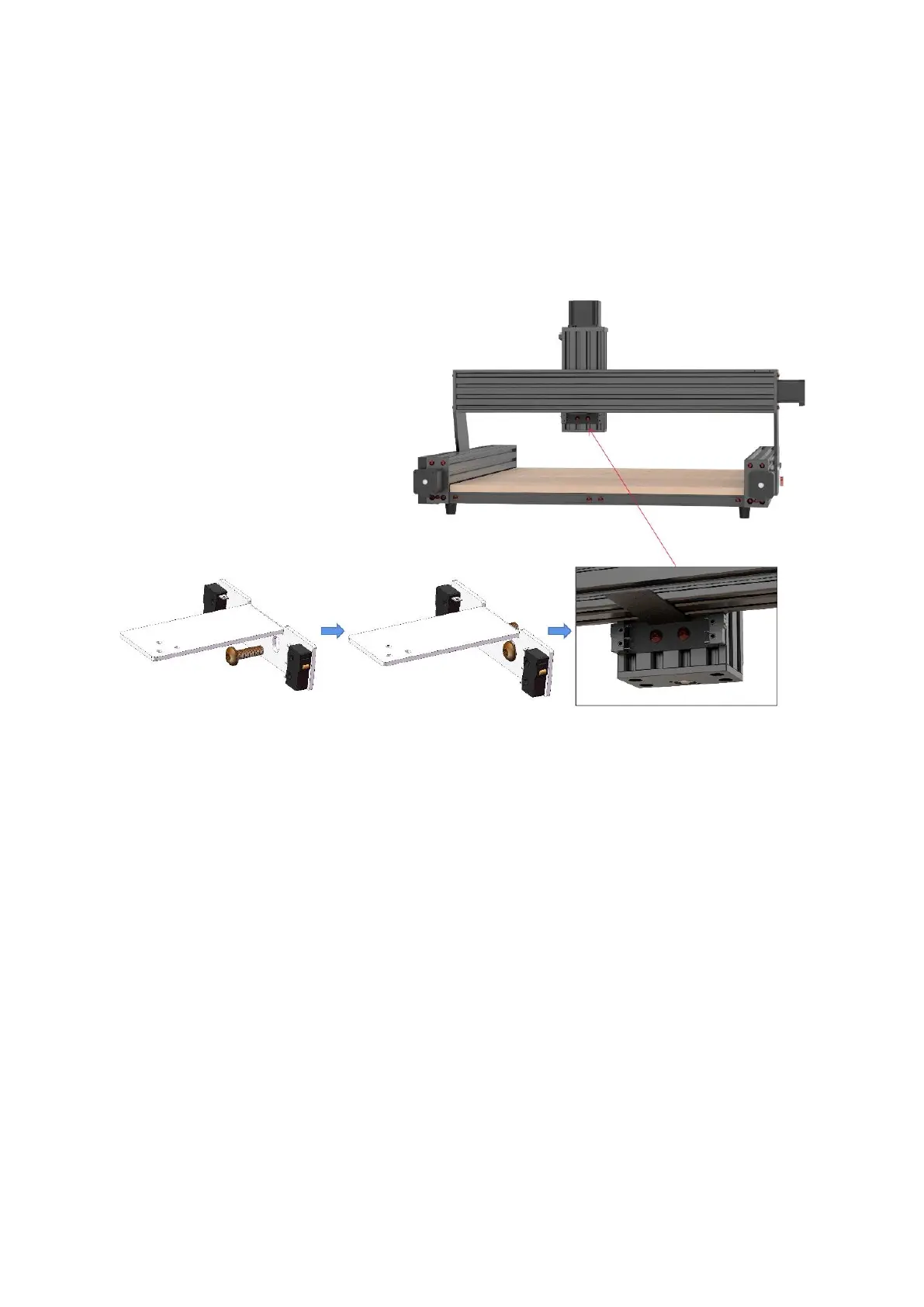

Thread the M5X6 screw through the X limit fixing plate and into the T-nut.
Place it within the profile slot located at the rear of the Z-axis and proceed to tighten it.
