13. Y-axis Guard and Drag Chain Installation
Required parts:
• 1× M3X5 Screw
• 2× Cuphead M3X40 Screws
• 1× Left Y-axis Guard
• 2,0 Hexagonal Wrench
• 2,5 Hexagonal Wrench

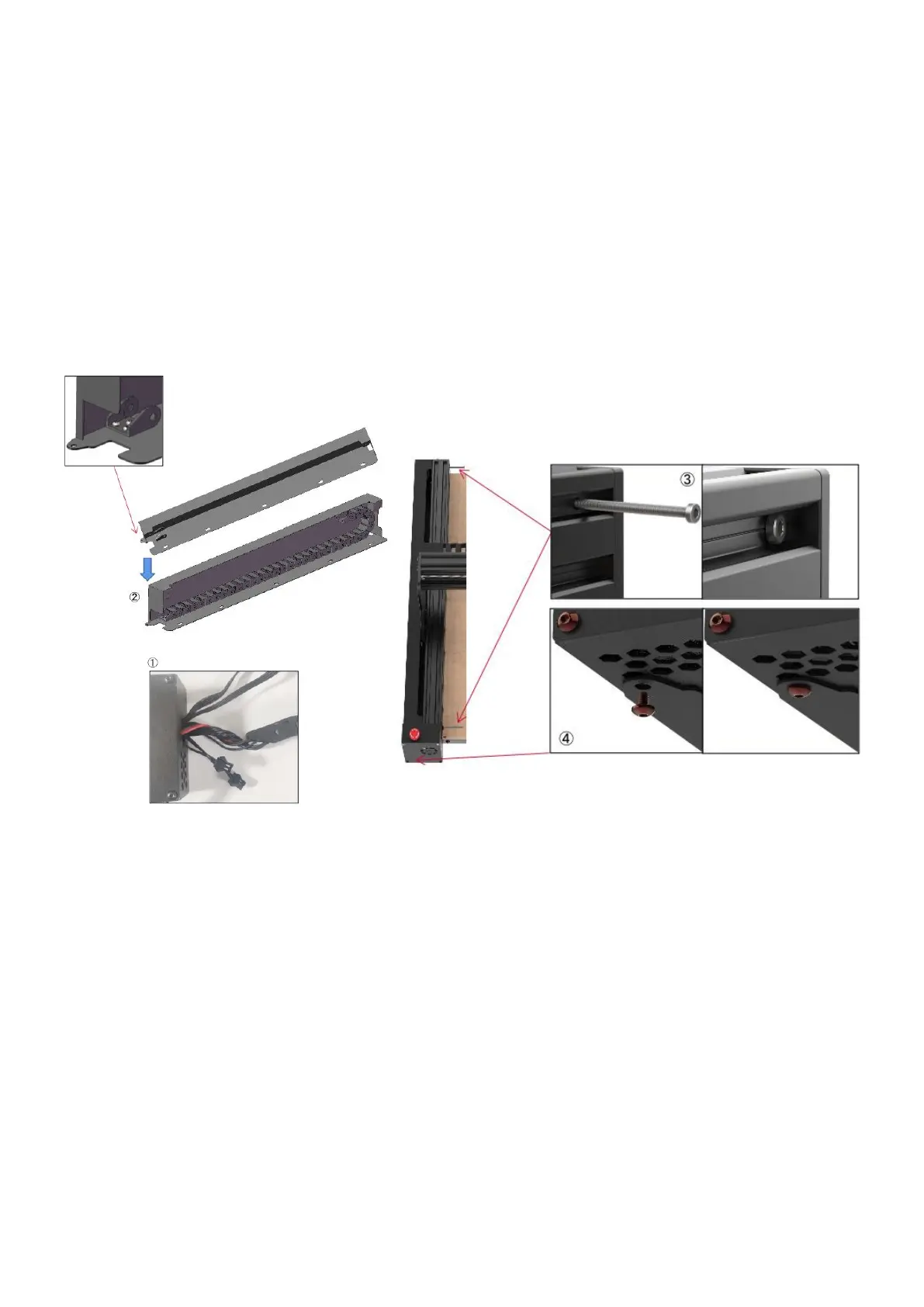

1. Begin by connecting the first Y-axis limit switch to the terminals on the control box
following the specified wireless sequence requirements.
2. Attach one end of the drag chain to the left Y-axis guard plate by snapping it in place.
3. Secure the M3X40 screws by locking them through the profile.
4. Use M3X5 screws to fasten the control box and the guard plate together.
